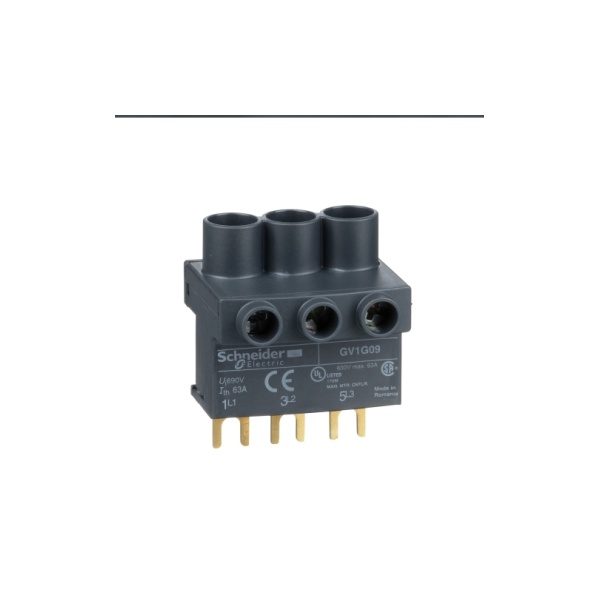

GV1G09 TeSys GV2, TeSys D TeSys U terminal block 3P from the top Schneider Electric gv1g09 da19 web
Click to enlarge

    GV1G09 | TeSys GV2, TeSys D & TeSys U – terminal block – 3P – from the top – Schneider Electric

    SKU: GV1G09

    Original price was: ₹4,065.00.Current price is: ₹1,829.25. Excl. GST

    In stock

    In stock

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    GV2ME20 Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me20 ima
    -58%

    GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹13,270.00.Current price is: ₹5,573.40. Excl. GST
    Add to basket
    SKU: GV2ME20

    GV2LE22 | GV2 MOTOR CB MAGNETIC 25A TOGGLE SWITCH – Schneider Electric

    Schneider Electric
    ₹10,690.00 Excl. GST
    Add to basket
    SKU: GV2LE22
    GV2ME07 Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me07 i
    -58%

    GV2ME07 | Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹10,630.00.Current price is: ₹4,464.60. Excl. GST
    Add to basket
    SKU: GV2ME07
    GV2ME08 Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me08 ima
    -58%

    GV2ME08 | Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
    Add to basket
    SKU: GV2ME08
    GV2ME10 Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals Schneider Electric gv2me10 ima
    -58%

    GV2ME10 | Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹11,000.00.Current price is: ₹4,620.00. Excl. GST
    Add to basket
    SKU: GV2ME10
    GV2P16 Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals Schneider Electric gv2p16 image
    -55%

    GV2P16 | Motor circuit breaker, TeSys GV2, 3P, 9-14 A, thermal magnetic, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹14,490.00.Current price is: ₹6,520.50. Excl. GST
    Add to basket
    SKU: GV2P16

    GV2LE10 | GV2 MOTOR CB MAGNETIC 6.3A TOGGLE SWITCH – Schneider Electric

    Schneider Electric
    ₹9,210.00 Excl. GST
    Add to basket
    SKU: GV2LE10
    -56%

    GV2LE14 | GV2 MOTOR CB MAGNETIC 10A TOGGLE SWITCH – Schneider Electric

    Schneider Electric
    Original price was: ₹9,210.00.Current price is: ₹4,052.40. Excl. GST
    Add to basket
    SKU: GV2LE14
    -55%

    GV2RT06 | GV2 MOTOR CB HIGH INRUSH 1-1.6A TOGGLE – Schneider Electric

    Schneider Electric
    Original price was: ₹23,000.00.Current price is: ₹10,350.00. Excl. GST
    Add to basket
    SKU: GV2RT06

      Looking for the GV1G09 | TeSys GV2, TeSys D & TeSys U – terminal block – 3P – from the top? This genuine Schneider Electric terminal block from the Linergy range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 63 A, 3P, IP20. Order part number GV1G09 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUGV1G09
      CategoryTerminal Block
      Main
      RangeLinergy
      Product nameFT
      Device short nameGV1G
      Product or component typeTerminal block
      Accessory / separate part categoryConnection accessory
      Poles description3P
      Range compatibilityTeSys GV2
      TeSys Deca
      TeSys U
      TeSys LS1
      Complementary
      [Ie] rated operational current63 A
      Mounting locationTop
      IP degree of protectionIP20 conforming to IEC 60529
      [Ui] rated insulation voltage690 V conforming to IEC 60947-1
      Connections – terminalsScrew clamp terminals 1 cable(s) (AWG 4) – solid
      Screw clamp terminals 1 cable(s) 1.5…16 mm² – flexible with cable end
      Screw clamp terminals 1 cable(s) 1.5…16 mm² – flexible without cable end
      Screw clamp terminals 1 cable(s) 1.5…25 mm² – solid
      Screw clamp terminals 2 cable(s) 1.5…4 mm² – flexible with cable end
      Screw clamp terminals 2 cable(s) 1.5…6 mm² – solid
      Screw clamp terminals 2 cable(s) 1.5…4 mm² – flexible without cable end
      Screw clamp terminals 1 cable(s) (AWG 4) – flexible
      Tightening torque1.7 N.m – on screw clamp terminals
      2.2 N.m – on connector
      Product weight0.04 kg
      Environment
      Product certificationsCE
      UKCA
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height4.500 cm
      Package 1 Width6.000 cm
      Package 1 Length7.000 cm
      Package 1 Weight49.000 g
      Unit Type of Package 2S02
      Number of Units in Package 270
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight3.706 kg
      Unit Type of Package 3P06
      Number of Units in Package 31120
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight69.540 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      GV2ME08GV2ME10GV2ME07GV2ME20GV2P16GV2LE14GV2LE10GV2RT10GV2RT07GV2RT08GV2LE16GV2LE22GV2LE08GV2LE20GV2RT06GV2RT14GV2LE07GV2RT16GV2RT20GV2RT05
