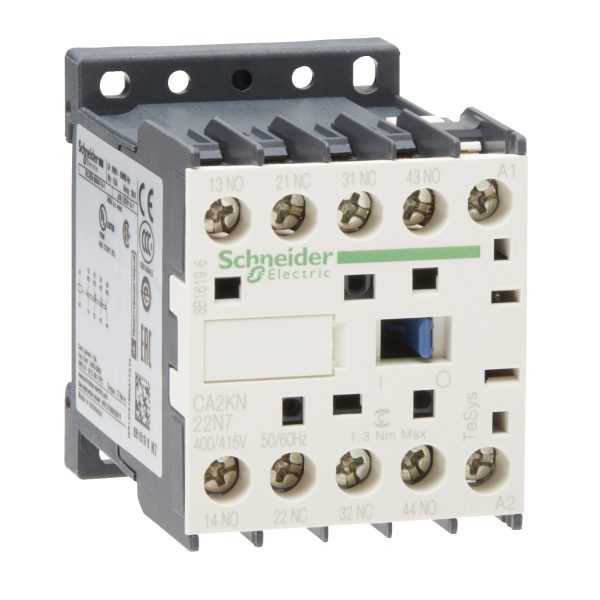

CA2KN22N7 | TeSys K Control Relay
Product Overview
The CA2KN22N7 is a TeSys K control relay manufactured by Schneider Electric. It is designed for industrial and commercial applications, providing reliable switching and control of electrical circuits. This relay features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it versatile for various control applications.
Key Features
- Contact Configuration: 2 NO + 2 NC
- Rated Voltage: ≤ 690 V
- Coil Voltage: 400…415 V AC
- Mounting: DIN rail or screw mounting
- Contact Material: Silver alloy for high durability
- Mechanical Life: Up to 10 million operations
- Electrical Life: Up to 1 million operations
- Operating Temperature: -25°C to +55°C
- Protection Class: IP20 (finger-safe design)
- Compliance: Meets IEC/EN 60947-5-1 standards
Applications
The CA2KN22N7 control relay is suitable for a wide range of applications, including:
- Motor control
- Lighting control
- HVAC systems
- Industrial automation
- Power distribution
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 400…415 V AC |
| Rated Operational Current (Ie) | 6 A |
| Power Consumption | 4.5 VA |
| Coil Resistance | 35.5 kΩ |
| Weight | Approx. 200 g |
Additional Information
For more details, including wiring diagrams and installation instructions, refer to the official Schneider Electric product manual or visit their website.
