LR2K0304 | TeSys K – Differential Thermal Overload Relays

Product Overview

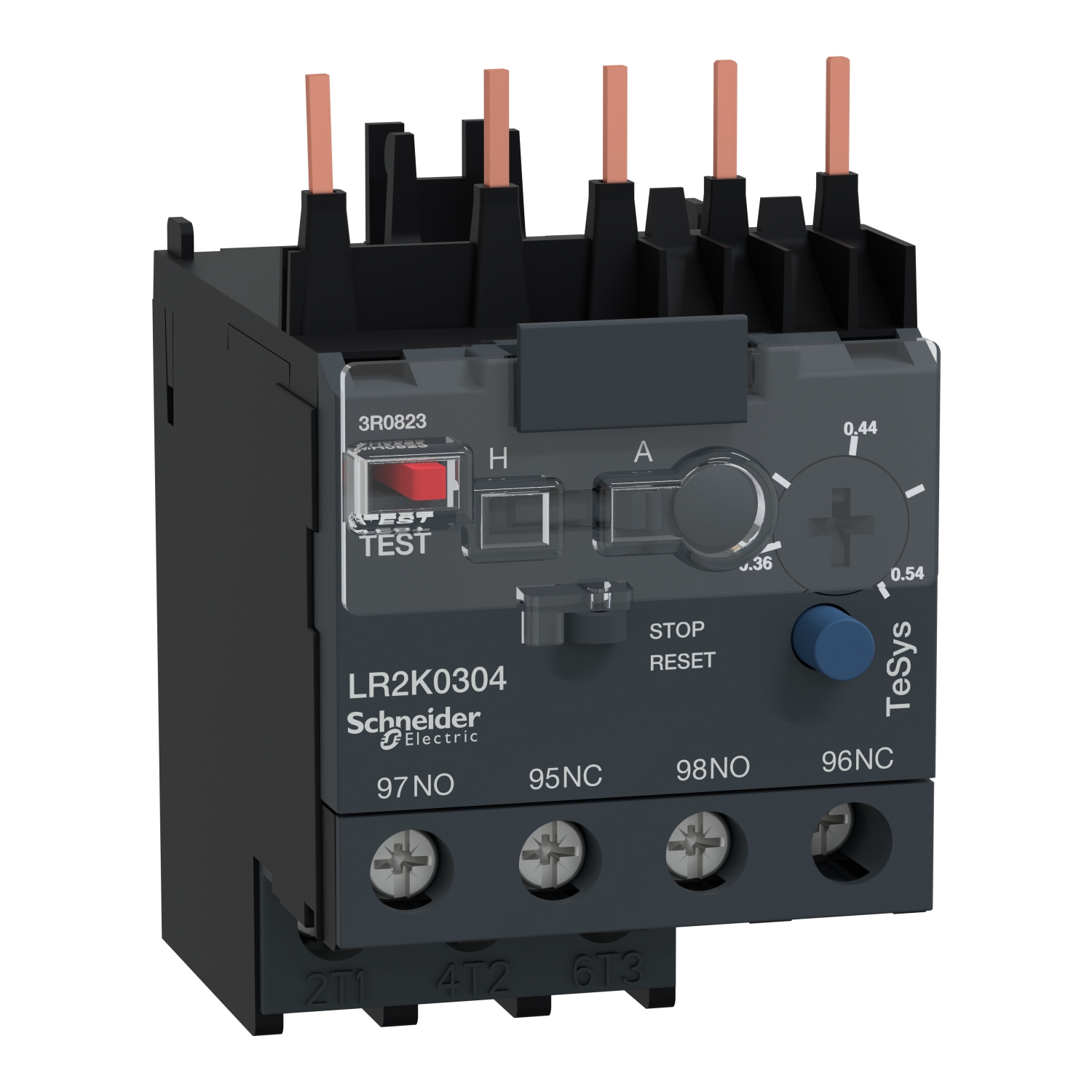

The LR2K0304 is a differential thermal overload relay from Schneider Electric’s TeSys K series. It is designed to protect motors and other electrical equipment from overloads and phase failures. This relay is suitable for a wide range of industrial applications, ensuring reliable and efficient operation.

Key Features

• Current Range: 0.36…0.54 A
• Class: 10A
• Type: Differential Thermal Overload Relay
• Mounting: Screw mounting
• Contact Configuration: 1 NO (Normally Open) + 1 NC (Normally Closed)
• Ambient Temperature: -20°C to +60°C
• Standards: IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
• Protection Degree: IP20
• Mechanical Durability: 10,000 cycles
• Electrical Durability: 1,000 cycles
• Weight: Approx. 0.2 kg

Applications

The LR2K0304 is ideal for use in various industrial applications, including:

• Motor protection
• Pump control
• Conveyor systems
• Compressors
• HVAC systems

Benefits

• Provides reliable protection against motor overloads and phase failures
• Easy to install and configure
• Compact design saves space in control panels
• Complies with international standards for safety and performance
• Durable construction ensures long service life

Additional Information

For more detailed technical specifications, installation guidelines, and safety information, please refer to the official Schneider Electric product documentation or contact their customer support.
