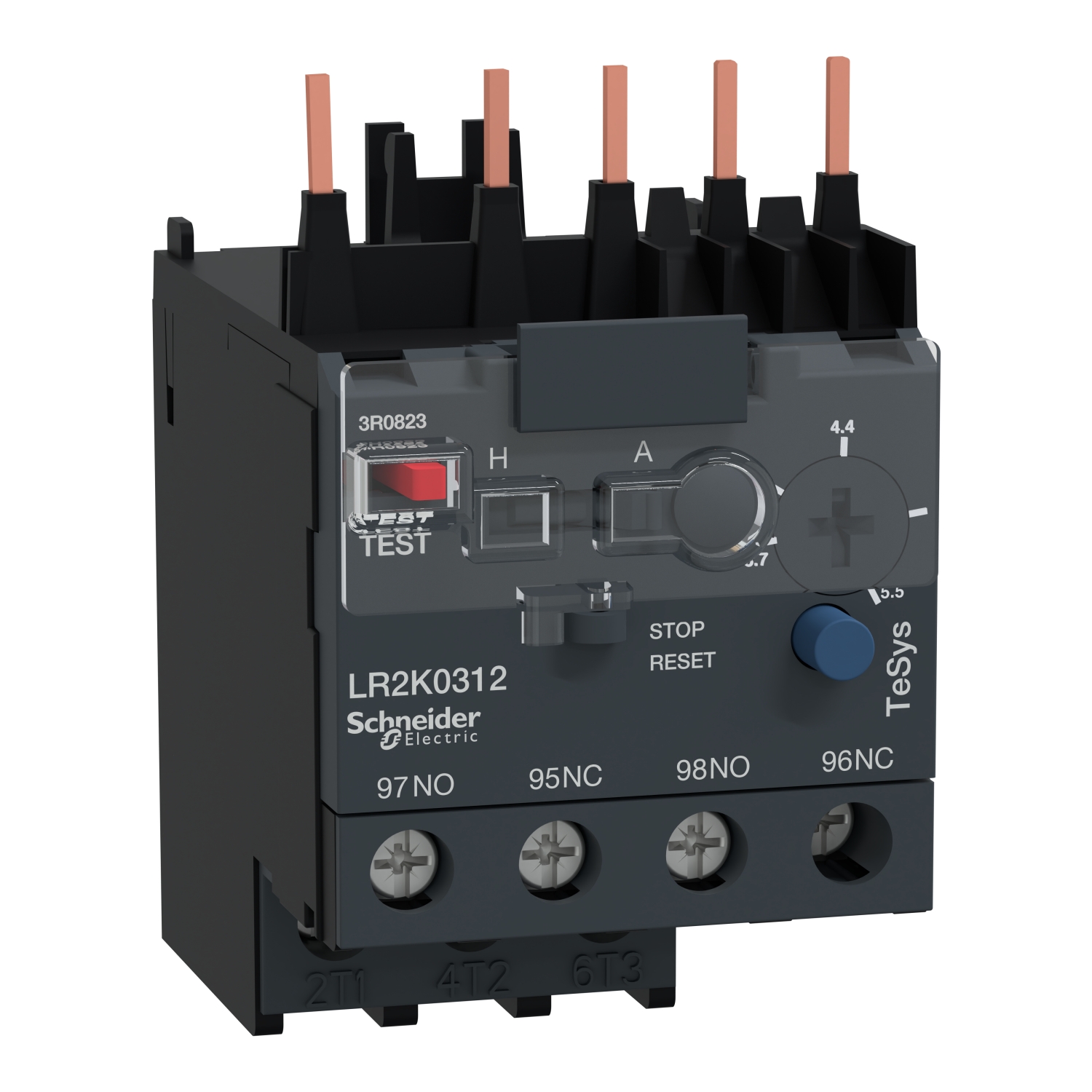

LR2K0312 | TeSys K – Differential Thermal Overload Relays
Product Overview
The LR2K0312 is a differential thermal overload relay from Schneider Electric’s TeSys K series. Designed for motor protection, this relay ensures reliable operation by monitoring the current and providing overload protection. It is suitable for a wide range of industrial applications.
Key Features
- Current Range: 3.7 to 5.5 A
- Class: 10A
- Type: Differential Thermal Overload Relay
- Mounting: Screw mounting
- Compatibility: Compatible with TeSys K contactors
- Protection: Provides overload and phase-loss protection
- Adjustment: Manual reset with adjustable trip current
- Standards: Complies with IEC/EN 60947-4-1 standards
- Environment: Suitable for use in harsh industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Operational Current (Ie) | 3.7 to 5.5 A |
| Class | 10A |
| Mounting Type | Screw mounting |
| Reset Type | Manual |
| Standards Compliance | IEC/EN 60947-4-1 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
Applications
The LR2K0312 is ideal for protecting motors in various industrial applications, including:
- Conveyor systems
- Pumps and compressors
- Fans and blowers
- Machine tools
- HVAC systems
Benefits
- Ensures motor protection against overloads and phase loss
- Easy to install and adjust
- Reliable performance in harsh environments
- Compatible with a wide range of TeSys K contactors
Warranty and Support
Schneider Electric offers a standard warranty on this product. For technical support and warranty claims, contact Schneider Electric’s customer service.
