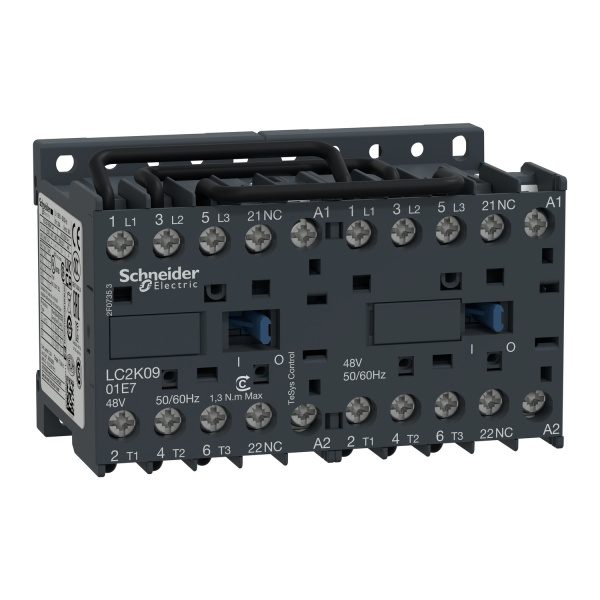

LC2K0901M7 | TeSys K Reversing Contactor

Manufacturer: Schneider Electric

Product Type: Reversing Contactor

Number of Poles: 3P

Rated Operational Voltage (Ue): AC-3 ≤ 440 V

Rated Operational Current (Ie): 9 A

Auxiliary Contacts: 1 NC (Normally Closed)

Coil Voltage: 220…230 VAC

Application: Suitable for controlling the direction of three-phase motors by reversing two of the phases.

Features:

• Compact and modular design for easy installation and maintenance.
• High electrical durability with a long service life.
• Complies with international standards for safety and performance.
• Integrated mechanical interlock to prevent simultaneous activation of both contactors.
• Compatible with a wide range of accessories for enhanced functionality.
• Designed for use in industrial and commercial applications.

Standards and Certifications:

• IEC/EN 60947-4-1
• UL 508
• CSA C22.2 No. 14

Environmental Conditions:

• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)

Dimensions:

• Width: 45 mm
• Height: 80 mm
• Depth: 80 mm

Weight: Approximately 0.5 kg
