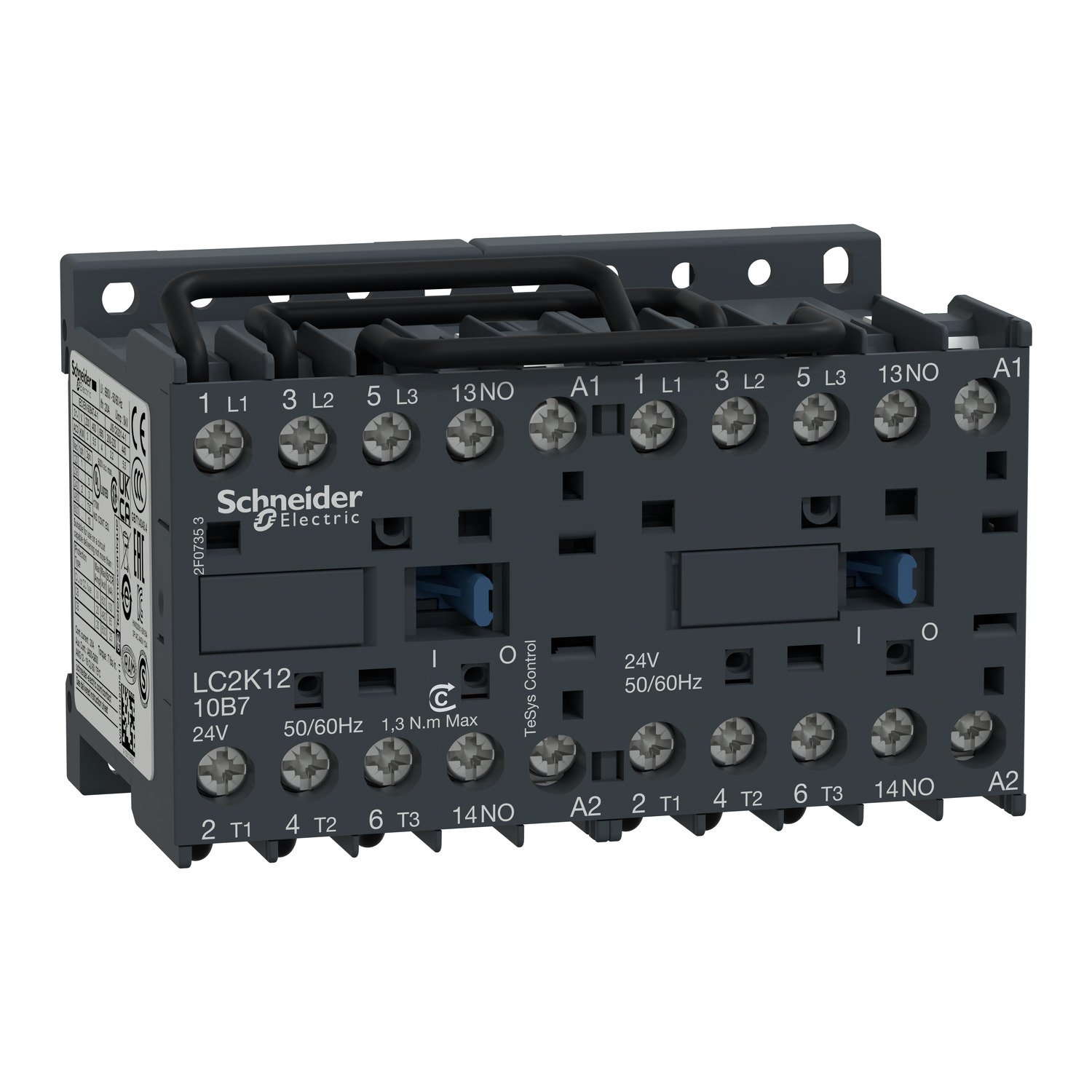

LC2K1210M7 | TeSys K Reversing Contactor
Product Overview
The LC2K1210M7 is a TeSys K reversing contactor designed by Schneider Electric. It is a 3-pole contactor suitable for AC-3 applications up to 440 V and 12 A. This contactor is equipped with 1 normally open (NO) auxiliary contact and operates at a control voltage of 220…230 V AC.
Key Features
- Type: Reversing Contactor
- Number of Poles: 3
- Rated Operational Voltage (Ue): Up to 440 V AC
- Rated Operational Current (Ie): 12 A (AC-3)
- Auxiliary Contacts: 1 NO (Normally Open)
- Control Voltage: 220…230 V AC
- Mounting: Screw Mounting
- Mechanical Durability: High mechanical endurance
- Electrical Durability: High electrical endurance
- Enclosure: IP20 protection
- Compliance: Meets international standards for safety and performance
Applications
The LC2K1210M7 is ideal for use in various industrial applications, including:
- Motor control and reversing
- Machinery and equipment control
- HVAC systems
- Pump and fan control
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Power (P) | 5.5 kW at 400 V AC |
| Rated Thermal Current (Ith) | 12 A |
| Coil Power Consumption | Approx. 8 VA |
| Weight | Approx. 0.5 kg |
Additional Information
For more details, refer to the official Schneider Electric product documentation or contact their customer support.
