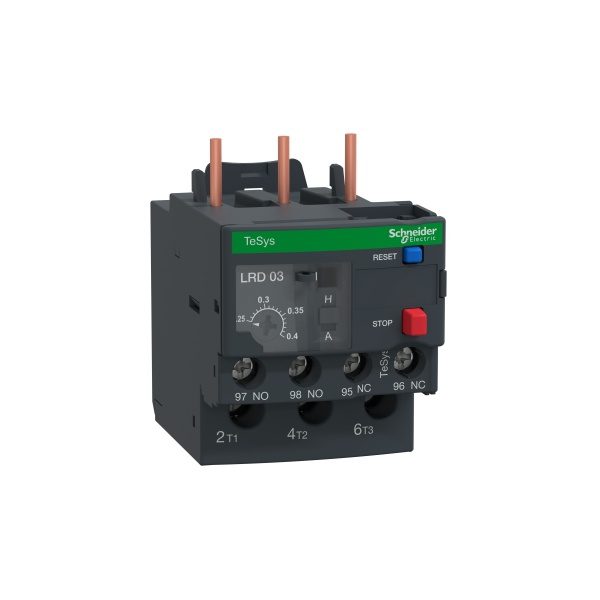

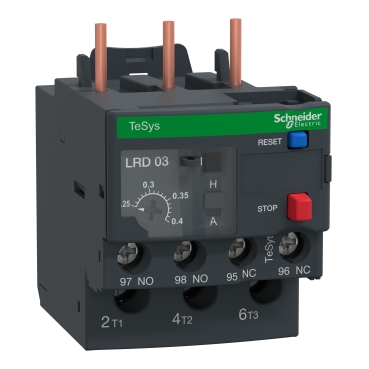

LRD03 | TeSys LRD Thermal Overload Relays – 0.25…0.4 A – Class 10A

Product Overview

The LRD03 is a thermal overload relay from Schneider Electric’s TeSys LRD series, designed to protect motors from overloads and phase failures. It is suitable for use with contactors and offers reliable motor protection in various industrial applications.

Key Features

Current Range: 0.25 to 0.4 A
Class: 10A (fast tripping)
Mounting: Screw mounting or snap-on mounting for easy installation
Compatibility: Compatible with TeSys D contactors
Adjustable Settings: Manual reset and automatic reset options
Phase Loss Protection: Protects against phase loss and phase unbalance
Ambient Temperature: Operates reliably in temperatures up to 60°C
Standards Compliance: Complies with IEC/EN 60947-4-1 standards
Durability: Robust design for long-lasting performance

Applications

The LRD03 thermal overload relay is ideal for use in:

Motor protection in industrial machinery
HVAC systems
Pumps and compressors
Conveyor systems
Other applications requiring reliable motor protection

Technical Specifications

Parameter	Value
Rated Current	0.25 to 0.4 A
Tripping Class	10A
Mounting Type	Screw or snap-on
Reset Type	Manual or automatic
Ambient Temperature	Up to 60°C
Standards	IEC/EN 60947-4-1
