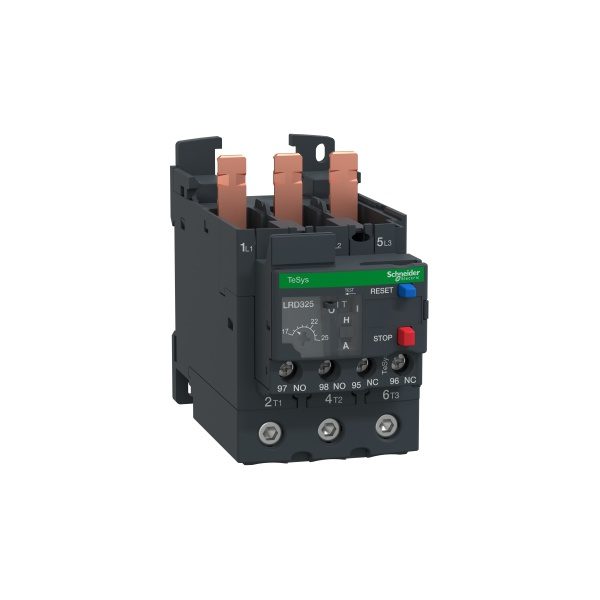

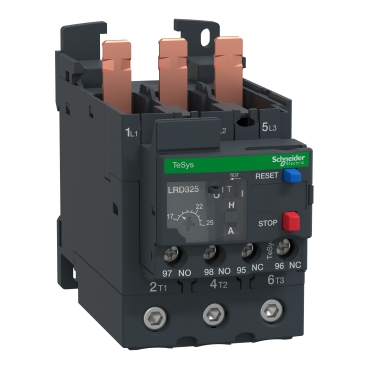

LRD325 | TeSys LRD Thermal Overload Relays – 17…25 A – Class 10A – Schneider Electric

Product Overview

The LRD325 is a thermal overload relay from Schneider Electric’s TeSys LRD series, designed to protect motors from overloads and phase failures. It is suitable for a wide range of industrial applications, ensuring reliable motor protection and operational safety.

Key Features

• Current Range: 17…25 A
• Class: 10A
• Type: Thermal Overload Relay
• Mounting: Snap-on mounting on TeSys D contactors
• Adjustable Settings: Allows precise adjustment of the current setting to match motor requirements
• Phase Failure Protection: Provides protection against phase loss, ensuring motor safety
• Manual/Auto Reset: Offers both manual and automatic reset options for flexibility in operation
• Ambient Temperature: Operates reliably in ambient temperatures up to 60°C
• Standards Compliance: Complies with international standards such as IEC 60947-4-1, UL 508, and CSA C22.2
• Durability: Robust construction ensures long service life and reliability in harsh environments

Applications

The LRD325 thermal overload relay is ideal for use in various industrial applications, including:

• Motor protection in manufacturing plants
• HVAC systems
• Pumps and compressors
• Conveyor systems
• Machine tools

Technical Specifications

Warranty

Schneider Electric offers a standard warranty on the LRD325 thermal overload relay, ensuring quality and reliability. Please refer to the official documentation for detailed warranty terms and conditions.

Contact Information

For more information or to purchase the LRD325 thermal overload relay, please contact Schneider Electric or visit their official website.
