LRD35 | TeSys LRD Thermal Overload Relays – 30…38 A – Class 10A

Product Overview

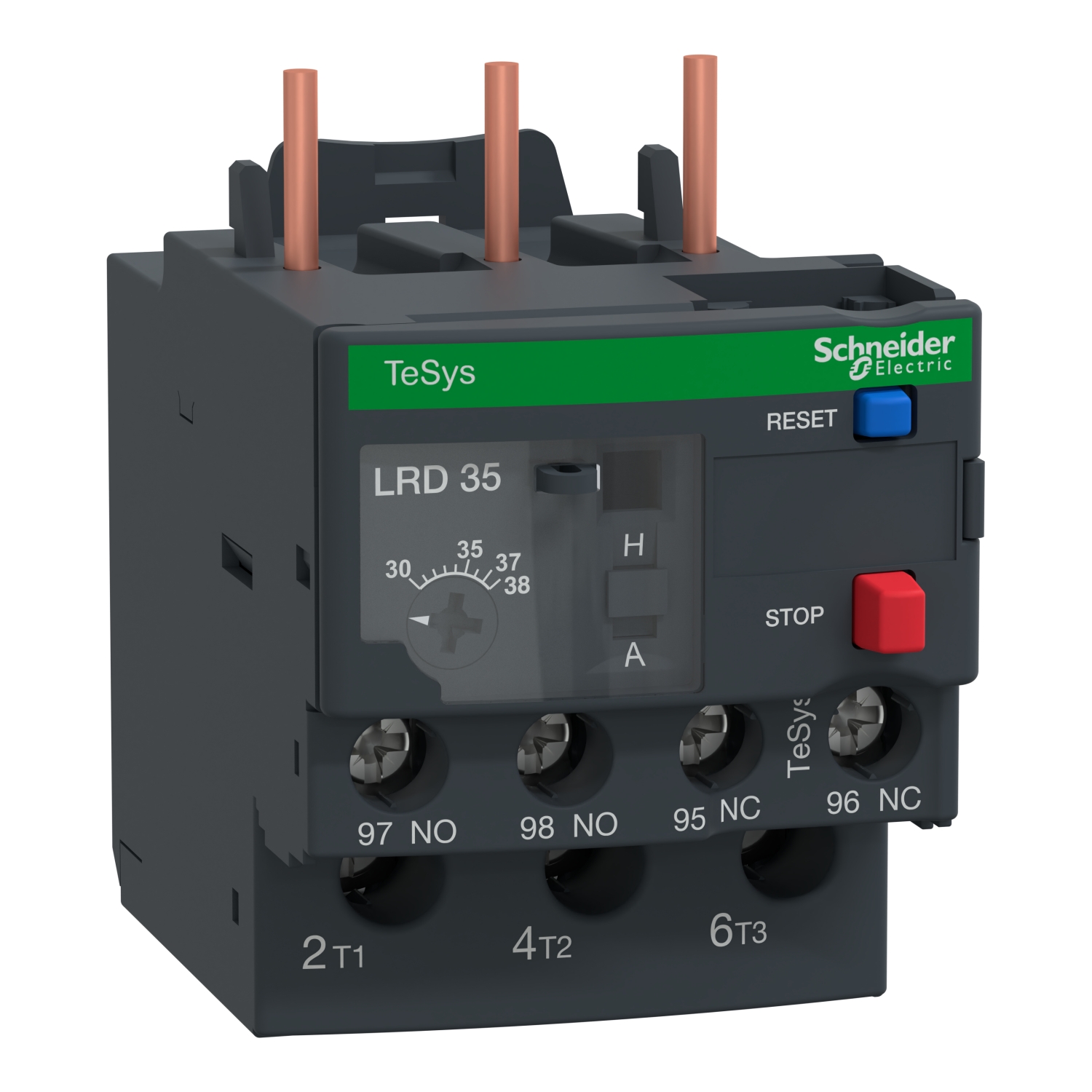

The LRD35 is a thermal overload relay from Schneider Electric’s TeSys LRD series, designed to protect motors from overloads and phase failures. It is suitable for a wide range of industrial applications, ensuring reliable motor protection and operational safety.

Key Features

• Current Range: 30…38 A
• Class: 10A
• Mounting: Screw mounting
• Compatibility: Compatible with TeSys D contactors
• Adjustment: Manual current setting adjustment
• Tripping Class: Class 10A (suitable for standard motor applications)
• Ambient Temperature: Operates reliably in temperatures up to 60°C
• Standards Compliance: Complies with IEC/EN 60947-4-1, UL 508, and CSA C22.2 standards
• Phase Failure Protection: Provides protection against phase loss and phase unbalance
• Reset Options: Manual and automatic reset options available
• Durability: Robust design for long-lasting performance in harsh environments

Applications

The LRD35 thermal overload relay is ideal for use in various industrial and commercial applications, including:

• Motor protection in HVAC systems
• Pumps and compressors
• Conveyors and material handling systems
• Machine tools and industrial machinery

Technical Specifications
