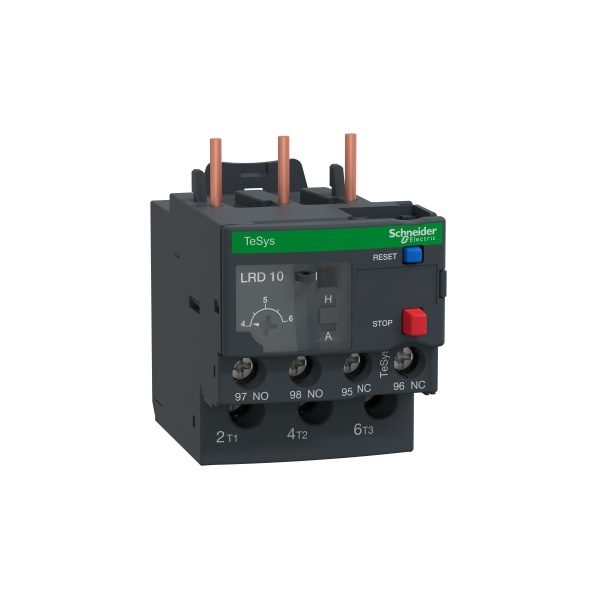

LRD10 | TeSys LRD Thermal Overload Relays – 4…6 A – Class 10A – Schneider Electric
Product Overview
The LRD10 is a thermal overload relay from the TeSys LRD series by Schneider Electric. It is designed to protect motors and other electrical equipment from overheating and overcurrent conditions. This relay is suitable for a wide range of applications, ensuring reliable and efficient operation.
Key Features
- Current Range: 4…6 A
- Class: 10A
- Thermal Overload Protection: Protects motors from overheating and overcurrent conditions.
- Compact Design: Space-saving and easy to install in control panels.
- Manual/Auto Reset: Allows for manual or automatic reset after a trip.
- Ambient Temperature Compensation: Ensures accurate operation across a wide range of ambient temperatures.
- Compatibility: Compatible with TeSys D contactors for seamless integration.
- Durability: Robust construction for long-lasting performance in demanding environments.
- Safety: Meets international safety standards for reliable protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Current Range | 4…6 A |
| Class | 10A |
| Reset Type | Manual/Auto |
| Ambient Temperature | -20°C to +60°C |
| Mounting | DIN Rail |
| Standards | IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 |
Applications
The LRD10 thermal overload relay is ideal for use in various industrial and commercial applications, including:
- Motor protection in HVAC systems
- Pump and fan control
- Conveyor systems
- Machine tools
- Compressors
Additional Resources
For more detailed information, including installation guides and datasheets, please visit the official Schneider Electric website or contact your local distributor.
