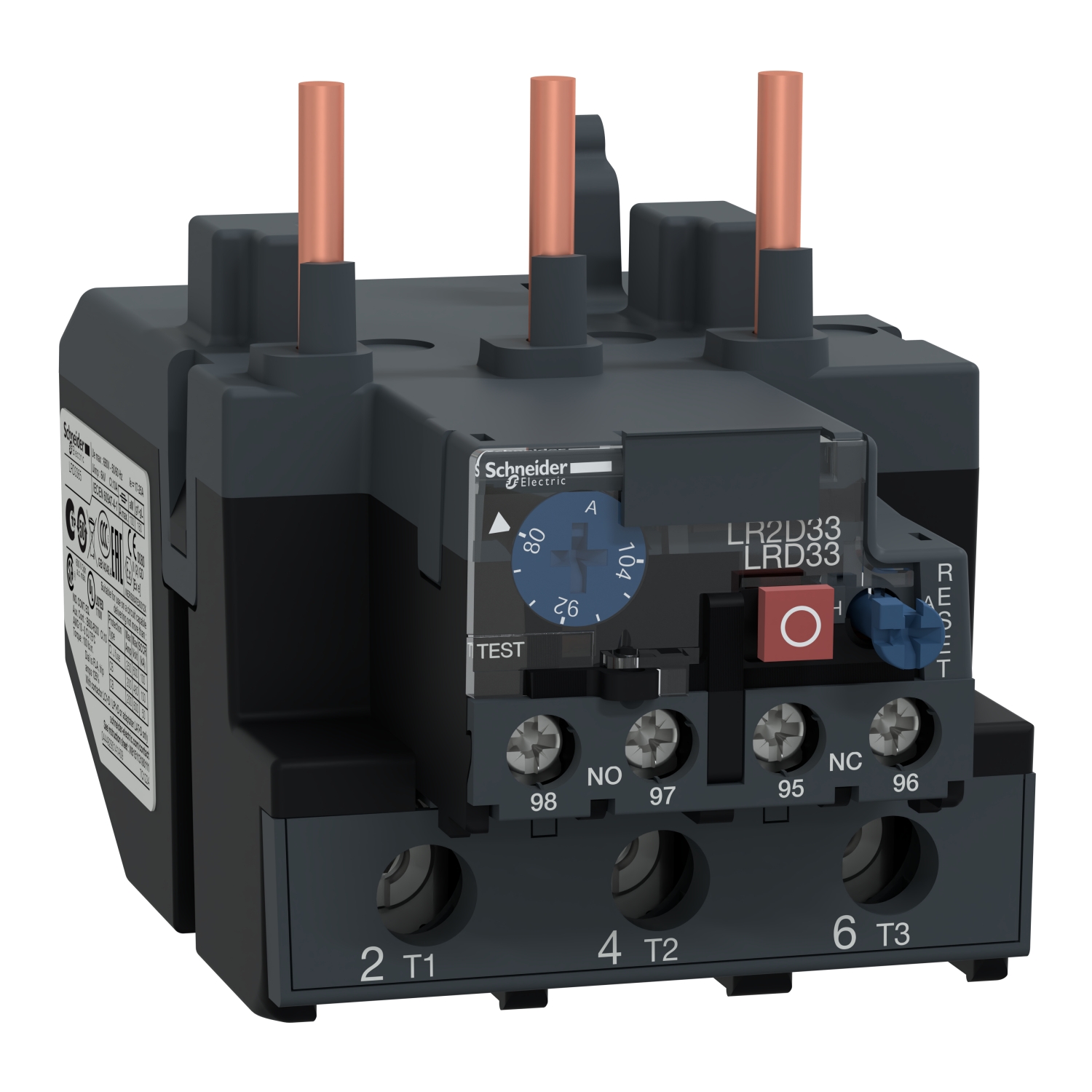

LRD3365 | TeSys LRD Thermal Overload Relays – 80…104 A – Class 10A
Product Description
The LRD3365 is a TeSys LRD thermal overload relay from Schneider Electric, designed to protect motors and other electrical equipment from overheating and overcurrent conditions. It is suitable for applications with a current range of 80 to 104 A and features a class 10A tripping characteristic, ensuring reliable and fast protection.
Key Features
- Current Range: 80…104 A
- Tripping Class: Class 10A
- Mounting: Can be mounted directly on TeSys D contactors
- Adjustable Settings: Allows precise adjustment of the current setting to match the motor’s rated current
- Manual/Auto Reset: Offers both manual and automatic reset options for flexibility in operation
- Ambient Temperature Compensation: Ensures accurate operation across a wide range of ambient temperatures
- LED Indicators: Provides visual indication of the relay’s status (trip, reset, etc.)
- Compatibility: Compatible with TeSys D contactors for seamless integration
- Safety Standards: Complies with international safety and performance standards
Applications
The LRD3365 thermal overload relay is ideal for use in various industrial and commercial applications, including:
- Motor protection in HVAC systems
- Pumps and compressors
- Conveyors and material handling systems
- Machine tools and industrial machinery
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Current (Ie) | 80…104 A |
| Tripping Class | 10A |
| Mounting Type | Direct mounting on TeSys D contactors |
| Reset Mode | Manual/Auto |
| Ambient Temperature Range | -20°C to +60°C |
| Standards Compliance | IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14 |
Additional Information
For more details, including installation instructions and wiring diagrams, refer to the official Schneider Electric product documentation or contact their technical support team.
