LRD32 | Thermal Overload Relay, TeSys LRD, 23…32 A, Class 10A – Schneider Electric

Product Overview

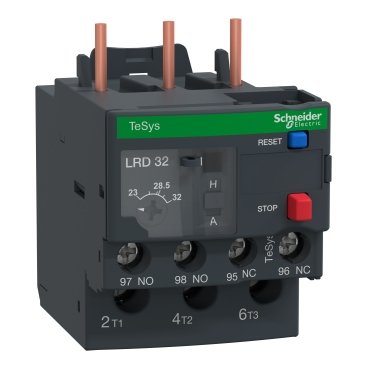

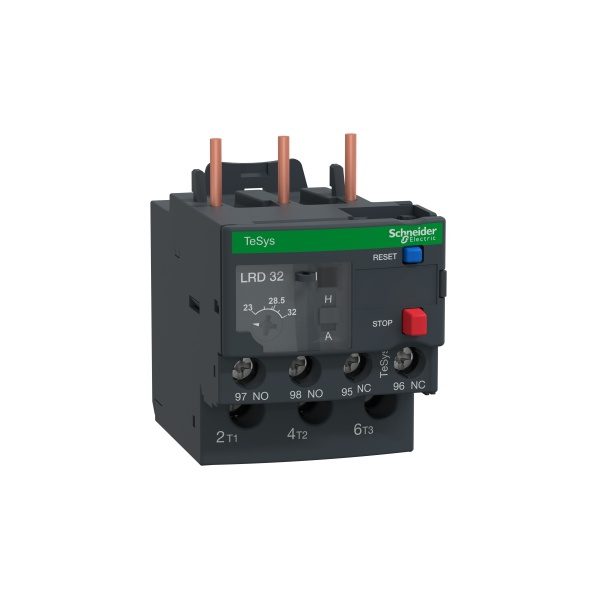

The LRD32 is a thermal overload relay from Schneider Electric’s TeSys LRD series, designed to protect motors from overloads and phase failures. It is suitable for applications with a current range of 23 to 32 A and features a class 10A tripping characteristic, ensuring reliable motor protection.

Key Features

• Current Range: 23…32 A
• Tripping Class: Class 10A
• Mounting: Screw mounting
• Ambient Temperature: -20°C to +60°C
• Standards: Complies with IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14
• Adjustable Settings: Allows precise adjustment of the current setting to match motor requirements
• Manual/Auto Reset: Selectable reset mode for flexibility in operation
• Phase Failure Protection: Detects and protects against phase loss or imbalance
• Compatibility: Compatible with TeSys D contactors for seamless integration
• Durability: Robust construction ensures long-lasting performance in demanding environments

Applications

The LRD32 thermal overload relay is ideal for use in various industrial and commercial applications, including:

• Motor control centers
• Pumps and fans
• Conveyors and compressors
• HVAC systems
• Machinery and equipment

Technical Specifications

Warranty

Schneider Electric offers a standard warranty on the LRD32 thermal overload relay, subject to terms and conditions. Please refer to the official documentation for details.
