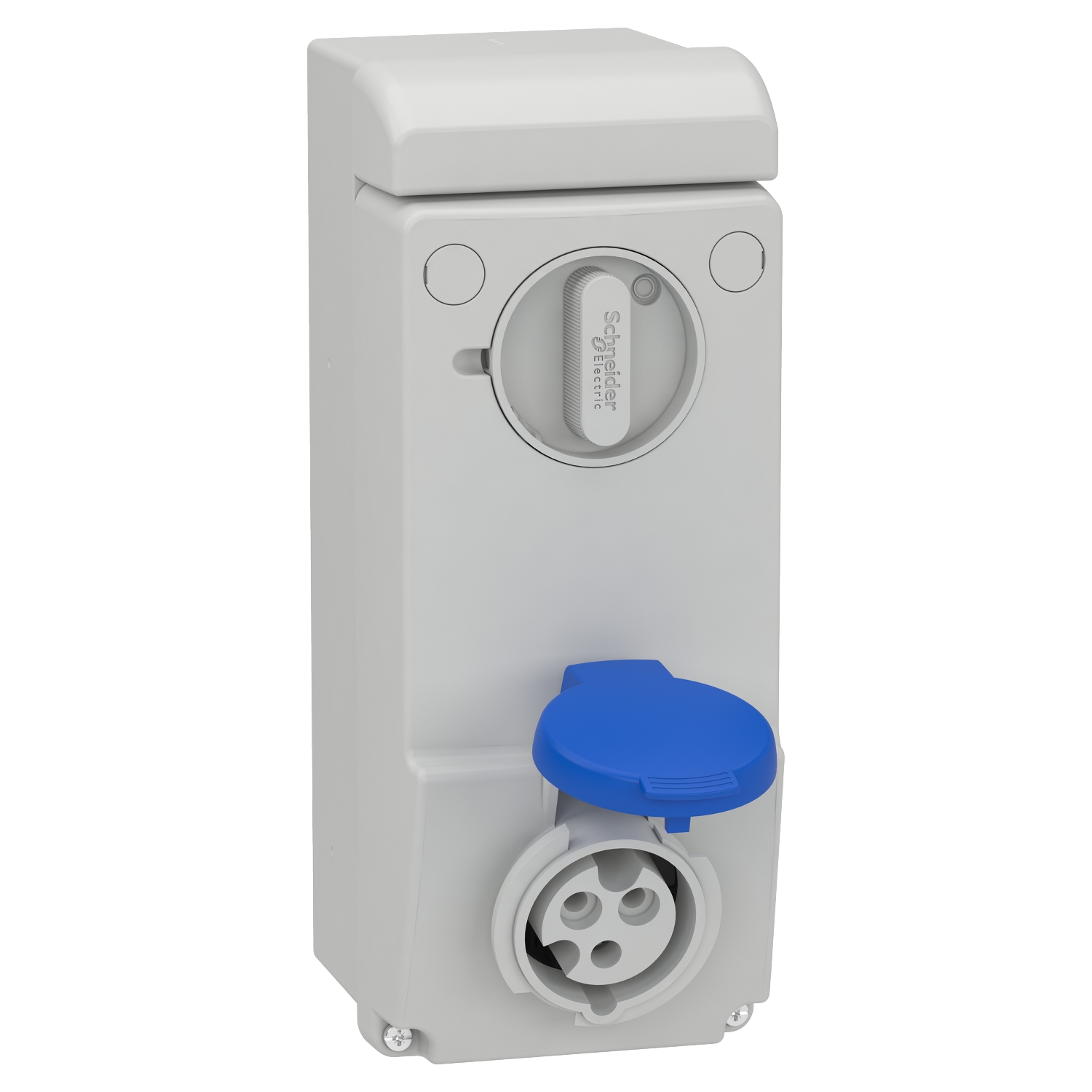

83031 | Unika interlocked socket – 16 A – 2P + E – 200…250 V AC – IP44 – wall – Schneider Electric

Name: Schneider Electric Unika Interlocked Socket 16A IP44 | 83031
Brand: Schneider Electric
SKU: 83031
Price: 5867.40 INR
Availability: InStock

SKU: 83031

Original price was: ₹10,668.00.Current price is: ₹5,867.40. Excl. GST

In stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

PKX16M423 | Wander plug PK PratiKa connect 16A IP44 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: PKX16M423

PKE32M423 PratiKa wander plug straight 32 A 2P E 200 250 V AC IP44 Schneider Electric pg149039 1500x1500

-48%

PKE16M423 | PratiKa wander plug – straight – 16 A – 2P + E – 200…250 V AC – IP44 – Schneider Electric

Plug

Schneider Electric

Excl. GST

Add to basket

SKU: PKE16M423

Looking for the Unika interlocked socket – 16 A – 2P + E – 200…250 V AC – IP44 – wall? This genuine Schneider Electric industrial plug & socket (iec 60309) from the Mureva range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 16 A, 200…250 V, 2P + E. Order part number 83031 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	83031
Category	Industrial Plug & Socket (IEC 60309)
Main
Range	Mureva
Product or component type	Interlocked socket
Device short name	Mureva socket
Plug, socket category	Low voltage
Poles description	2P + E
Network type	AC
Outlet standard	Industrial
Complementary
Mounting mode	Wall-mounted
[In] rated current	16 A
[Ue] rated operational voltage	200…250 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Protection type	Without protection
Plug, socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: nickel plated brass
Connections – terminals	Captive screws
Maximum cable cross section	10 mm²
Maximum cable outer diameter	25 mm
cable entry	Cable gland
Thread type	Pg 21
Product weight	0.934 kg
Base dimension	103 x 255 mm
Height	255 mm
Width	103 mm
Depth	150 mm
Colour	Grey (RAL 7035)
Voltage colour	Blue
Environment
Standards	IEC 60309-1 IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 62262
Fire resistance	750 °C conforming to IEC 60695-2-11
Relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
Ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.700 cm
Package 1 Width	26.100 cm
Package 1 Length	17.000 cm
Package 1 Weight	1.013 kg
Unit Type of Package 2	S03
Number of Units in Package 2	5
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.552 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

16 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
IP44 enclosure rating — confirmed ingress protection against dust and moisture for the installation environment.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

PKE16M423PKX16M423

❓ Frequently Asked Questions

Q: What is the significance of the 16 A rating on the 83031?

A: The 16 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What environments is the IP44 rating on the 83031 suitable for?

A: IP44 means the enclosure is solid particle protection (first digit: 4) and protected against water splash from all directions (second digit: 4). This makes the 83031 suitable for indoor-outdoor transitional areas, splash-prone locations. Always verify IP integrity after installation — damaged seals or unused cable entries reduce actual protection.

Q: The 83031 has a 3 Pin (2P+E) — Single Phase + Earth configuration — can it be used with a standard 3-pin socket?

A: No. The 3 Pin (2P+E) — Single Phase + Earth configuration on the 83031 is an IEC 60309 industrial standard and physically incompatible with domestic 3-pin or 5-pin BS 1363/IS 1293 sockets. This is intentional — the colour coding and keyway system prevents accidental connection to the wrong voltage. Match the plug to a correctly rated IEC 60309 socket of the same pin count, current rating, and IP rating.

Q: How do I identify the correct 83031 socket to pair with this plug?

A: IEC 60309 plugs and sockets are colour-coded and keyed by voltage/frequency: Red body = 380–415V 3-phase 50Hz (India standard). The keyway angle on the plug must match the socket’s keyway — this is factory-set per voltage and prevents wrong-voltage mating. Always purchase matching plug and socket from the same Schneider Electric catalogue to ensure correct keying and IP rating.
