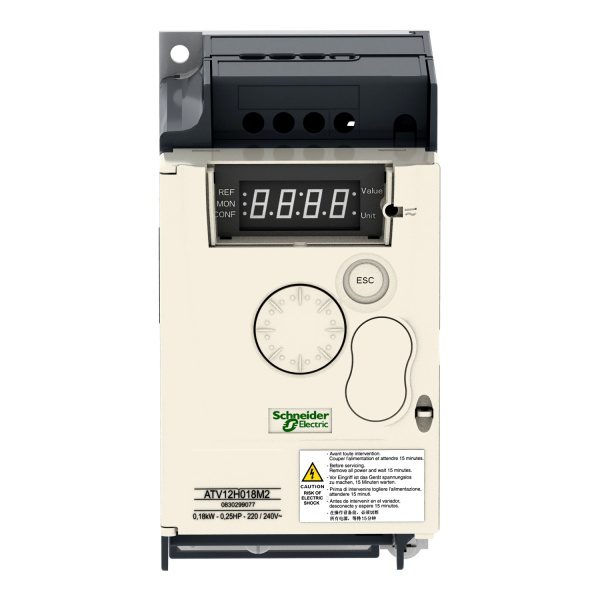

ATV12H018M2 – Variable Speed Drive
Altivar 12, 0.18kW, 0.25hp, 200 to 240V, 1 Phase
Manufacturer: Schneider Electric
Product Overview
The ATV12H018M2 is a compact and efficient variable speed drive designed for controlling the speed of single-phase motors. It is part of the Altivar 12 series by Schneider Electric, known for its reliability and ease of use in various applications.
Key Features
- Power Rating: 0.18 kW (0.25 hp)
- Voltage: 200 to 240V AC, 1 Phase
- Output Current: 1.2 A
- Frequency Range: 0 to 400 Hz
- Control Mode: Scalar (V/f)
- Enclosure: IP20 (Open Type)
- Communication: Modbus RTU (RS485)
- Protection: Overload, short circuit, overvoltage, undervoltage, and overheating protection
- Dimensions: Compact design for easy installation
- Certifications: CE, UL, cUL, RoHS compliant
Applications
The ATV12H018M2 is suitable for a wide range of applications, including:
- Pumps
- Fans
- Conveyors
- Packaging machines
- HVAC systems
Benefits
- Energy-efficient motor control
- Easy to install and configure
- Compact design saves space
- Reliable performance in various environments
- Integrated communication for system integration
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 200-240V AC, 1 Phase |
| Output Voltage | 0-240V AC, 3 Phase |
| Output Current | 1.2 A |
| Frequency Range | 0-400 Hz |
| Control Mode | Scalar (V/f) |
| Enclosure Rating | IP20 |
| Communication | Modbus RTU (RS485) |
| Dimensions (H x W x D) | 90 x 55 x 85 mm |
| Weight | 0.5 kg |
Warranty
Schneider Electric offers a standard warranty of 2 years for the ATV12H018M2 variable speed drive, subject to terms and conditions.
