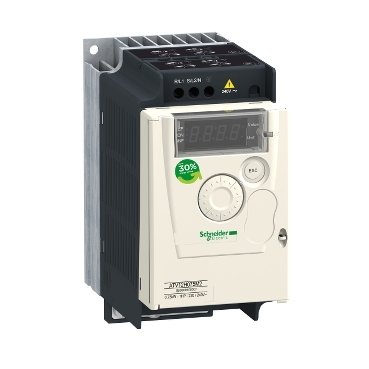

ATV12H075M2 – Variable Speed Drive
Altivar 12, 0.75kW, 1hp, 200 to 240V, 1 Phase, with Heat Sink
Manufacturer: Schneider Electric
Product Overview
The ATV12H075M2 is a compact and efficient variable speed drive designed for single-phase motor control. It is part of the Altivar 12 series by Schneider Electric, offering reliable performance for a wide range of applications.
Key Features
- Power Rating: 0.75 kW (1 hp)
- Voltage Range: 200 to 240V AC, 1 Phase
- Heat Sink: Integrated heat sink for efficient thermal management
- Control Mode: Sensorless vector control for precise motor speed regulation
- Communication: Modbus protocol for easy integration into control systems
- Protection: Built-in protection against overcurrent, overvoltage, and short circuits
- Enclosure: IP20 rating for basic protection against solid objects
- Dimensions: Compact design for space-saving installation
- Mounting: Wall-mounted or panel-mounted options available
- Certifications: Complies with international standards for safety and performance
Applications
The ATV12H075M2 is suitable for a variety of applications, including:
- Pumps and fans
- Conveyors and material handling systems
- Packaging machinery
- Textile machinery
- HVAC systems
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 200-240V AC, 1 Phase |
| Output Power | 0.75 kW (1 hp) |
| Frequency Range | 0.5 to 400 Hz |
| Efficiency | High efficiency with low harmonic distortion |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Weight | Approx. 1.5 kg |
Warranty
Schneider Electric offers a standard warranty of 2 years for the ATV12H075M2 variable speed drive, covering manufacturing defects and workmanship.
Support and Documentation
For additional support, user manuals, and technical documentation, visit the official Schneider Electric website or contact their customer service team.
