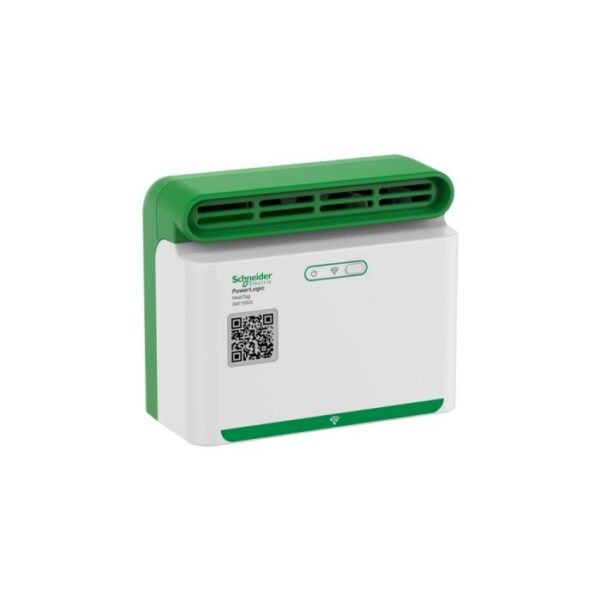

SMT10020 | HeatTag Smart Sensor Cable Overheating – Schneider Electric

Name: SMT10020 | HeatTag Smart Sensor Cable Overheating - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: SMT10020
Price: 61619.25 INR
Availability: BackOrder

SKU: SMT10020

Original price was: ₹74,690.00.Current price is: ₹61,619.25. Excl. GST

Dispatch By : 2 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-48%

PAS600L | ESX PANEL SERVER UNIVERSAL 24VDC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: PAS600L

-48%

PAS600 | ESX PANEL SERVER UNIVERSAL 110-277VACDC – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: PAS600

-46%

LV429454 | Wireless auxiliary contact NSX – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LV429454

Sourced through authorised channels, the Schneider Electric SMT10020 cable / wire from the PowerLogic range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP20. myelectric.in stocks the SMT10020 | HeatTag Smart Sensor Cable Overheating for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	SMT10020
Category	Cable / Wire
Main
Range	PowerLogic
Range of product	PowerLogic HeatTag
Product or component type	Heat detector
Range compatibility	PrismaSeT wireless panel server EcoStruxure data concentrator PowerLogic PowerTag
Device application	Electrical switchboard
Function available	Overheating detection of cables and wire connections Overheating detection based on the analyse of gas and particles in the air 3 levels of alert according to the severity of the situation Environment auto-learning to avoid false alerts Wireless communication with all EcoStruxure data concentrators
sensor technology	Electronic
Type of measurement	Temperature, range: – 15…70 °c, accuracy: +/- 1.1 °C Humidity, range: 15…90 % RH, accuracy: +/- 9 % Air quality index, range: 0…10 AQI
transmission period	30 s (by default) > 30 s (high data traffic)
alarm level	Air quality index >= 10
Communication network type	Wireless – 2.4 GHz
Standards	IEC 61010-1 IEC 61010-2-201 IEC 61326-1 ETSI EN 300 328 ETSI EN 301 489-1 ETSI EN 301 489-17 IEEE 802.15.4 FCC part 15 Subpart B FCC part 15 Subpart C UL 61010-1 CSA C22.2 No 61010-1
Complementary
[Us] rated supply voltage	110…277 V AC at 50/60 Hz, single phase
Supply voltage limits	110…277 V (+/- 15 %)
Maximum supply current	0.1 A
Overvoltage category	III
Control type	1 push-button (sensor pairing/alert acknowledgement)
Local signalling	Network status: 1 LED (green, orange and red) Operating: 1 LED (green, orange and red)
Device location in system	Top of the switchboard Non forced air ventilated switchboard
Mounting support	DIN rail
Protection type	Circuit breaker 2 A curve C
Electrical connection	2 pin(s)removable spring terminal block 2.5 mm² rigid or flexible
Quantity per set	1
Height	107 mm
Width	108 mm
Depth	55 mm
Product weight	0.27 kg
Environment
Ambient air temperature for storage	-20…85 °C
Ambient air temperature for operation	-15…70 °C
Operating altitude	0…2000 m
Relative humidity	15…90 %
IP degree of protection	IP20
IK degree of protection	IK06
Pollution degree	3
Electromagnetic compatibility	EMC immunity conforming to IEC 61326-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.300 cm
Package 1 Width	9.500 cm
Package 1 Length	11.600 cm
Package 1 Weight	292.800 g
Unit Type of Package 2	S02
Number of Units in Package 2	14
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.399 kg
Contractual warranty
Warranty (in months)	18
