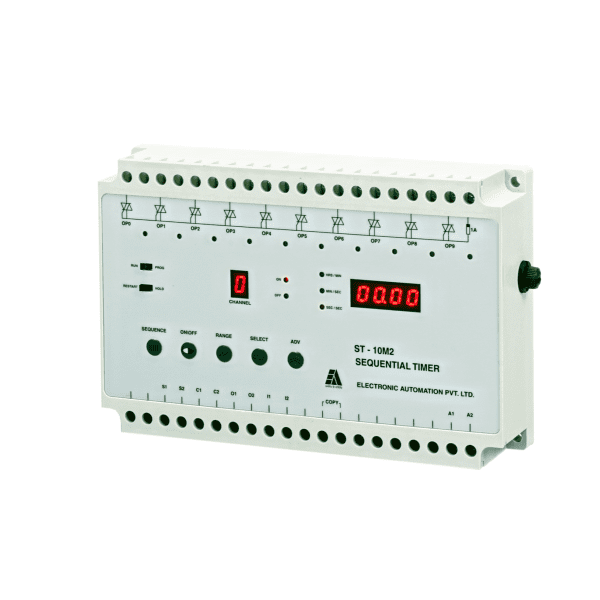

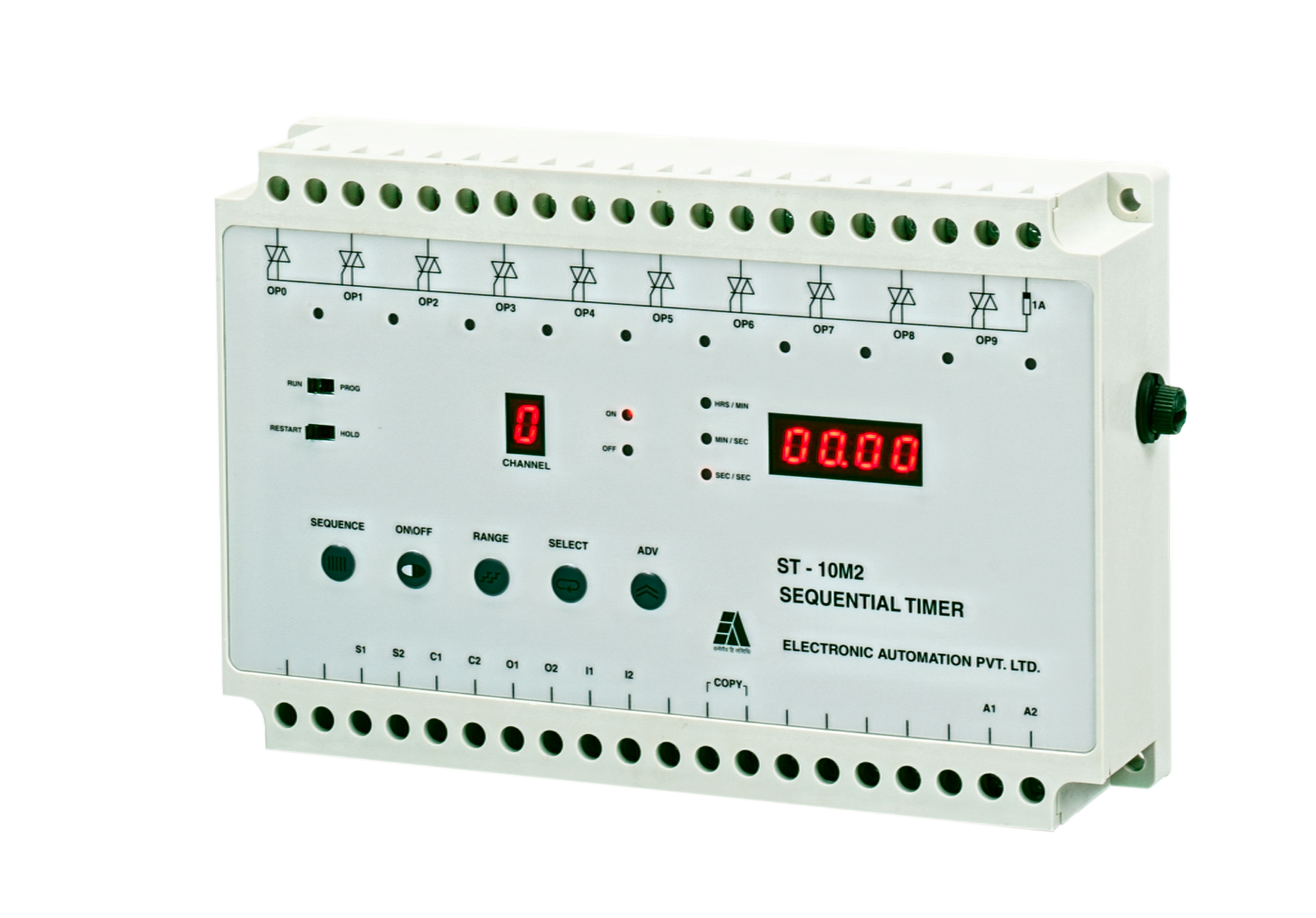

ST-10M2(IP) – 10 Channel Sequential Timer with Triac, IP66 Rating
Key Features:
- 10 Independent Channels for precise sequential control
- Industrial-Grade IP66 Enclosure – Dustproof and waterproof
- 1 Triac per Channel for reliable switching (up to 5A per channel)
- Programmable Sequential Timing with adjustable delay between channels
- Wide Voltage Range (110V-240V AC) for global compatibility
- LED Status Indicators for each channel operation
- DIN Rail Mountable for easy installation
- Fire-Retardant ABS Housing for enhanced safety
Technical Specifications:
| Parameter | Specification |
|---|---|
| Channels | 10 Independent |
| Switching Type | Triac (1 per channel) |
| Load Capacity | 5A per channel (resistive load) |
| Timer Range | 0.1 sec to 999 hours (per channel) |
| Sequential Delay | Adjustable 0-999 sec between channels |
| Protection Rating | IP66 (Dustproof & Waterproof) |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 144mm × 90mm × 58mm |
Applications:
- Industrial automation systems
- Lighting sequence control
- Motor/pump sequential startups
- HVAC control systems
- Advertising display timing
- Aquarium/terrarium equipment control
Why Choose Our 10 Channel Sequential Timer?
The ST-10M2(IP) industrial timer provides reliable sequential control for demanding applications. With its rugged IP66 enclosure and triac-based switching, this timer delivers precision timing in harsh environments. Each of the 10 channels operates independently with adjustable delays, making it ideal for complex sequencing requirements in automation, lighting, and equipment control systems.
Premium Construction for Industrial Use
Built with fire-retardant ABS material and featuring screw-type terminals, this timer withstands industrial conditions while ensuring secure connections. The clear LED indicators provide instant status feedback for all channels, while the DIN rail mounting allows for easy integration into control panels.
