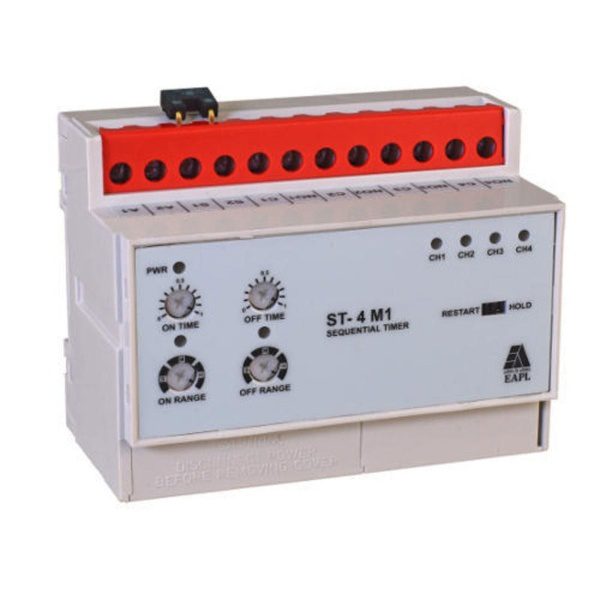

ST-4M1 | 4-Channel Sequential Timer with Relay Output (1C-NO per Channel) – EAPL
Key Features:
- 4 Independent Channels: Control multiple devices sequentially with precise timing.
- Sequential Timer: Programmable delay between channel activation for automated operations.
- 1 Changeover (NO) Relay per Channel: 1C-NO relay (10A/250V AC) for each channel for reliable switching.
- Wide Voltage Range: Operates on 110V-240V AC, 50/60Hz for universal compatibility.
- Adjustable Timing: Each channel supports adjustable ON/OFF delays (0.1s to 9999s).
- LED Indicators: Visual status display for each channel and power supply.
- Compact & DIN Rail Mountable: Easy installation in control panels or enclosures.
- Industrial-Grade Build: Durable design for long-term reliability in harsh environments.
Applications:
- Industrial automation (motor sequencing, conveyor systems).
- Lighting control (sequential stage lighting, signage).
- HVAC systems (pump/fan sequencing).
- Lab equipment automation.
- Security system delays.
Specifications:
| Model | ST-4M1 (EAPL) |
|---|---|
| Channels | 4 |
| Relay Type | 1C-NO (10A/250V AC per channel) |
| Timer Range | 0.1s to 9999s per channel |
| Input Voltage | 110V-240V AC, 50/60Hz |
| Mounting | DIN Rail (35mm) |
| Dimensions | 90mm x 70mm x 60mm (LxWxH) |
| Weight | Approx. 300g |
Package Includes:
- 1 x ST-4M1 4-Channel Sequential Timer
- 1 x User Manual
- DIN Rail Clip (Pre-installed)
Note: For optimal performance, ensure proper load ratings and consult the manual before installation.
“`
