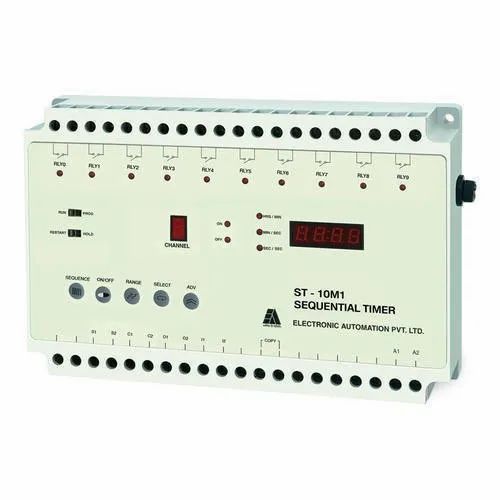

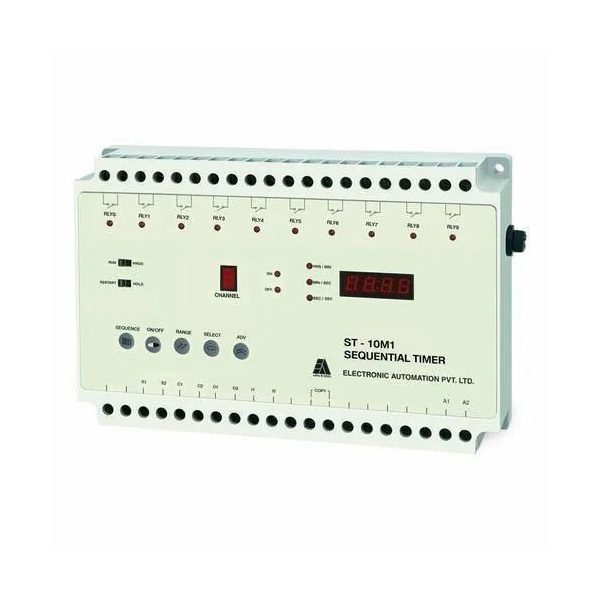

ST10-P1 | 10-Channel Sequential Timer with Purging Feedback Relay
Key Features:
- 10 Independent Channels for precise sequential timing control
- Purging Feedback Relay for enhanced system monitoring
- 1 Relay per Channel (1C-NO configuration) for reliable switching
- Sequential Timing Operation for automated processes
- EAPL Certified for quality assurance
- LED Indicators for channel status monitoring
- Compact DIN Rail Mounting for easy installation
- Wide Voltage Compatibility for versatile applications
Technical Specifications:
| Parameter | Specification |
|---|---|
| Channels | 10 Independent Channels |
| Relay Configuration | 1C-NO per channel (10 relays total) |
| Timer Range | Adjustable 0.1s to 9999s (channel dependent) |
| Input Voltage | 110-240V AC/DC (wide range compatible) |
| Relay Rating | 5A @ 250V AC / 5A @ 30V DC |
| Mounting | Standard DIN Rail (35mm) |
| Dimensions | 90mm x 70mm x 60mm (WxHxD) |
| Certification | EAPL, CE, RoHS Compliant |
Applications:
- Industrial automation systems
- Purging and ventilation control
- Sequential motor starting
- Process control systems
- Lighting control applications
- HVAC system sequencing
Package Includes:
- 1 x ST10-P1 10-Channel Timer Unit
- 1 x User Manual
- 1 x DIN Rail Clip
- 1 x Warranty Card
Why Choose Our 10-Channel Sequential Timer?
The ST10-P1 industrial timer offers reliable sequential control for complex automation needs. With its purging feedback relay and 10 independent channels, this EAPL-certified timer provides precise timing solutions for industrial applications, HVAC systems, and process automation. The compact DIN rail design ensures easy installation in control panels, while the LED indicators offer clear operational status at a glance.
Industrial-Grade Performance
Designed for demanding environments, our 10-channel timer delivers consistent performance with its high-quality relays and robust construction. The sequential timing function allows for automated process control, reducing manual intervention and improving system efficiency.
