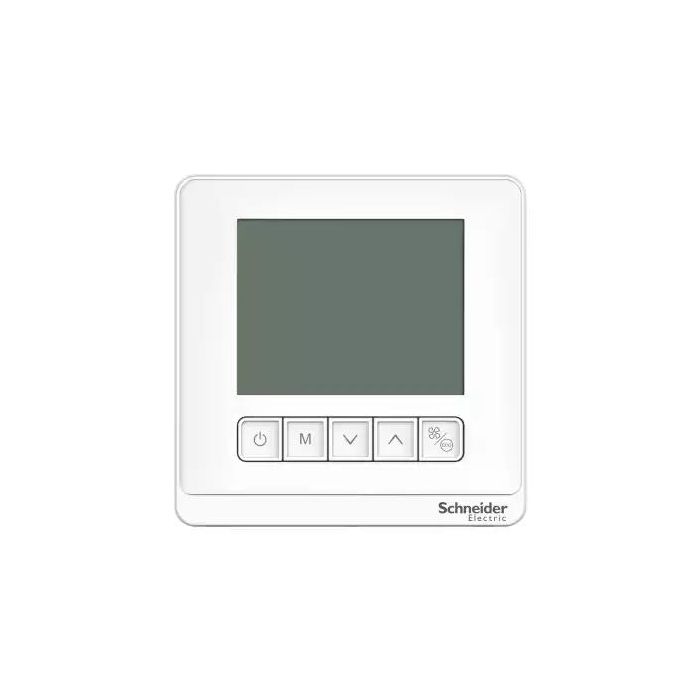

TC903-3A2L | Tstat,Fcu,Lcd,2P,240V,Wt – Schneider Electric

Name: TC903-3A2L | Tstat,Fcu,Lcd,2P,240V,Wt - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TC903-3A2L
Price: 3837.86 INR
Availability: BackOrder

SKU: TC903-3A2L

Original price was: ₹6,617.00.Current price is: ₹3,837.86. Excl. GST

Dispatch By : 5 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric TC903-3A2L is a fcu / thermostat controller from the SpaceLogic range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 240V AC, 2 Poles, IP20. Buy the TC903-3A2L | Tstat,Fcu,Lcd,2P,240V,Wt online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TC903-3A2L
Category	FCU / Thermostat Controller
Main
Range	SpaceLogic
Product name	SpaceLogic TC900
Device short name	TC903
Product or component type	Thermostat
Sensor type	100 kOhm NTC thermistor
Complementary
Device application	Fan
Product specific application	2-pipe system
[Us] rated supply voltage	90…240 V AC 50/60 Hz
Network frequency	50 Hz 60 Hz
Max power consumption in W	1 W
Communication port protocol	–
Function available	Setpoint adjustment Fan control Mode selection Economiser Disable functions Alarm Low temperature protection
Colour	White
Housing colour	White
Control type	mechanical, for thermostat 2 positions ON-OFF button, for actuator 3 speed control relay, for fan
Display type	Backlit LCD screen
Information displayed	Ambient room temperature 0 to 50 °C Time Day Temperature alarm Communication status ok Current program
Measurement accuracy	Temperature: +/- 1 °C,
Output voltage	240 V AC 5 A for relay 240 V AC 2 A for load
Connections – terminals	Screw terminal (back) – 2 cable(s) 1.5 mm² Screw terminal (back) – 1 cable(s) 2.5 mm²
Width	86 mm
Depth	40 mm
Height	86 mm
Market segment	Small buildings Hotel Healthcare Residential
Environment
Temperature setting range	5…35 °C
Relative humidity	5…95 %
Ambient air temperature for operation	0…50 °C
Standards	EN/IEC 60730-1 EN/IEC 60730-2-9
Product certifications	CE
IP degree of protection	IP20
Pollution degree	2
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	10.500 cm
Package 1 Length	12.300 cm
Package 1 Weight	220.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	9.420 kg
Unit Type of Package 3	P12
Number of Units in Package 3	864
Package 3 Height	105.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	241.080 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

240V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
