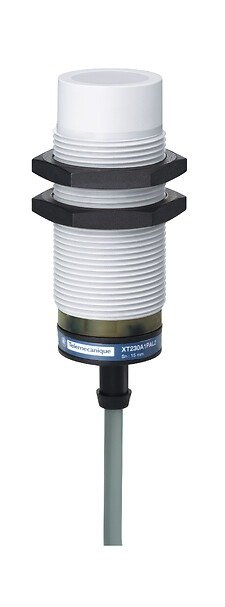

XT230A1PAL2 – Capacitive Proximity Sensor

Product Overview

The XT230A1PAL2 is a high-performance capacitive proximity sensor from the Telemecanique Sensors XT series. Designed for industrial applications, this sensor offers reliable detection of both metallic and non-metallic objects. Its cylindrical M30 plastic housing ensures durability and resistance to harsh environments.

Key Features

• Type: Capacitive Proximity Sensor
• Series: XT
• Housing: Cylindrical, M30, Plastic
• Sensing Distance (Sn): 15 mm
• Cable Length: 2 meters
• Output Type: PNP Normally Open (NO)
• Operating Voltage: 10-30 V DC
• Current Consumption: ≤ 15 mA
• Switching Frequency: 50 Hz
• Protection Rating: IP67
• Temperature Range: -25°C to +70°C
• Connection: 2-meter PVC cable with 3-pin M12 connector
• Material: Plastic housing with nickel-plated brass sensing face
• Compliance: CE, RoHS, and other international standards

Applications

The XT230A1PAL2 is ideal for use in various industrial environments, including:

• Liquid level detection
• Material handling
• Packaging machinery
• Food and beverage industry
• Automotive manufacturing

Benefits

• High reliability and accuracy in detecting objects
• Robust construction for demanding environments
• Easy installation and integration
• Wide operating temperature range
• Compliance with international standards for safety and quality

Technical Specifications

Additional Information

For more details, including installation guidelines and wiring diagrams, refer to the official product manual or contact Telemecanique Sensors support.
