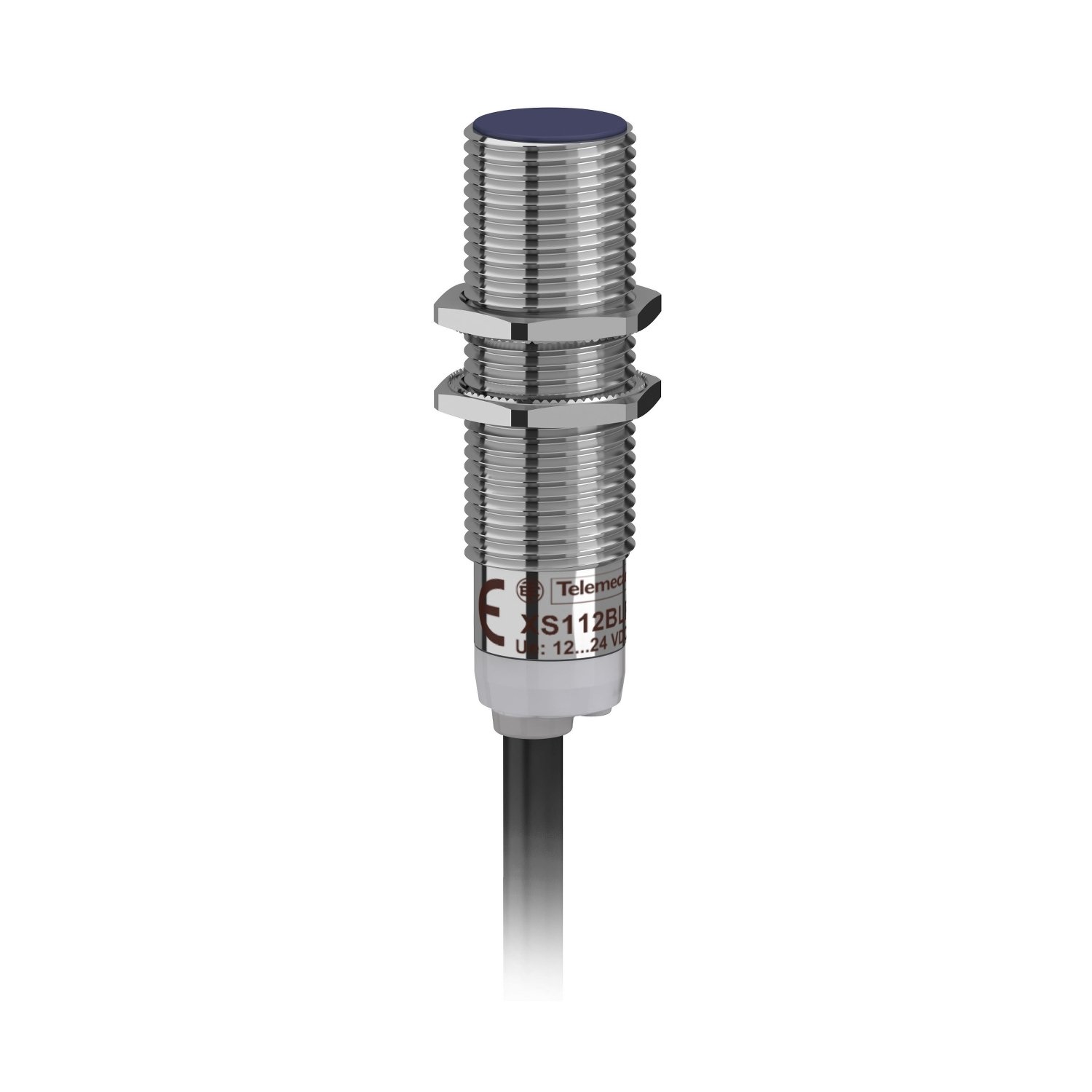

Inductive Sensor XS112B3PAL2
Product Overview
The XS112B3PAL2 is a high-performance inductive sensor from the XS1 series by Telemecanique Sensors. Designed for industrial applications, this sensor offers reliable detection of metallic objects with a sensing range of up to 4 mm. Its robust construction and precise performance make it suitable for demanding environments.
Key Features
- Series: XS1
- Model: XS112B3PAL2
- Body Material: Brass
- Length: 37 mm
- Sensing Distance (Sn): 4 mm
- Operating Voltage: 12..24 VDC
- Cable Length: 2 meters
- Output Type: PNP Normally Open (NO)
- Housing Diameter: M12
- Protection Rating: IP67
- Temperature Range: -25°C to +70°C
- Connection: Pre-wired cable
Applications
The XS112B3PAL2 inductive sensor is ideal for use in various industrial applications, including:
- Position detection
- Object counting
- Machine automation
- Conveyor systems
- Robotics
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 12..24 VDC |
| Current Consumption | ≤ 15 mA |
| Switching Frequency | 1 kHz |
| Hysteresis | ≤ 10% of Sn |
| Protection Class | IP67 |
| Housing Material | Brass |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Additional Information
For more details, including installation guidelines and wiring diagrams, refer to the product datasheet or contact Telemecanique Sensors support.
