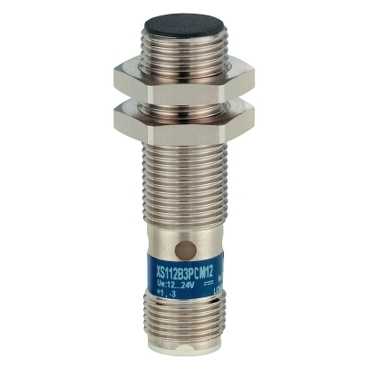

Inductive Sensor XS112B3PAM12
Product Overview
The XS112B3PAM12 is a high-performance inductive sensor from the XS1 series by Telemecanique Sensors. Designed for industrial applications, this sensor offers reliable detection of metallic objects with a sensing range of up to 4mm. Its robust construction and precise engineering make it suitable for harsh environments.
Key Features
- Series: XS1
- Model: XS112B3PAM12
- Body Material: Brass
- Length: 50mm
- Sensing Distance (Sn): 4mm
- Operating Voltage: 12..24VDC
- Connection Type: M12 Connector
- Output Type: PNP (Normally Open)
- IP Rating: IP67 (Dust and Waterproof)
- Temperature Range: -25°C to +70°C
- Housing: Shielded
- Mounting: Flush or Non-Flush Mounting
Applications
The XS112B3PAM12 is ideal for use in various industrial applications, including:
- Automation systems
- Conveyor systems
- Machine tools
- Packaging machinery
- Material handling
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 12..24VDC |
| Current Consumption | ≤ 15mA |
| Switching Frequency | 1kHz |
| Hysteresis | ≤ 10% of Sn |
| Protection Class | IP67 |
| Connection | M12, 4-pin |
Compliance and Certifications
- CE Certified
- RoHS Compliant
Warranty
This product comes with a standard manufacturer warranty of 2 years.
