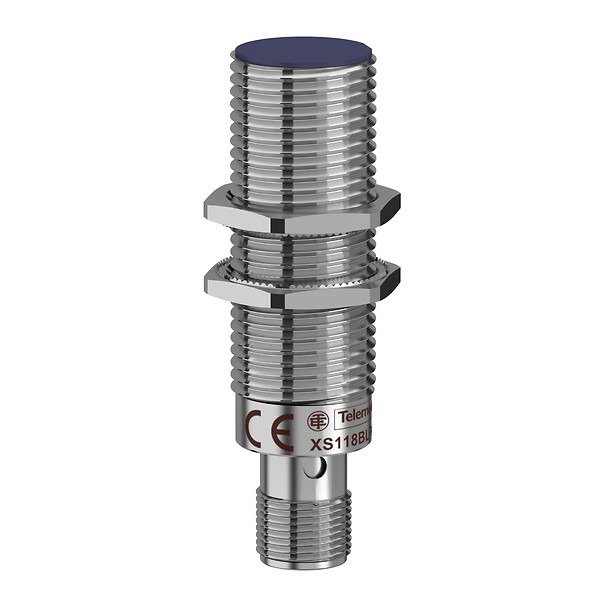

Inductive Sensor XS1 M18 – XS118BHPAM12
Product Overview
The XS118BHPAM12 is a high-performance inductive sensor from the XS1 series by Telemecanique Sensors. Designed for industrial applications, this sensor offers reliable detection of metallic objects with precision and durability.
Key Features
- Model: XS118BHPAM12
- Series: XS1
- Type: Inductive Sensor
- Housing Material: Brass
- Housing Diameter: M18
- Length: 64mm
- Sensing Distance: 8mm (Sn)
- Operating Voltage: 12..24VDC
- Connection Type: M12 Connector
- Output Type: PNP Normally Open (NO)
- Protection Rating: IP67
- Temperature Range: -25°C to +70°C
- Mounting: Flush or Non-Flush Mounting
- Application: Suitable for detecting metallic objects in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Housing Material | Brass |
| Housing Diameter | M18 |
| Length | 64mm |
| Sensing Distance | 8mm |
| Operating Voltage | 12..24VDC |
| Connection Type | M12 Connector |
| Output Type | PNP Normally Open (NO) |
| Protection Rating | IP67 |
| Temperature Range | -25°C to +70°C |
Applications
The XS118BHPAM12 inductive sensor is ideal for use in various industrial applications, including:
- Automation systems
- Conveyor systems
- Machine tools
- Packaging machinery
- Robotics
Benefits
- High durability with brass housing
- Reliable detection of metallic objects
- Compact design for easy integration
- Wide operating voltage range
- IP67 protection for use in harsh environments
Contact Information
For more information or to place an order, please contact your local Telemecanique Sensors distributor or visit the official website.
