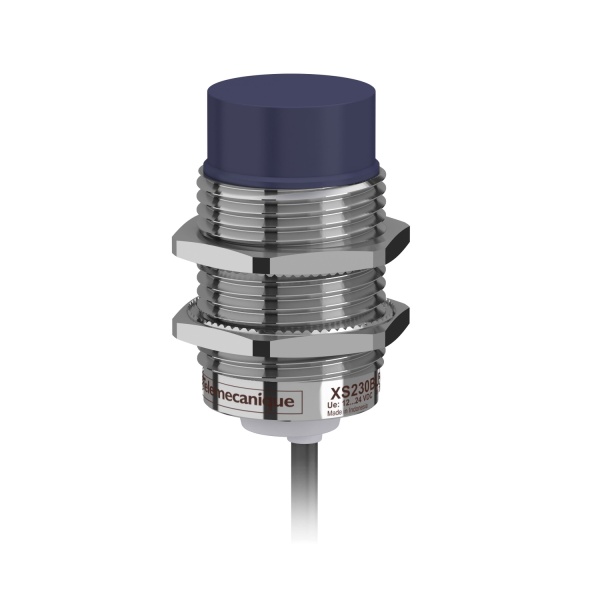

Product Description – XS230BLPAL2 | Inductive Sensor XS2 M30
Overview
The XS230BLPAL2 is a high-performance inductive sensor from the XS2 series by Telemecanique Sensors. Designed for industrial applications, this sensor offers reliable detection of metallic objects with precision and durability.
Key Features
- Model: XS230BLPAL2
- Series: XS2
- Type: Inductive Sensor
- Body Material: Brass
- Housing Diameter: M30
- Length: 57mm
- Sensing Distance: 15mm (Sn)
- Operating Voltage: 12..24VDC
- Cable Length: 2 meters
- Output Type: PNP Normally Open (NO)
- Protection Rating: IP67
- Temperature Range: -25°C to +70°C
- Connection: Cable with 3-wire configuration
- Mounting: Flush or non-flush mounting options
Applications
The XS230BLPAL2 inductive sensor is ideal for use in various industrial environments, including:
- Automation systems
- Conveyor systems
- Machine tools
- Packaging machinery
- Material handling
Benefits
- High reliability and accuracy in detecting metallic objects
- Robust brass housing for durability in harsh environments
- Wide operating voltage range for versatile applications
- Easy installation with M30 threaded housing
- Long cable length for flexible mounting options
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 12..24VDC |
| Current Consumption | < 15mA |
| Output Current | 200mA max |
| Switching Frequency | 1kHz |
| Hysteresis | < 10% of Sn |
| Protection Rating | IP67 |
| Temperature Range | -25°C to +70°C |
Warranty and Support
This product comes with a standard manufacturer’s warranty. For technical support or warranty claims, please contact Telemecanique Sensors directly or your local distributor.
