Product Description

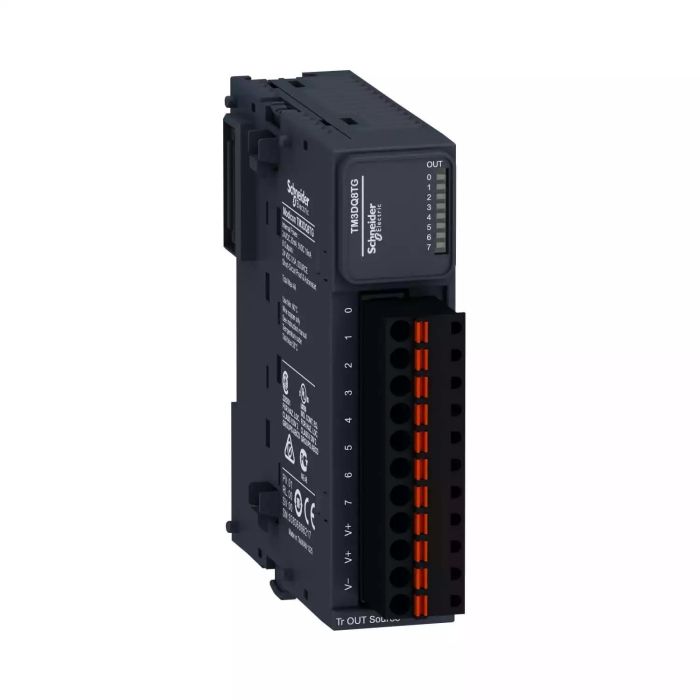

The TM3DQ8TG is a high-performance digital output module from Schneider Electric’s Modicon TM3 series. Designed for industrial automation, this module features 8 transistor PNP outputs with spring terminals for secure and reliable connections.

Key Features:

• 8 PNP Transistor Outputs – Provides reliable switching for various industrial applications.
• Spring Terminal Connection – Ensures quick and tool-free wiring for easy installation.
• Compact Design – Space-saving module suitable for control panels with limited space.
• High Performance – Fast response time for precise control of connected devices.
• Compatible with TM3 Base – Seamlessly integrates with other TM3 I/O modules.
• LED Indicators – Visual status indication for each output channel.

Technical Specifications:

• Brand: Schneider Electric
• Model: TM3DQ8TG
• Type: Digital Output Module
• Number of Outputs: 8
• Output Type: PNP Transistor
• Terminal Type: Spring Clamp
• Voltage Range: 24V DC
• Current per Output: 0.5A
• Protection: Short-circuit and overload protection

Applications:

Ideal for use in industrial automation systems, manufacturing plants, and control applications requiring reliable digital outputs. Commonly used for controlling solenoids, relays, indicators, and other DC loads.

Compatibility:

Compatible with all Modicon TM3 bases and can be used with other TM3 I/O modules to create a complete automation solution. Works with Schneider Electric’s programmable logic controllers in the Modicon series.
