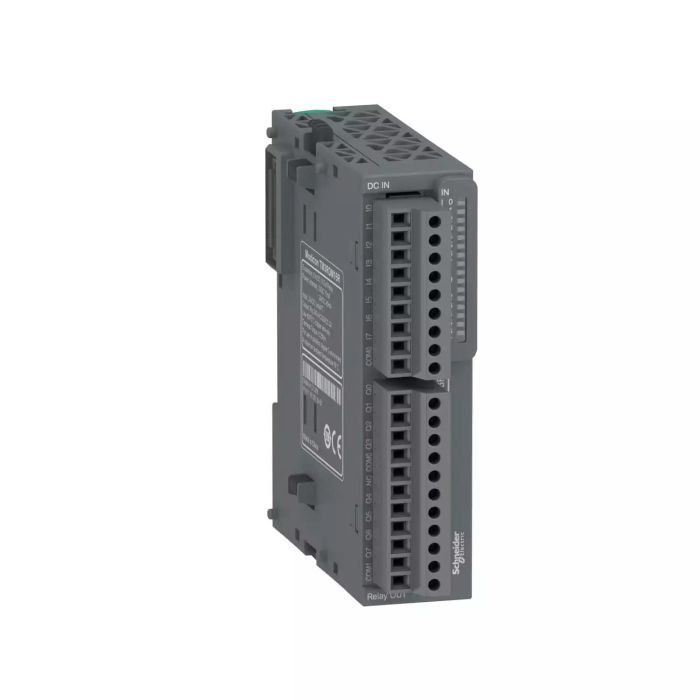

The Schneider Electric TM3RDM16R is a plc i/o module from the Modicon TM3 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Buy the TM3RDM16R | TM3.DC I O 8 INPUT online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM3RDM16R
Category	PLC I/O Module
Main
Range of product	Modicon TM3
Product or component type	Discrete I/O module
Range compatibility	Modicon Easy M200
Discrete input number	8
Discrete input voltage	24 V DC
Discrete input logic	Sink or source (positive/negative)
Discrete output logic	Positive or negative
Complementary
Discrete input compatibility	8 conforming to IEC 61131-2 Type 1
Discrete input current	5 mA input
Voltage state 1 guaranteed	Input: 15…28.8 V
Voltage state 0 guaranteed	0…5 V input
Current state 1 guaranteed	>= 2.5 mA input
Current state 0 guaranteed	<= 1 mA input
Input impedance	4.7 kOhm
Discrete output number	8 at 24 V DC at 240 V AC
Discrete output current	2000 mA relay output
Mechanical durability	20000000 cycles
Typical current consumption	70 mA at 5 V DC 40 mA at 24 V DC
Electrical connection	11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs 9 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
Maximum cable distance between devices	Unshielded cable: <50 m for input Unshielded cable: <150 m for output
Local signalling	1 LED per channel (green) for I/O state
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	27.4 mm
Depth	84.6 mm
Product weight	0.118 kg
Environment
Protective treatment	None
Marking	CE
Ambient air temperature for operation	0…55 °C (horizontal installation)
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation 10…95 % without condensation for storage
Operating altitude	0…2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5…8.4 Hz) on DIN rail 3 gn (f = 8.4…150 Hz) on DIN rail 3.5 mm (f = 5…8.4 Hz) on panel mounting 3 gn (f = 8.4…150 Hz) on panel mounting
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.400 cm
Package 1 Width	7.200 cm
Package 1 Length	10.300 cm
Package 1 Weight	190.000 g
Unit Type of Package 2	S04
Number of Units in Package 2	33
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	6.920 kg
Unit Type of Package 3	P06
Number of Units in Package 3	132
Package 3 Height	75.000 cm
Package 3 Width	80.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	35.680 kg
Contractual warranty
Warranty (in months)	18
