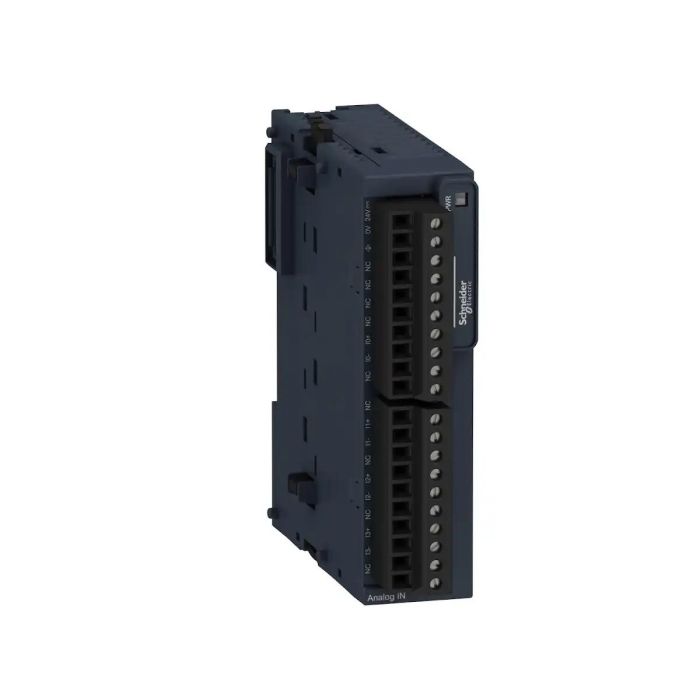

TM3TI4 | MODULE TM3-4 INPUTS TEMPERATURE – Schneider Electric

Name: TM3TI4 | MODULE TM3-4 INPUTS TEMPERATURE - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TM3TI4
Price: 18168.48 INR
Availability: BackOrder

SKU: TM3TI4

Original price was: ₹50,468.00.Current price is: ₹18,168.48. Excl. GST

Dispatch By : 1 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric TM3TI4 is a plc i/o module from the Modicon TM3 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP20. Buy the TM3TI4 | MODULE TM3-4 INPUTS TEMPERATURE online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM3TI4
Category	PLC I/O Module
Main
Range of product	Modicon TM3
Product or component type	Analog input module
Range compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
Analogue input number	4
Complementary
Analogue input type	Current 4…20 mA Current 0…20 mA Voltage 0…10 V Voltage – 10…10 V Thermocouple – 200…1000 °C thermocouple J Thermocouple – 200…1300 °C thermocouple K Thermocouple 0…1760 °C thermocouple R Thermocouple 0…1760 °C thermocouple S Thermocouple 0…1820 °C thermocouple B Thermocouple – 200…400 °C thermocouple T Thermocouple – 200…1300 °C thermocouple N Thermocouple – 200…800 °C thermocouple E Thermocouple 0…2315 °C thermocouple C Temperature probe – 60…180 °C Ni 100/Ni 1000 Temperature probe – 200…850 °C Pt 100 Temperature probe – 200…600 °C Pt 1000
Analogue input resolution	16 bits 15 bits + sign
Permissible continuous overload	13 V, analogue input type: voltage 40 mA, analogue input type: current
Input impedance	<= 50 Ohm >= 1 MOhm
Sampling duration	10 ms
Conversion time	100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple
Absolute accuracy error	+/- 0.2 % of full scale at 25 °C for analogue input voltage/current +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.2 % of full scale at 25 °C for thermocouple C 0…2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0…200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200…1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300…1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0…1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0…1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0…800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0…400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0…1300 °C
Repeat accuracy	+/-0.5 %FS
Cross talk	<= 1 LSB
Type of cable	Twisted shielded pairs cable <30 m for input circuit
Electrical connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
LSB value	2.44 mV, 0…10 V 4.88 mV, – 10…10 V 4.88 µA, 0…20 mA 3.91 µA, 4…20 mA 0.1 °C
Insulation	Between output and supply at 1500 V AC Between output and internal logic at 500 V AC
Immunity to microbreaks	10 ms
Temperature drift	+/- 0.01 %FS/°C
Non-linearity	+/- 0.2 %FS
Typical current consumption	45 mA at 5 V DC 50 mA at 5 V DC 35 mA at 24 V DC 40 mA at 24 V DC
Local signalling	1 LED green for PWR
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.6 mm
Depth	70 mm
Product weight	0.11 kg
Environment
IP degree of protection	IP20
Marking	CE
Product certifications	CE UKCA RCM EAC CULus CULus HazLoc
Standards	IEC 61131-2
Electromagnetic emission	Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
Ambient air temperature for operation	-10…55 °C (horizontal installation) -10…35 °C (vertical installation)
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation
Operating altitude	0…2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5…8.4 Hz) on DIN rail 3 gn (f = 8.4…150 Hz) on DIN rail
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	10.500 cm
Package 1 Length	12.500 cm
Package 1 Weight	196.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	9
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.168 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
