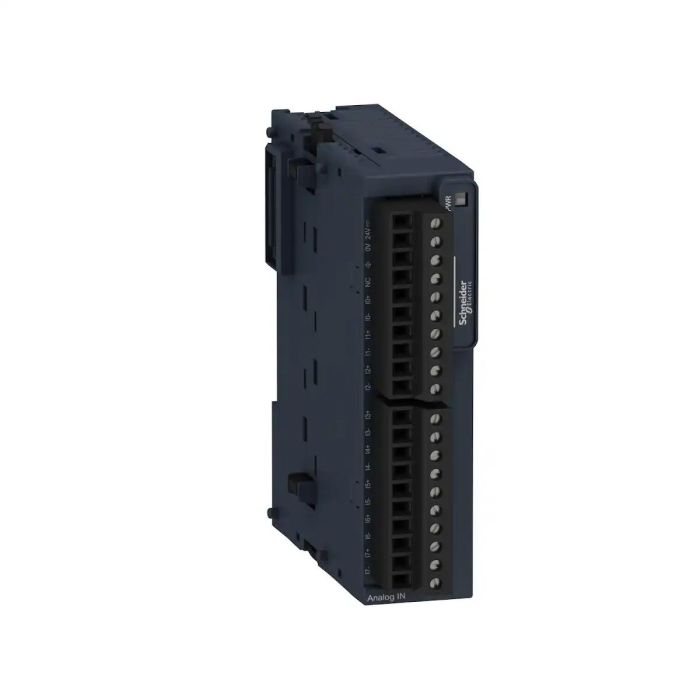

The Schneider Electric TM3TI8T is a plc i/o module from the Modicon TM3 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP20. Buy the TM3TI8T | MODULE TM3-8 INPUTS TEMPERATURE online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM3TI8T
Category	PLC I/O Module
Main
Range of product	Modicon TM3
Product or component type	Analog input module
Range compatibility	Modicon M221 Modicon M241 Modicon M251 Modicon M262
Analogue input number	8
Complementary
Analogue input type	Thermocouple – 200…1000 °C thermocouple J Thermocouple – 200…1300 °C thermocouple K Thermocouple 0…1760 °C thermocouple R Thermocouple 0…1760 °C thermocouple S Thermocouple 0…1820 °C thermocouple B Thermocouple – 200…400 °C thermocouple T Thermocouple – 200…1300 °C thermocouple N Thermocouple – 200…800 °C thermocouple E Thermocouple 0…2315 °C thermocouple C Thermistor -90…150 °C NTC 10k Thermistor 100…10000 Ohm PTC Thermocouple – 200…1000 °C
Analogue input resolution	16 bits 15 bits + sign
Input impedance	>= 1 MOhm
Sampling duration	100 ms
Conversion time	100 ms + 100 ms per channel + 1 controller cycle time
Absolute accuracy error	+/- 0.2 % of full scale at 25 °C for thermocouple C 0…2315 °C +/- 6 °C at 25 °C for thermocouple R, S 0…200 °C +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200…1760 °C +/- 0.2 % of full scale at 25 °C for thermocouple B 300…1820 °C +/- 0.4 % of full scale at 25 °C for thermocouple K – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple K 0…1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple J 0…1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple E 0…800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple T 0…400 °C +/- 0.4 % of full scale at 25 °C for thermocouple N – 200…0 °C +/- 0.2 % of full scale at 25 °C for thermocouple N 0…1300 °C
Repeat accuracy	+/-0.5 %FS
Cross talk	<= 1 LSB
Type of cable	Twisted shielded pairs cable <30 m for input circuit
Electrical connection	10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
LSB value	0.1 °C 1 Ohm
Insulation	Between output and supply at 1500 V AC Between output and internal logic at 500 V AC
Immunity to microbreaks	10 ms
Temperature drift	+/- 0.01 %FS/°C
Non-linearity	+/- 0.2 %FS
Typical current consumption	30 mA at 24 V DC 45 mA at 5 V DC 40 mA at 5 V DC
Local signalling	1 LED green for PWR
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.6 mm
Depth	70 mm
Product weight	0.11 kg
Environment
IP degree of protection	IP20
Marking	CE
Product certifications	CE UKCA RCM EAC CULus CULus HazLoc
Standards	IEC 61131-2
Electromagnetic emission	Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
Ambient air temperature for operation	-10…55 °C (horizontal installation) -10…35 °C (vertical installation)
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation
Operating altitude	0…2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5…8.4 Hz) on DIN rail 3 gn (f = 8.4…150 Hz) on DIN rail
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.516 cm
Package 1 Width	10.685 cm
Package 1 Length	12.739 cm
Package 1 Weight	210.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	9
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	2.391 kg
Unit Type of Package 3	P06
Number of Units in Package 3	432
Package 3 Height	105 cm
Package 3 Width	120 cm
Package 3 Length	80 cm
Package 3 Weight	122 kg
Contractual warranty
Warranty (in months)	18
