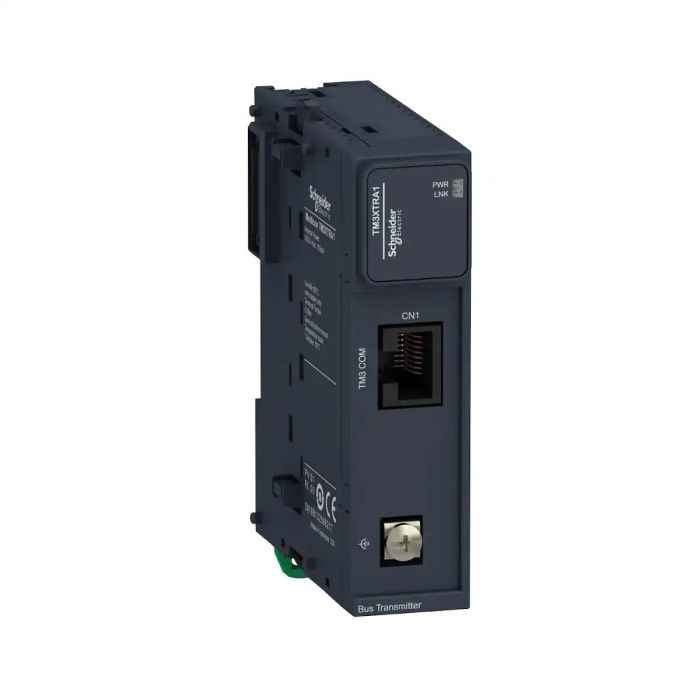

The Schneider Electric TM3XTRA1 is a plc i/o module from the Modicon TM3 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP20. Buy the TM3XTRA1 | MODULE TM3-BUS TRANSMITTER online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TM3XTRA1
Category	PLC I/O Module
Main
Range of product	Modicon TM3
Product or component type	Remote transmitter module
Range compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262
Complementary
Current consumption	100 mA at 5 V DC via bus connector at state on 30 mA at 5 V DC via bus connector at state off
Maximum power dissipation in W	0.6 W
Cable distance between devices	0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
Electrical connection	RJ45 connector for connecting the bus receiver Screw connector terminal for connecting the functional ground
Local signalling	1 LED green for power supply 1 LED green for Link (Link Status)
Electromagnetic emission	Radiated emissions – test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 Radiated emissions – test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
Mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height	90 mm
Width	23.65 mm
Depth	73.3 mm
Product weight	0.065 kg
Environment
IP degree of protection	IP20
Marking	CE
Product certifications	Merchant Navy C-Tick GOST CSA HazLoc CE UKCA RCM EAC CULus
Standards	CSA C22.2 No 213 Class I Division 2 Group A CSA C22.2 No 213 Class I Division 2 Group B CSA C22.2 No 213 Class I Division 2 Group C CSA C22.2 No 213 Class I Division 2 Group D UL 1604 Class 1 Division 2 CSA C22.2 No 142 IEC 61131-2 UL 508
Ambient air temperature for operation	-10…55 °C (horizontal installation) -10…50 °C (vertical installation)
Ambient air temperature for storage	-40…70 °C
Relative humidity	5…95 % without condensation
Operating altitude	0…2000 m
Pollution degree	2
Vibration resistance	3.5 mm (f = 5…8.4 Hz) on DIN rail 3 gn (f = 8.4…150 Hz) on DIN rail 3.5 mm (f = 5…8.4 Hz) on panel mounting 3 gn (f = 8.4…150 Hz) on panel mounting
Shock resistance	15 gn for 11 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	10.700 cm
Package 1 Length	12.700 cm
Package 1 Weight	166.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.721 kg
Contractual warranty
Warranty (in months)	18
