TMC2AQ2C | CARTRIDGE M221-2-ANALOG CURRENT OUTPUT - Schneider Electric - Image 1
Click to enlarge

TMC2AQ2C | CARTRIDGE M221-2-ANALOG CURRENT OUTPUT – Schneider Electric

SKU: TMC2AQ2C

Original price was: ₹24,723.00.Current price is: ₹8,900.28. Excl. GST

Dispatch By : 7 Weeks

Dispatch By : 7 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: TMC2AQ2C

Same-day dispatch · GST invoice available

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-49%

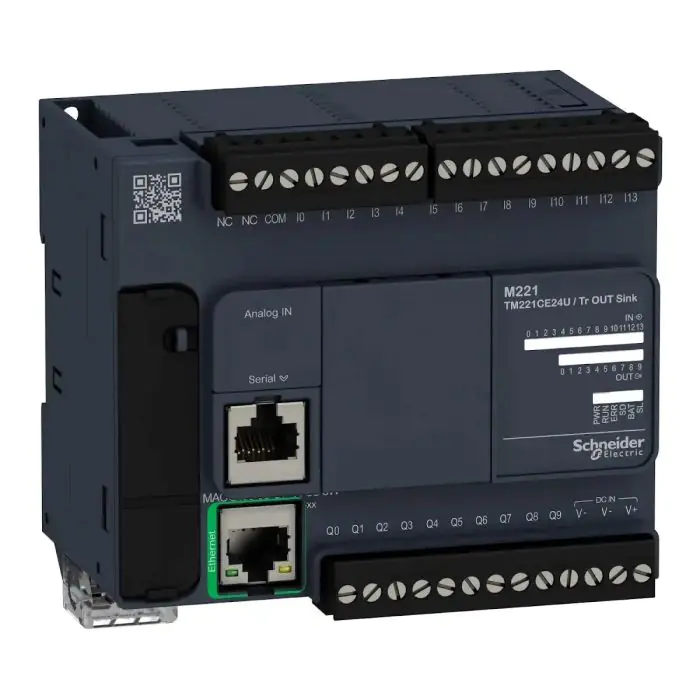

TM221CE24U | CONTROLLER M221-24IO TR.NPN ETHERNET – Schneider Electric

Schneider Electric
Original price was: ₹62,601.00.Current price is: ₹31,926.51. Excl. GST
Add to basket
SKU: TM221CE24U
-49%

TM221CE40T | CONTROLLER M221-40IO Tr.PNP Ethernet Com – Schneider Electric

Schneider Electric
Original price was: ₹102,631.00.Current price is: ₹52,341.81. Excl. GST
Add to basket
SKU: TM221CE40T
-49%

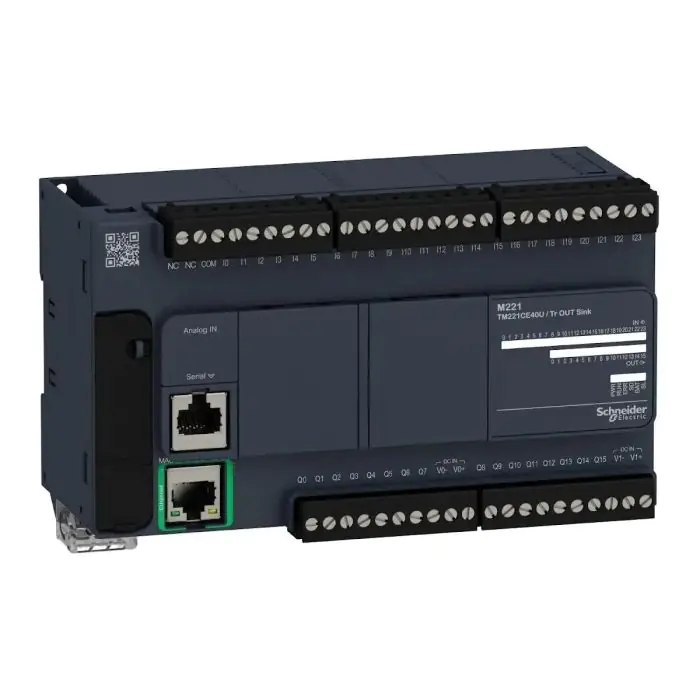

TM221CE40U | CONTROLLER M221-40IO TR.NPN ETHERNET – Schneider Electric

Schneider Electric
Original price was: ₹102,631.00.Current price is: ₹52,341.81. Excl. GST
Add to basket
SKU: TM221CE40U
-49%

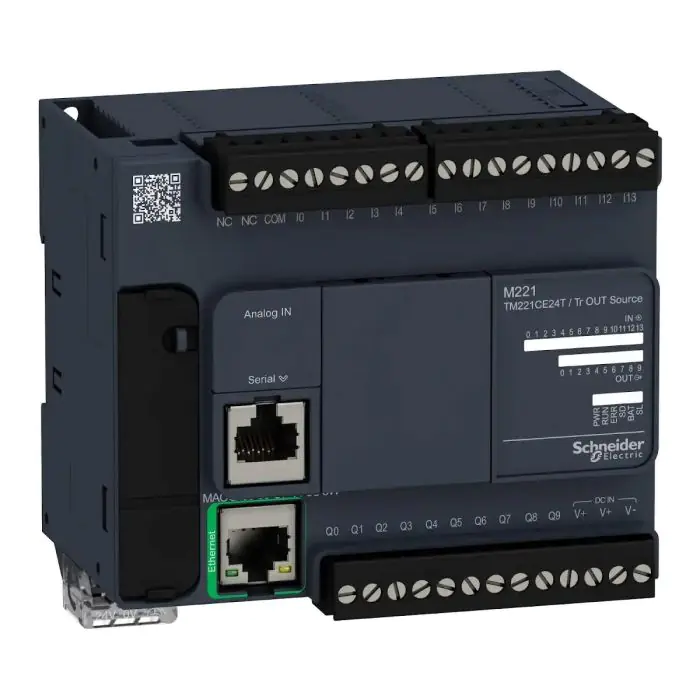

TM221CE24T | CONTROLLER M221-24IO Tr.PNP Ethernet Com – Schneider Electric

Schneider Electric
Original price was: ₹71,008.00.Current price is: ₹36,214.08. Excl. GST
Add to basket
SKU: TM221CE24T
-49%

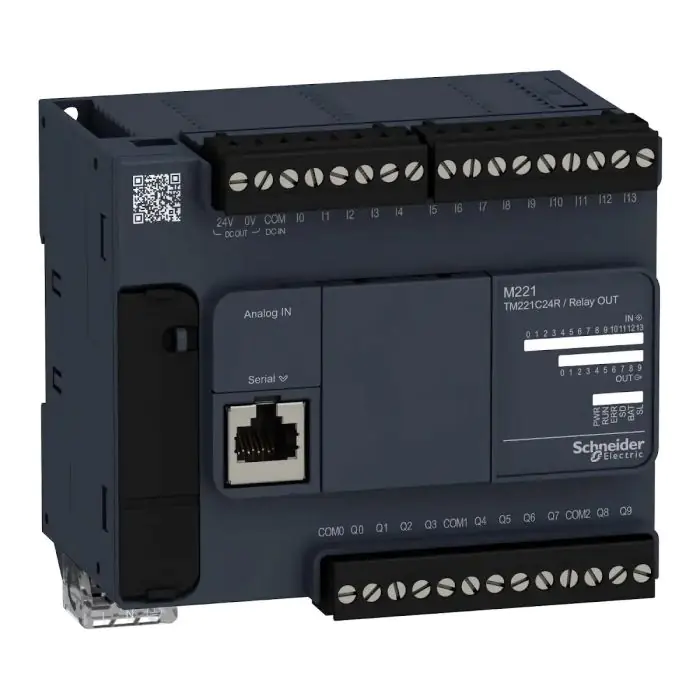

TM221C24R | CONTROLLER M221-24IO Relay Compact – Schneider Electric

Schneider Electric
Original price was: ₹59,754.00.Current price is: ₹30,474.54. Excl. GST
Add to basket
SKU: TM221C24R
-49%

TM221CE16R | CONTROLLER M221-16IO Relay Ethernet – Schneider Electric

Schneider Electric
Original price was: ₹59,787.00.Current price is: ₹30,491.37. Excl. GST
Add to basket
SKU: TM221CE16R
-49%

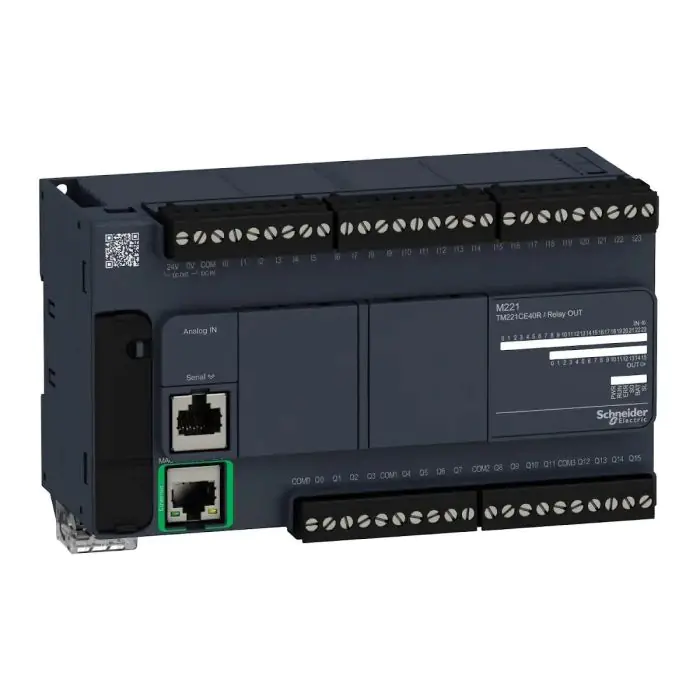

TM221CE40R | CONTROLLER M221-40IO Relay Ethernet Com. – Schneider Electric

Schneider Electric
Original price was: ₹100,312.00.Current price is: ₹51,159.12. Excl. GST
Add to basket
SKU: TM221CE40R

    Sourced through authorised channels, the Schneider Electric TMC2AQ2C electrical component from the Modicon M221 range delivers dependable performance for industrial, commercial, and infrastructure applications. myelectric.in stocks the TMC2AQ2C | CARTRIDGE M221-2-ANALOG CURRENT OUTPUT for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKUTMC2AQ2C
    CategoryElectrical Component
    Main
    Range of productModicon M221
    Product or component typeAnalogue output cartridge
    Product compatibilityModicon M221C
    Complementary
    Analogue output number2
    Analogue output typeCurrent: 4…20 mA
    Analogue output resolution12 bits
    LSB value3.91 µA 4…20 mA current
    load typeResistive
    Load impedance ohmic<= 500 Ohm
    Conversion time20 ms
    Stabilisation time40 ms
    Absolute accuracy error+/- 1 % of full scale
    +/- 0.3 % of full scale at 25 °C
    Temperature drift+/- 0.02 %FS/°C
    Repeat accuracy+/- 0.4 %FS
    Non-linearity+/- 0.01 %FS
    Cross talk<= 1 LSB
    Type of cableTwisted shielded pairs cable
    Electrical connection3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
    Maximum cable distance between devicesTwisted shielded pairs cable: <30 m for output
    InsulationNon-insulated between analogue output and internal logic
    Height41 mm
    Depth15 mm
    Width35 mm
    Product weight0.015 kg
    Environment
    Immunity to microbreaks10 ms
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height3.56 cm
    Package 1 Width5.08 cm
    Package 1 Length6.86 cm
    Package 1 Weight40 g
    Unit Type of Package 2S02
    Number of Units in Package 275
    Package 2 Height15 cm
    Package 2 Width30 cm
    Package 2 Length40 cm
    Package 2 Weight3.364 kg
    Unit Type of Package 3P12
    Number of Units in Package 32400
    Package 3 Height75 cm
    Package 3 Width120 cm
    Package 3 Length80 cm
    Package 3 Weight118 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    TM221C16RTM221C16TTM221C16UTM221C24RTM221C24TTM221C24UTM221C40RTM221C40TTM221C40UTM221CE16RTM221CE16TTM221CE16UTM221CE24RTM221CE24TTM221CE24UTM221CE40RTM221CE40TTM221CE40U
