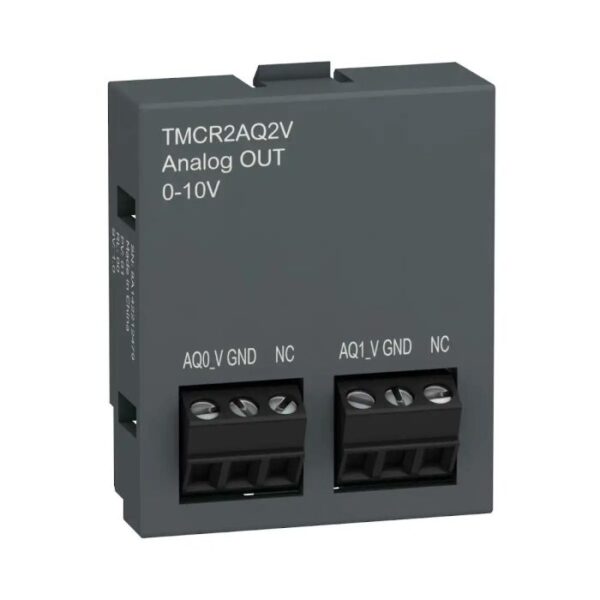

TMCR2AQ2V | CARTRIDGE Medium-2 ANALOG VOLTAGE OUTPUT – Schneider Electric

Name: TMCR2AQ2V | CARTRIDGE Medium-2 ANALOG VOLTAGE OUTPUT - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TMCR2AQ2V
Price: 6871.32 INR
Availability: BackOrder

SKU: TMCR2AQ2V

Original price was: ₹19,087.00.Current price is: ₹6,871.32. Excl. GST

Dispatch By : 1 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric TMCR2AQ2V electrical component from the Easy Modicon M200 range delivers dependable performance for industrial, commercial, and infrastructure applications. myelectric.in stocks the TMCR2AQ2V | CARTRIDGE Medium-2 ANALOG VOLTAGE OUTPUT for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TMCR2AQ2V
Category	Electrical Component
Main
Range of product	Easy Modicon M200
Product or component type	Analogue output cartridge
Product compatibility	Easy Modicon M200
Complementary
Analogue output number	2
Analogue output type	Voltage: 0…10 V
Analogue output resolution	12 bits
LSB value	2.44 mV 0…10 V voltage
load type	Resistive
Load impedance ohmic	>= 2 kOhm
Conversion time	20 ms
Stabilisation time	40 ms
Absolute accuracy error	+/- 1 % of full scale +/- 0.3 % of full scale at 25 °C
Temperature drift	+/- 0.02 %FS/°C
Repeat accuracy	+/- 0.4 %FS
Non-linearity	+/- 0.01 %FS
Cross talk	<= 1 LSB
Type of cable	Twisted shielded pairs cable
Electrical connection	3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs
Maximum cable distance between devices	Twisted shielded pairs cable: <30 m for output
Insulation	Non-insulated between analogue output and internal logic
Height	41 mm
Depth	15 mm
Width	35 mm
Product weight	0.012 kg
Environment
Immunity to microbreaks	10 ms
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.6 cm
Package 1 Width	7.0 cm
Package 1 Length	3.5 cm
Package 1 Weight	20.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	75
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	3.07 kg
Unit Type of Package 3	P06
Number of Units in Package 3	1200
Package 3 Height	75 cm
Package 3 Width	60 cm
Package 3 Length	80 cm
Package 3 Weight	106 kg
Contractual warranty
Warranty (in months)	18
