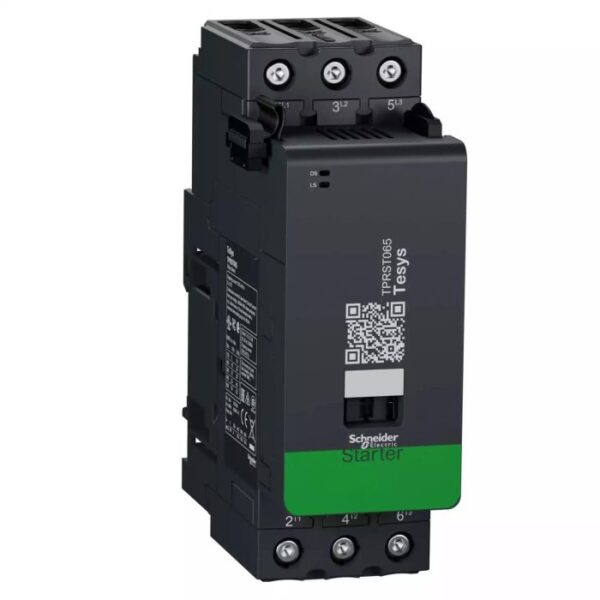

TPRST065 | TeSys island Starter 65 A / 30 kW – Schneider Electric

Name: TPRST065 | TeSys island Starter 65 A / 30 kW - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TPRST065
Price: 27241.20 INR
Availability: BackOrder

SKU: TPRST065

Original price was: ₹48,645.00.Current price is: ₹27,241.20. Excl. GST

Dispatch By : 3 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-44%

TPRBCEIP | TeSys island Bus Coupler Ethernet Switch – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TPRBCEIP

-14%

LAD9R3 | LC1D40A-D65A REVERSOR KIT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD9R3

-55%

LAD4CM | Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LAD4CM

Sourced through authorised channels, the Schneider Electric TPRST065 electrical component from the TeSys range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 65 A, <= 690 V AC 47...63 Hz, 3P (3 NO). myelectric.in stocks the TPRST065 | TeSys island Starter 65 A / 30 kW for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TPRST065
Category	Electrical Component
Main
Range	TeSys
Product name	TeSys island
Device short name	TPRST
Product or component type	Motor starter
Motor starter type	Direct on line
Device presentation	Direct starter connected to an automation controller through a bus coupler Operational only when connected to a bus coupler
Function available	Upstream voltage presence detection Electrical line and load protection Power and energy monitoring when connected with TPRVM voltage module
Product compatibility	TPRBC bus coupler TPRVM voltage interface module
Poles description	3P (3 NO)
Utilisation category	AC-1 AC-2 AC-3 AC-4 AC-3e
Motor power kW	18.5 kW at 230 V 50 Hz (AC-3) 30 kW at 380…415 V 50 Hz (AC-3) 30 kW at 440 V 50 Hz (AC-3) 37 kW at 500 V 50 Hz (AC-3) 37 kW at 690 V 50 Hz (AC-3)
motor power HP (UL / CSA)	5 hp at 120 V AC 60 Hz for 1 phase motors 10 hp at 240 V AC 60 Hz for 1 phase motors 20 hp at 208 V AC 60 Hz for 3 phases motors 20 hp at 240 V AC 60 Hz for 3 phases motors 40 hp at 480 V AC 60 Hz for 3 phases motors 50 hp at 600 V AC 60 Hz for 3 phases motors
[Ue] rated operational voltage	<= 690 V AC 47…63 Hz
[Ie] rated operational current	65 A (at <50 °C) at <= 440 V AC-3 80 A (at <50 °C) at <= 440 V AC-1
[Ith] conventional free air thermal current	80 A (at 50 °C)
[Ui] rated insulation voltage	690 V conforming to IEC 60947-4-1 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Overvoltage category	III
Thermal protection adjustment range	3.35…65 A
Thermal overload class	Class 5…30
Reset	Remotely or automatically
Irms rated making capacity	1000 A at 440 V conforming to IEC 60947
Rated breaking capacity	1000 A at 440 V conforming to IEC 60947
[Icw] rated short-time withstand current	900 A 40 °C – 1 s 520 A 40 °C – 10 s 260 A 40 °C – 1 min 110 A 40 °C – 10 min
Average impedance	1.5 mOhm – Ith 80 A 50 Hz
Power dissipation per pole	6.3 W AC-3 – Ith 65 A 9.6 W AC-1 – Ith 80 A
[Uc] control circuit voltage	24 V DC supplied by the bus coupler
Current consumption	80 mA contactor sealed 500 mA contactor closing
Power dissipation in W	20.8 W at Ie AC-3
Complementary
Mechanical durability	6 Mcycles
Electrical durability	1.4 Mcycles 65 A AC-3 at Ue 440 V 0.5 Mcycles 80 A AC-1 at Ue 440 V
Maximum operating rate	3600 cyc/mn AC-3
Operating time	< 80 ms closing < 80 ms opening
Safety performance level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Protection type	Thermal overload protection Motor overheat Overcurrent Undercurrent Jam Long start Stall Rapid cycle lockout Phase sequence Rapid restart lockout Phase reversal Phase loss Phase unbalance Ground current
Monitoring type	Time device ON Time device switch ON Number of faults Number of switching cycles Number of device power cycles Average current Iavg Average voltage Vavg Max current Imax Max voltage Vmax Active and reactive power with voltage module Active and reactive energy with voltage module True power factor with voltage module
Local signalling	1 LED (green/red) for DS (device status) 1 LED (green/red) for LS (load status)
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Product certifications	CSA UL EAC CCC
Mounting mode	Horizontal and vertical (35 mm symmetrical DIN rail)
Connections – terminals	EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16…AWG 2) rigid EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16…AWG 4) rigid EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16…AWG 2) flexible without cable end EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16…AWG 4) flexible without cable end EverLink BTR screw connectors 1 cable(s) 1…35 mm² (AWG 16…AWG 2) flexible with cable end EverLink BTR screw connectors 2 cable(s) 1…25 mm² (AWG 16…AWG 4) flexible with cable end
Tightening torque	5 N.m – cable 1…25 mm² hexagonal 4 mm 8 N.m – cable 25…35 mm² hexagonal 4 mm
Width	55 mm
Height	167 mm
Depth	125 mm
Product weight	1.248 kg
Environment
Ambient air temperature for storage	-25…70 °C
Ambient air temperature for operation	-10…50 °C without derating 50…60 °C with current derating
Relative humidity	5…95 %
Operating altitude	0…2000 m without derating
IP degree of protection	IP20
Pollution degree	2
Protective treatment	TC
Fire resistance	960 °C conforming to UL 94 850 °C conforming to IEC 60695-2-1 650 °C conforming to IEC 60695-2-12
Shock resistance	15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance	1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	15.000 cm
Package 1 Length	19.500 cm
Package 1 Weight	1.354 kg
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	11.311 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

65 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LAD9R3LAD9SD3SLAD4CMTPRBCEIPTPRBCPFBTPRBCPFN

❓ Frequently Asked Questions

Q: What is the significance of the 65 A rating on the TPRST065?

A: The 65 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
