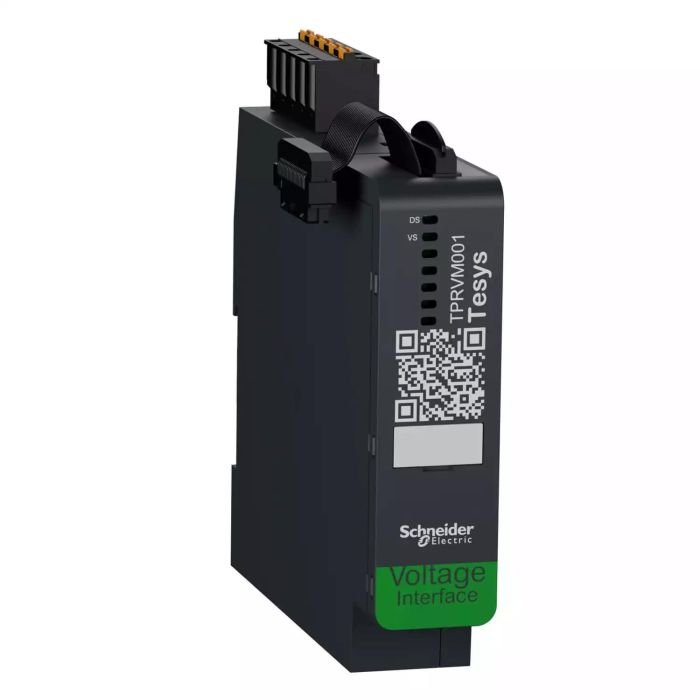

TPRVM001 | TeSys island Voltage Interface – Schneider Electric

Name: TPRVM001 | TeSys island Voltage Interface - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: TPRVM001
Price: 16220.40 INR
Availability: BackOrder

SKU: TPRVM001

Original price was: ₹28,965.00.Current price is: ₹16,220.40. Excl. GST

Dispatch By : 2 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-44%

TPRBCEIP | TeSys island Bus Coupler Ethernet Switch – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: TPRBCEIP

Looking for the TPRVM001 | TeSys island Voltage Interface? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 690 V AC 47…63 Hz, IP20. Order part number TPRVM001 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	TPRVM001
Category	Electrical Component
Main
Range	TeSys
Product name	TeSys island
Device short name	TPRVM
Product or component type	Voltage interface module
Device presentation	Monitoring of the mains voltage powering the island Reporting of the voltage to the bus coupler to enable power & energy monitoring
Function of module	Monitoring of voltages in single phase systems L-N or L-L Monitoring of voltages in 3-phase systems without neutral N connection Calculation of RMS phase voltages, voltage phase sequence, fundamental frequency Identification of dip and swell events level and duration
Product compatibility	TPRBC bus coupler
[Ue] rated operational voltage	690 V AC 47…63 Hz
[Ui] rated insulation voltage	690 V conforming to IEC 61010-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 61010-1
Overvoltage category	III
Monitoring type	Phase voltage 100…690 V Phase frequency 47…63 Hz Phase sequence
Measurement accuracy	Voltage: +/- 5 %, Frequency: +/- 1 Hz,
Local signalling	1 LED (green/red) for DS (device status) 1 LED (green/red) for VS (voltage status)
Complementary
[Us] rated supply voltage	24 V DC supplied by the bus coupler
Current consumption	2 mA
Power dissipation in W	0.5 W maximum
Standards	IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201
Product certifications	CSA UL EAC (pending)
Mounting mode	Horizontal and vertical (35 mm symmetrical rail)
Connections – terminals	Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (AWG 24…AWG 14) rigid Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (AWG 24…AWG 14) flexible without cable end Measuring input: removable spring terminal block 3 cable(s) 0.25…2.5 mm² (AWG 22…AWG 14) flexible with cable end
Width	25 mm
Height	118 mm
Depth	114 mm
Product weight	0.159 kg
Environment
Ambient air temperature for storage	-25…70 °C
Ambient air temperature for operation	-10…60 °C
Relative humidity	5…95 %
Operating altitude	0…2000 m without derating
IP degree of protection	IP20
Pollution degree	2
Protective treatment	TC
Fire resistance	960 °C conforming to UL 94
Shock resistance	15 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance	1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 Line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4 Line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.500 cm
Package 1 Width	13.500 cm
Package 1 Length	15.500 cm
Package 1 Weight	235.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	16
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.295 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
