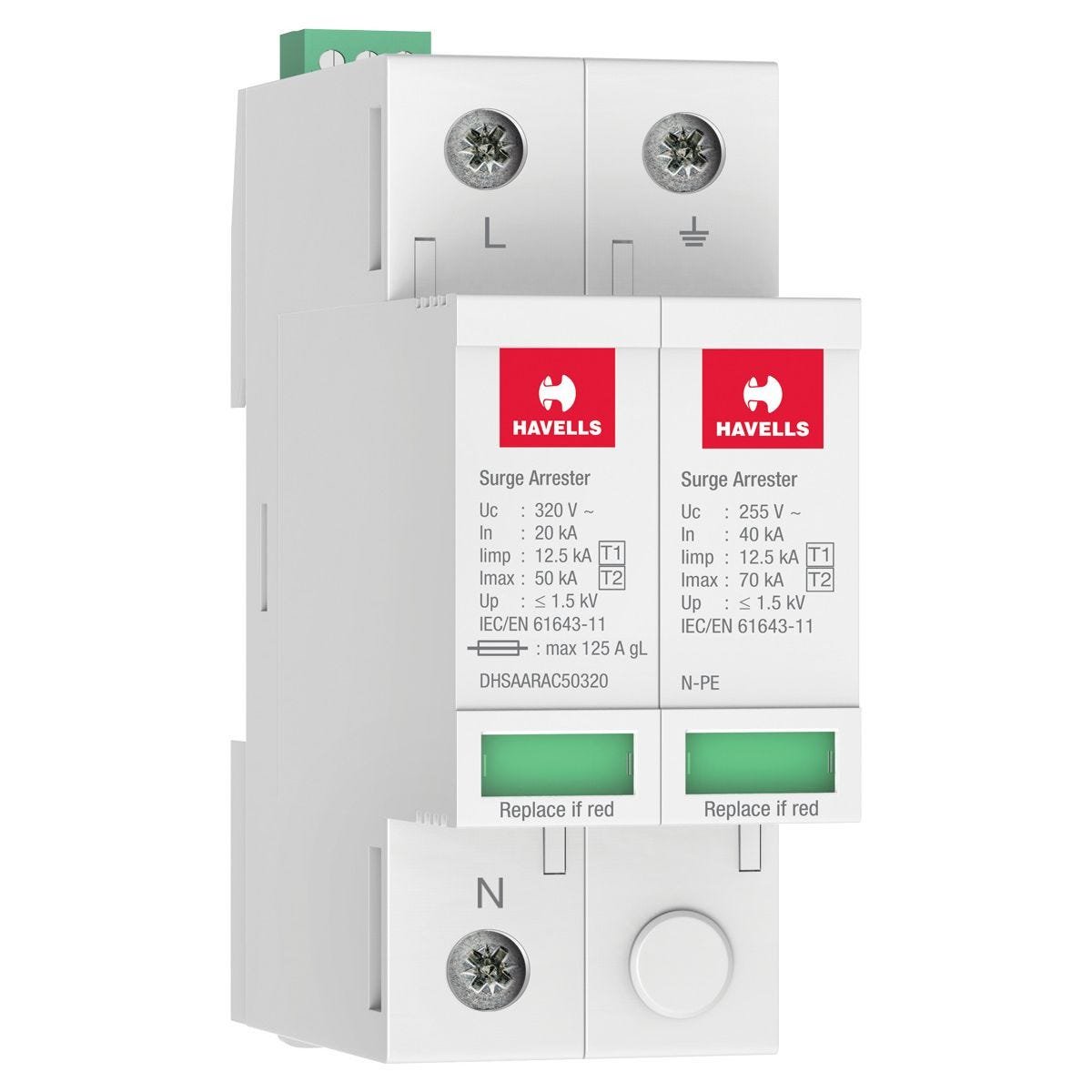

Havells 1+2 AC Surge Protection Device (SP+N) – DHSAARAC50320

Key Features:

• Type: 1+2 AC Surge Protection Device (SPD)
• Model: DHSAARAC50320
• Brand: Havells
• Protection Modes: L-N, L-PE, N-PE
• Maximum Discharge Current (Imax): 20kA
• Nominal Discharge Current (In): 10kA
• Voltage Protection Level (Up): ≤1.5kV
• Response Time: ≤25ns
• Operating Voltage: 230V AC
• Frequency: 50Hz
• Termination: Screw Type
• Housing Material: Flame Retardant PC
• Mounting: DIN Rail Mountable
• Indicator: Visual Fault Indication
• Standards: IEC 61643-11, IS/IEC 62305

Product Description:

The Havells 1+2 AC Surge Protection Device (SPD) – Model DHSAARAC50320 offers robust protection against voltage surges caused by lightning strikes, power fluctuations, and electrical transients. Designed for residential and commercial applications, this SPD ensures the safety of your electrical appliances and systems by diverting excess voltage to the ground.

Applications:

• Home electrical panels
• Commercial buildings
• Industrial setups
• HVAC systems
• Telecommunication equipment

Why Choose Havells SPD?

• High surge current handling capacity (20kA)
• Fast response time for maximum protection
• Durable and flame-retardant housing
• Easy DIN rail installation
• Trusted brand with reliable performance

Technical Specifications:

Installation & Safety:

For optimal performance, install the Havells SPD at the main distribution board (MDB) or sub-distribution board (SDB). Ensure proper earthing and consult a certified electrician for installation. Regular inspection is recommended to maintain protection efficiency.

Warranty & Support:

Havells provides a standard warranty on this surge protection device. For any technical assistance or warranty claims, contact Havells customer support or visit myelectric.in.
