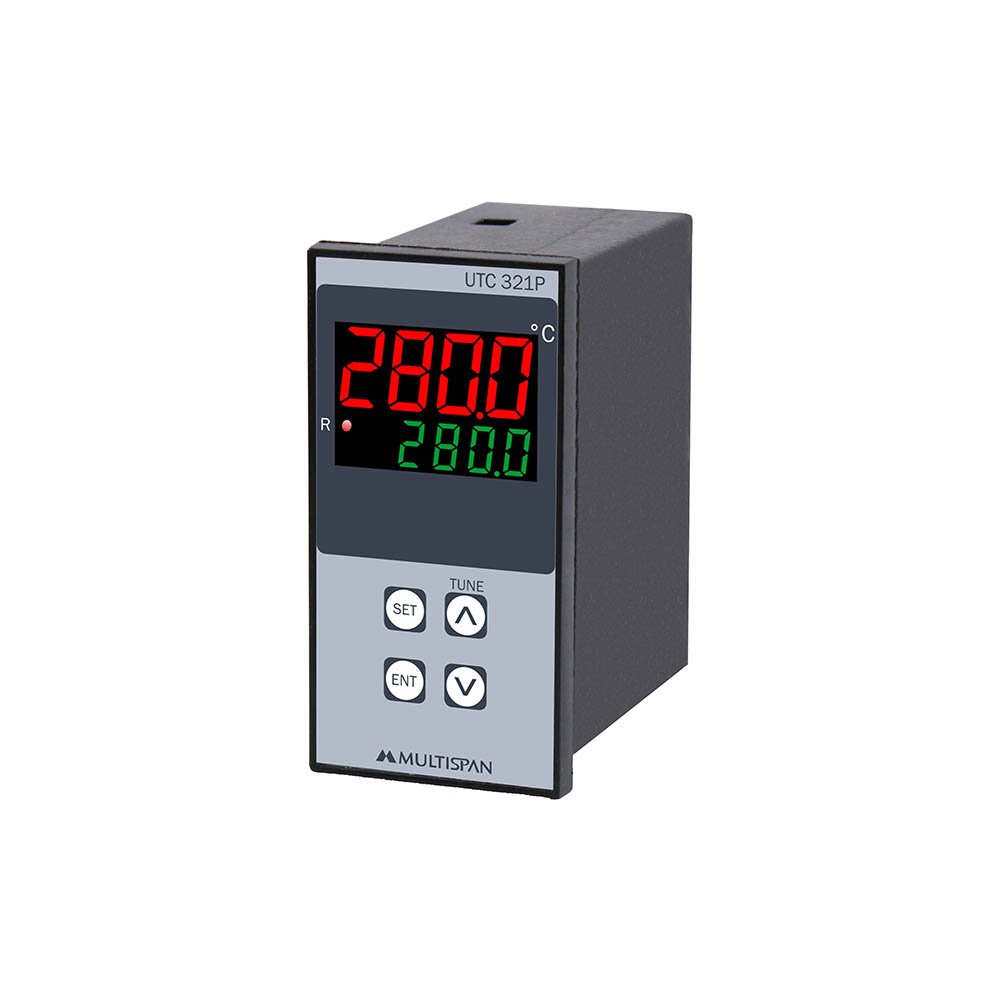

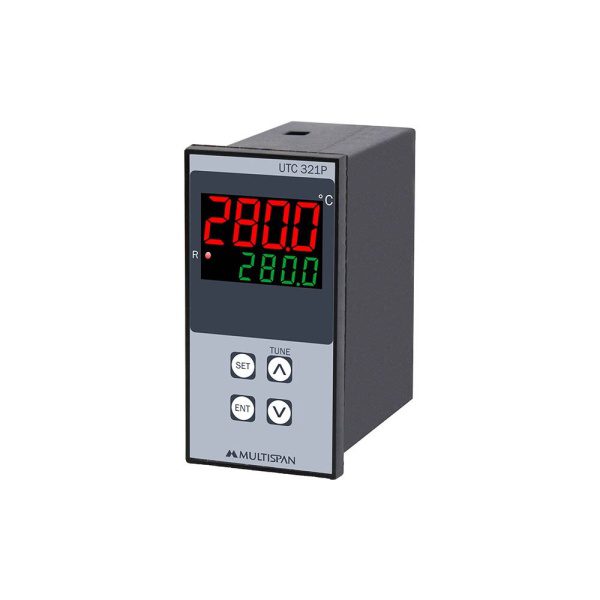

UTC-321P DOUBLE DISPLAY UNIVERSAL INPUT PID CONTROLLER SINGLE RELAY 96 X 48X 85 MULTISPAN
Input : J/K/Pt-100(Configurable), Output : 1 relay||SSR,
Control action : PID/On-off (Configurable) Supply : 100-270V AC
Original price was: ₹2,635.00.₹1,844.50Current price is: ₹1,844.50. Excl. GST
Payment Methods:
html
UTC-321P Double Display Universal Input PID Controller – Single Relay (96 x 48 x 85 mm) – Multispan
Product Description
The UTC-321P Double Display Universal Input PID Controller by Multispan is a high-precision temperature and process control device designed for industrial applications. This compact (96 x 48 x 85 mm) controller features dual displays for simultaneous monitoring of process values and setpoints.
Key Features:
- Universal Input: Compatible with thermocouples (J, K, T, E, R, S, B, N), RTDs (PT100, Cu50), and standard voltage/current signals (0-5V, 1-5V, 0-10V, 0-20mA, 4-20mA)
- Advanced PID Control: Precise proportional-integral-derivative algorithm for optimal process control
- Dual LED Displays: Large 0.56″ red LED for process value and 0.36″ green LED for setpoint
- Single Relay Output: SPDT relay contact (5A/250V AC or 5A/30V DC)
- Compact DIN Size: 96 x 48 mm panel cutout for easy installation
- Multiple Control Modes: PID, ON/OFF, manual control, and auto-tuning
- Alarm Function: Configurable high/low limit alarms
- Communication Options: Optional RS485 Modbus RTU communication (model dependent)
- Robust Construction: Durable design suitable for industrial environments
Applications:
- Industrial temperature control systems
- Plastic processing machinery
- Packaging equipment
- Food processing units
- HVAC systems
- Laboratory equipment
- Process heating applications
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | UTC-321P |
| Brand | Multispan |
| Display | Dual LED (0.56″ PV, 0.36″ SV) |
| Input Types | Thermocouples, RTD, Voltage, Current |
| Output | Single Relay (SPDT 5A/250V AC) |
| Control Accuracy | ±0.3% FS ±1 digit |
| Power Supply | 85-264V AC, 50/60Hz or 24V DC |
| Dimensions | 96 x 48 x 85 mm (DIN size) |
| Mounting | Panel mount |
| Certifications | CE compliant |
Package Includes:
- 1 x UTC-321P PID Controller
- 1 x User Manual
- Mounting hardware (if applicable)
Buy the Multispan UTC-321P PID Controller from MyElectric.in – your trusted source for industrial automation products. This versatile controller offers precise temperature regulation for various industrial processes with reliable performance and easy operation.
Note: Product specifications may change without prior notice. Please verify technical requirements before purchase.
