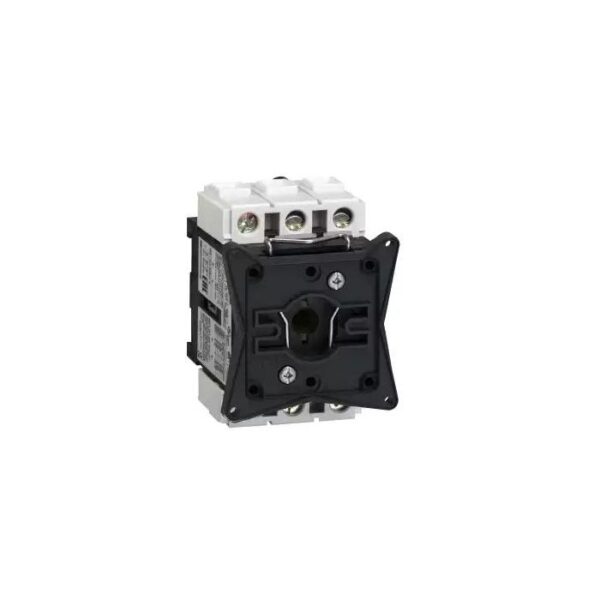

V02 | BODY 3P DISCON SWITCH 12A – Schneider Electric

Name: V02 | BODY 3P DISCON SWITCH 12A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: V02
Price: 1593.20 INR
Availability: BackOrder

SKU: V02

Original price was: ₹2,845.00.Current price is: ₹1,593.20. Excl. GST

Dispatch By : 3 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

VZ0 TeSys VARIO additional pole 25 A for V0 Schneider Electric odapg114006 se 1500x1500

-38%

VZ02 | TeSys VARIO – additional pole – 12 A – for V02 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ02

-43%

VZ11 | TeSys VARIO – additional neutral block – 40 A – for V02…V2 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ11

-45%

VZ14 | PE TERMINAL 40A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ14

VZ18 TeSys VARIO shaft extension for V3 V4 V5 V6 Schneider Electric odavz31 1500x1500

-43%

VZ17 | TeSys VARIO – shaft extension – for V02…V2 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ17

-44%

VZ30 | SHAFT EXTENSION PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ30

-45%

KZ32 | DOOR INTERLOCK PIECE – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: KZ32

-45%

VZ8 | 3 POLE INPUT TERMI- COVER – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ8

-38%

VZ7 | TeSys VARIO – auxiliary contact block – 1 NC early-break+1 NO late-make – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ7

-38%

VZ20 | TeSys VARIO – auxiliary contact block – 1 NO + 1 NO – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ20

Sourced through authorised channels, the Schneider Electric V02 switch from the TeSys range delivers dependable performance for everyday wiring and control. Key ratings include 8.1 A AC-23 Ue: 400 V, 690 V AC 50/60 Hz, 3P. myelectric.in stocks the V02 | BODY 3P DISCON SWITCH 12A for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	V02
Category	Switch
Main
Range	TeSys
Product Name	TeSys VARIO
Device Short Name	V
Product Type	Switch body
Complementary
Mounting Support	Plate Symmetrical rail
Performance Level	High performance
Number of Poles	3P
Contact Type and Composition	3 NO
Network type	AC DC
Network frequency	50/60 Hz
[Ue] IEC Rated Operational Voltage	690 V AC 50/60 Hz
IEC Rated Operational Power in W	3 kW at 400…415 V (AC-3) 4 kW at 500 V (AC-3) 1.5 kW at 230…240 V (AC-3) 5.5 kW at 500 V (AC-23A) 5.5 kW at 690 V (AC-3) 7.5 kW at 690 V (AC-23A) 3 kW at 230…240 V (AC-23A) 4 kW at 400…415 V (AC-23A)
[Ie] Rated Operational Current	8.1 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current	12 A
[Ithe] Conventional Enclosed Thermal Current	10 A
Making capacity ( I Rms)	120 A at 400 V AC-21A 120 A at 400 V AC-22A 120 A at 400 V AC-23A
Breaking Capacity	120 A at 400 V (AC-21A) 120 A at 400 V (AC-22A) 120 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current	10 kA at 400 V – associated fuse 12 A aM 10 kA at 400 V – associated fuse 12 A gG
[Icm] Rated Short Circuit Making Capacity	1 kA at 400 V at Ipeak
Intermittent duty class	30
Suitability for isolation	Yes
[Uimp] rated impulse withstand voltage	8 kV
[Icw] rated short-time withstand Rms current	300 A at 400 V duration: 1 s
Mechanical Durability	100000 cycles
Electrical Durability	100000 cycles AC-21 30000 cycles DC-1 30000 cycles DC-2 30000 cycles DC-3 30000 cycles DC-4 30000 cycles DC-5
IEC Terminal Connection	Power circuit: screw clamp terminals10 mm² – solid Power circuit: screw clamp terminals6 mm² – flexible – with cable end
Tightening Torque	Power circuit: 2.1 N.m – on screw clamp terminals
Height	74 mm
Width	55 mm
Depth	60 mm
Product Weight	0.2 kg
Environment
Standards	IEC 60947-3
Product Certifications	UL CSA GL UKCA CCC
Degree of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Mechanical Robustness	Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation	-20…50 °C
Fire Resistance	960 °C conforming to IEC 60695-2-1
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	8.400 cm
Package 1 Length	7.800 cm
Package 1 Weight	175.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	24
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.682 kg
Unit Type of Package 3	P06
Number of Units in Package 3	192
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	47.036 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

12 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

VZ8KZ32KZ83KZ66VZ11VZ7VZ14VZ20VZ02VCFXGE1VCFXGE4VBFXGE4VZ17VZ30

❓ Frequently Asked Questions

Q: What is the significance of the 12 A rating on the V02?

A: The 12 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
