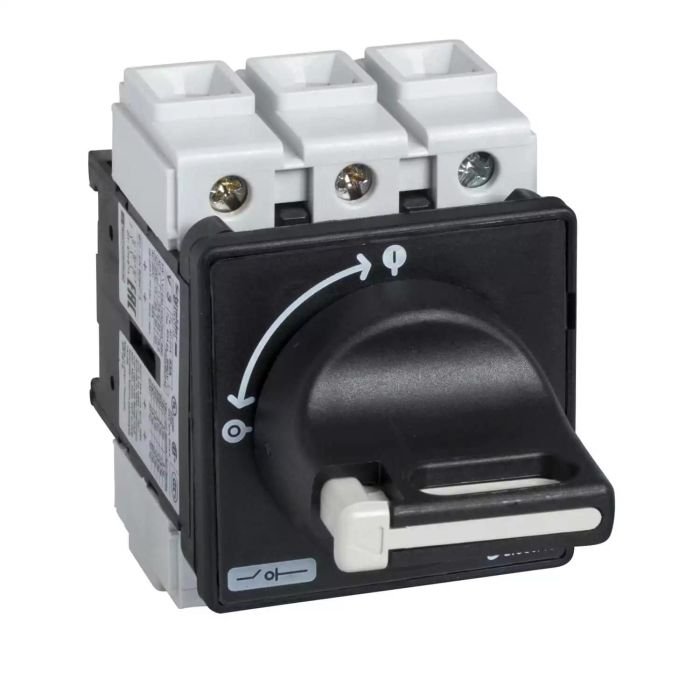

VBF1 | MAIN SWITCH DISCON.32A – Schneider Electric

Name: VBF1 | MAIN SWITCH DISCON.32A - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: VBF1
Price: 11088.00 INR
Availability: BackOrder

SKU: VBF1

Original price was: ₹19,800.00.Current price is: ₹11,088.00. Excl. GST

Dispatch By : 3 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-38%

VZ20 | TeSys VARIO – auxiliary contact block – 1 NO + 1 NO – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ20

-43%

VZ11 | TeSys VARIO – additional neutral block – 40 A – for V02…V2 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ11

-45%

VZ14 | PE TERMINAL 40A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ14

-38%

VZ7 | TeSys VARIO – auxiliary contact block – 1 NC early-break+1 NO late-make – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ7

VZ0 TeSys VARIO additional pole 25 A for V0 Schneider Electric odapg114006 se 1500x1500

-38%

VZ1 | TeSys VARIO – additional pole – 32 A – for V1 – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ1

Looking for the VBF1 | MAIN SWITCH DISCON.32A? This genuine Schneider Electric switch from the TeSys range is built for everyday wiring and control, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 21.8 A AC-23 Ue: 400 V, 690 V AC 50/60 Hz, 3P. Order part number VBF1 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	VBF1
Category	Switch
Main
Range	TeSys
Product Name	TeSys VARIO
Device Short Name	VBF
Device Application	Preventive maintenance
Product Type	Switch disconnector
Complementary
Device Composition	Handle Switch
Mounting Support	Handle: door Switch: door
Mounting Method	By 4 screws for handle
Performance Level	High performance
Number of Poles	3P
Contact Type and Composition	3 NO
[Ue] IEC Rated Operational Voltage	690 V AC 50/60 Hz
IEC Rated Operational Power in W	11 kW at 500 V (AC-23A) 15 kW at 690 V (AC-23A) 7.5 kW at 500 V (AC-3) 7.5 kW at 690 V (AC-3) 1.5 kW at 230…240 V (AC-3) 5.5 kW at 230…240 V (AC-23A) 11 kW at 400…415 V (AC-23A) 7.5 kW at 400…415 V (AC-3)
[Ie] Rated Operational Current	21.8 A AC-23 Ue: 400 V
[Ith] Conventional Free Air Thermal Current	32 A
[Ithe] Conventional Enclosed Thermal Current	25 A
Making Capacity ( I Rms)	320 A at 400 V AC-21A 320 A at 400 V AC-22A 320 A at 400 V AC-23A
Breaking Capacity	250 A at 400 V (AC-21A) 250 A at 400 V (AC-22A) 250 A at 400 V (AC-23A)
Rated Conditional Short Circuit Current	10 kA at 400 V – associated fuse 35 A aM 10 kA at 400 V – associated fuse 35 A gG
[Icm] Rated Short Circuit Making Capacity	1 kA at 400 V at Ipeak
[Icw] Rated Short Time Withstand Current	384 A at 400 V duration: 1 s
[Uimp] Rated Impulse Withstand Voltage	8 kV
Suitability for Isolation	Yes
Network Type	AC DC
Intermittent Duty Class	30
Control Type	Rotary handle
Rotary Handle Mounting Style	Direct
Handle Color	Black
Handle Front Plate Color	Black
Rotary Handle Padlocking	1 to 3 padlocks 4…8 mm
Marking	0 – 1
Mechanical Durability	100000 cycles
Electrical Durability	100000 cycles AC-21 30000 cycles DC-1…5
IEC Terminal Connection	Power circuit: screw clamp terminals10 mm² – solid Power circuit: screw clamp terminals6 mm² – flexible – with cable end
Tightening Torque	Power circuit: 2.1 N.m – on screw clamp terminals
Base Dimension	60 x 60 mm
Height	74 mm
Width	60 mm
Product Weight	0.25 kg
Environment
Standards	IEC 60947-3
Product Certifications	CSA CCC UL GL UKCA
Degree of Protection	IP20 conforming to IEC 60529 IP65
Protective Treatment	TC
Mechanical Robustness	Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient Air Temperature for Operation	-20…50 °C
Fire Resistance	960 °C conforming to IEC 60695-2-1
Compatibility Code	Main switch disconnector
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	8.5 cm
Package 1 Length	12.0 cm
Package 1 Weight	219.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	24
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	5.745 kg
Contractual warranty
Warranty (in months)	18
