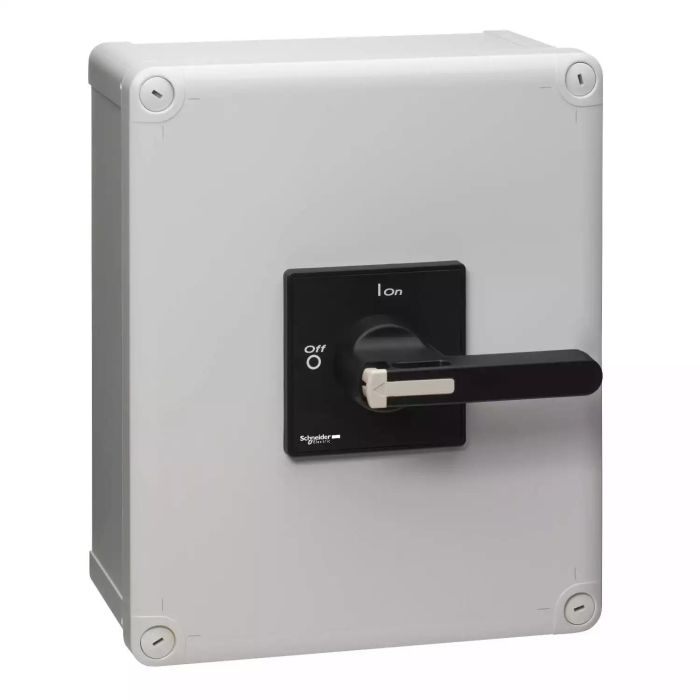

VBF5GEN | ENCLOSED DISCONNECT SWITCH VARIO VBF 3P – Schneider Electric

Name: VBF5GEN | ENCLOSED DISCONNECT SWITCH VARIO VBF 3P - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: VBF5GEN
Price: 50584.84 INR
Availability: BackOrder

SKU: VBF5GEN

Original price was: ₹94,995.00.Current price is: ₹50,584.84. Excl. GST

Dispatch By : 3 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-44%

VZ16 | PE TERMINAL 175A – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: VZ16

-38%

VZ20 | TeSys VARIO – auxiliary contact block – 1 NO + 1 NO – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ20

-38%

VZ7 | TeSys VARIO – auxiliary contact block – 1 NC early-break+1 NO late-make – Schneider Electric

Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: VZ7

Sourced through authorised channels, the Schneider Electric VBF5GEN switch from the TeSys range delivers dependable performance for everyday wiring and control. Key ratings include 68.5 A, 690 V AC, 3P. myelectric.in stocks the VBF5GEN | ENCLOSED DISCONNECT SWITCH VARIO VBF 3P for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	VBF5GEN
Category	Switch
Main
Range	TeSys
Product name	TeSys VARIO
Device short name	VBF
Device application	Preventive maintenance
Product or component type	Enclosed switch-disconnector
Performance level	High performance
Poles description	3P
Control type	Rotary handle
Type of operator	Long handle
Handle colour	Black
Handle front plate colour	Black
Rotary handle padlocking	1 to 3 padlocks 4…8 mm
Complementary
Marking	0 – 1
[Ue] rated operational voltage	690 V AC
[Uimp] rated impulse withstand voltage	8 kV
[Ithe] conventional enclosed thermal current	100 A
[Ie] rated operational current	68.5 A (AC-23A) at 400 V
Rated operational power in W	37 kW at 400 V (AC-23) 30 kW at 400 V (AC-3)
Intermittent duty class	30
Making capacity ( I rms)	1250 A at 400 V AC-21A 1250 A at 400 V AC-22A 1250 A at 400 V AC-23A
[Icm] rated short-circuit making capacity	2.8 kA at 400 V at Ipeak
[Icw] rated short-time withstand Rms current	1500 A at 400 V duration: 1 s
Rated conditional short-circuit current	10 kA at 400 V – associated fuse 125 A aM 10 kA at 400 V – associated fuse 125 A gG
Breaking capacity	1000 A at 400 V (AC-21A) 1000 A at 400 V (AC-22A) 1000 A at 400 V (AC-23A)
Mechanical durability	30000 cycles
Electrical durability	30000 cycles AC-21 30000 cycles DC-1…5
Environmental characteristic	Standard environment
Suitability for isolation	Yes
Connections – terminals	Screw clamp terminals70 mm² – flexible – with cable end Screw clamp terminals95 mm² – solid
Tightening torque	22.6 N.m – on screw clamp terminals
Fire resistance	960 °C conforming to IEC 60595-2-1
handle front plate dimension	90 x 90 mm
Height	280 mm
Width	220 mm
Depth	191 mm
Product weight	2.19 kg
Environment
Standards	IEC 60947-4-1 IEC 60204
Protective treatment	TC
IP degree of protection	IP65 conforming to IEC 60529
Mechanical robustness	Vibrations 10…150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27
Ambient air temperature for operation	-20…50 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	20.500 cm
Package 1 Width	24.700 cm
Package 1 Length	30.000 cm
Package 1 Weight	2.880 kg
Unit Type of Package 2	S04
Number of Units in Package 2	2
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	6.500 kg
Contractual warranty
Warranty (in months)	18
