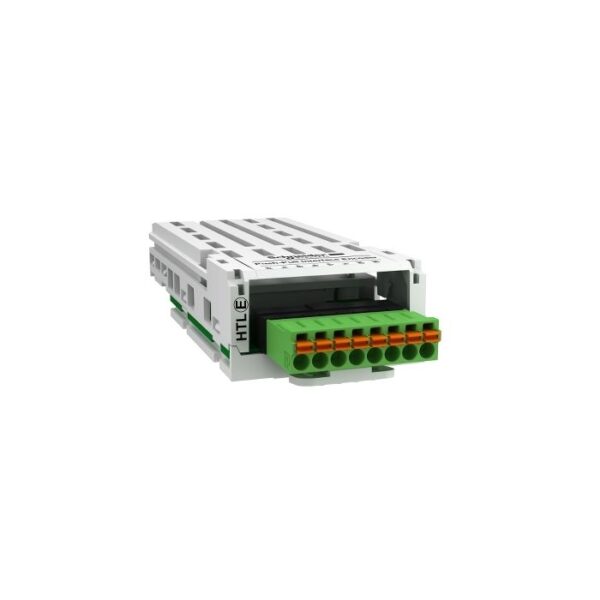

VW3A3424 | INTERFACE ENCODER MODULE PUSH-PULL(HTL) – Schneider Electric

Name: VW3A3424 | INTERFACE ENCODER MODULE PUSH-PULL(HTL) - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: VW3A3424
Price: 7622.88 INR
Availability: BackOrder

SKU: VW3A3424

Original price was: ₹15,881.00.Current price is: ₹7,622.88. Excl. GST

Dispatch By : 2 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-69%

ATV930U22N4 | Atv930 Ip21 2,2Kw 400V/480V Variable Spe – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: ATV930U22N4

The Schneider Electric VW3A3424 is an emergency stop button from the Altivar range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Buy the VW3A3424 | INTERFACE ENCODER MODULE PUSH-PULL(HTL) online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	VW3A3424
Category	Emergency Stop Button
Main
Range of product	Altivar
Product or component type	Encoder interface module
Range compatibility	Altivar Process ATV900 Altivar Process Modular Altivar Machine ATV340
Encoder type	High threshold logic (HTL)
[Us] rated supply voltage	12 V DC 15 V DC 24 V DC
Complementary
Maximum supply current	0.2 A at 12 V DC 0.175 A at 15 V DC 0.1 A at 24 V DC
Protection type	Short-circuit protection Overload protection
Maximum cable distance between devices	500 m
Maximum operating frequency	300 kHz
Input signal	Push-pull differential: A/AB/B Push-pull single ended: AB Push-pull single ended: A Open collector differential: A/AB/B Open collector PNP: AB Open collector NPN: AB Open collector PNP: A Open collector NPN: A
Connector type	1 removable spring connector
Product weight	0.15 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.7 cm
Package 1 Width	12.8 cm
Package 1 Length	19.0 cm
Package 1 Weight	144.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	16
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.052 kg
Contractual warranty
Warranty (in months)	18
