VZ1L007UM50 | MONO INDUCTANCE - Schneider Electric - Image 1

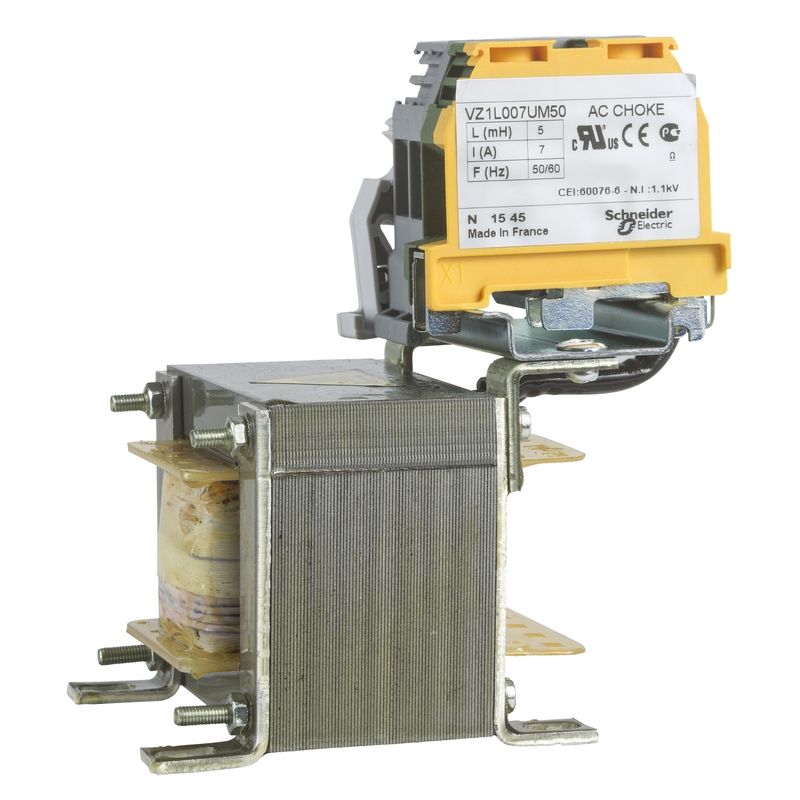

    VZ1L007UM50 | MONO INDUCTANCE – Schneider Electric

    SKU: VZ1L007UM50

    Original price was: ₹42,600.00.Current price is: ₹20,448.00. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    18 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    Range of productAltivar
    Product or component typeLine choke
    Product compatibilityATV312H055M2 – line choke – 1 per drive
    ATV312H075M2 – line choke – 1 per drive
    ATV31C055M2 – line choke – 1 per drive
    ATV31C075M2 – line choke – 1 per drive
    ATV32H055M2 – line choke – 1 per drive
    ATV32H075M2 – line choke – 1 per drive
    LXM05D10F1 – line choke – 1 per drive
    LXM05D10M2 – line choke – 1 per drive
    LXM32.U45M2 – line choke – 1 per drive
    Variable speed drive ATV320 motor: 0.55 kW 200…240 V – single phase – line choke – 1 per drive
    Variable speed drive ATV320 motor: 0.75 kW 200…240 V – single phase – line choke – 1 per drive
    number of phasesSingle phase
    Range compatibilityLexium 32
    Altivar 31C
    Altivar 312
    Altivar 312 Solar
    Altivar Machine ATV320
    Lexium 05
    Altivar 32
    Device applicationReduction of current harmonics
    Value of inductance5 mH
    [In] rated current7 A
    Thermal losses20 W
    Complementary
    power supply frequency50…60 Hz
    Maximum voltage drop at rated load5 %
    Net weight0.88 kg
    Width60 mm
    Height100 mm
    Depth95 mm
    Environment
    StandardsIEC 60076 (with HD398)
    VDE 0160 level 1
    EN 50178
    IP degree of protectionChoke: IP00
    Terminals: IP20
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height18.000 cm
    Package 1 Width15.000 cm
    Package 1 Length13.000 cm
    Package 1 Weight933.000 g
    Unit Type of Package 2P06
    Number of Units in Package 242
    Package 2 Height75.000 cm
    Package 2 Width60.000 cm
    Package 2 Length80.000 cm
    Package 2 Weight51.388 kg
    Contractual warranty
    Warranty (in months)18
