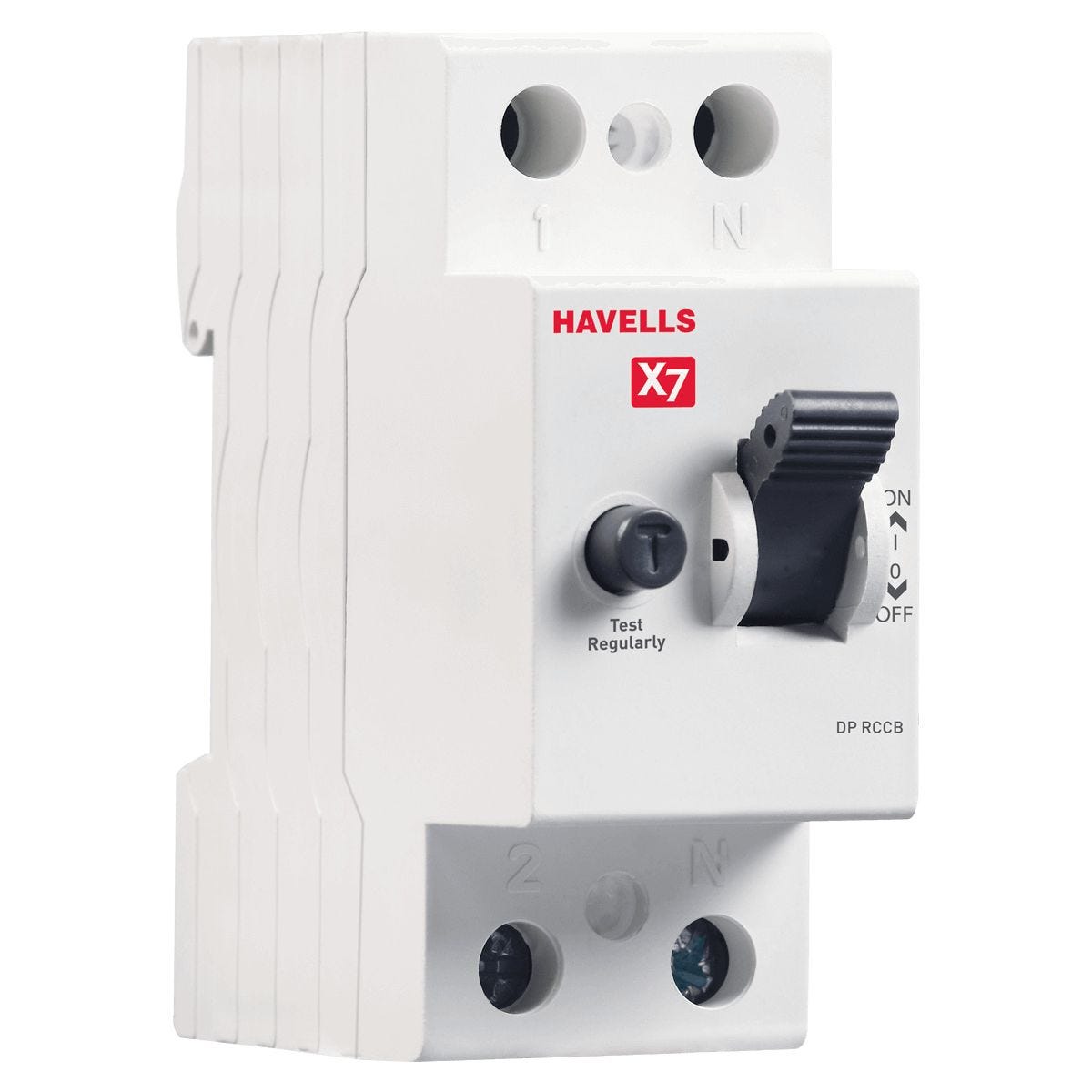

X7 RCCB DP 40 A Havells | DHRYCTDF100040

Name: X7 RCCB DP 40 A Havells | DHRYCTDF100040
Brand: Havells
SKU: DHRYCTDF100040
Availability: OutOfStock

SKU: DHRYCTDF100040

Original price was: ₹ 3,611.00.Current price is: ₹ 2,167.00. Excl. GST

Out of stock

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the X7 RCCB DP 40 A Havells | DHRYCTDF100040? This genuine Leading Brand rccb is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 40 A, 2 Poles. Order part number DHRYCTDF100040 from myelectric.in — a trusted Leading Brand supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Parameter	Value
Brand	Leading Brand
Part Number / SKU	DHRYCTDF100040
Category	RCCB
Current Rating	40 A
Poles	2 Poles
Rated Voltage	230V AC
Rated Frequency	50 Hz
Max Break Time	≤ 300 ms at rated IΔn (per IEC 61008-1)
RCD Type	Type AC (sinusoidal AC sensitive)
Protection Function	Earth leakage only — pair with upstream MCB for overcurrent
Mounting	35mm DIN rail (EN 60715)
Test Facility	Built-in test button (monthly test per IS 12640)
Standard	IEC 61008 / IS 12640-1
Certifications	BIS certified where applicable

⚡ Key Features

40 A rated load current — the RCCB carries this full circuit current continuously while monitoring the live-neutral balance for any earth leakage.
2 Poles — for single-phase circuits; both live and neutral pass through the sensing core.
Earth-leakage protection only — no overload or short-circuit protection; install in series with an appropriately rated MCB for full circuit protection.
Mandatory test button — simulate a leakage fault to verify the trip mechanism without live fault conditions; test monthly per IS 12640 recommendation.
Type AC — designed for purely sinusoidal AC residual currents on standard residential and commercial circuits.
Manufactured to IEC 61008 / IS 12640-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Leading Brand product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 40 A rating on the DHRYCTDF100040?

A: The 40 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many downstream circuits can be protected under the DHRYCTDF100040 without nuisance tripping?

A: Downstream MCBs or RCBOs can be connected below the DHRYCTDF100040, but the total standing leakage current of all connected circuits must not exceed 30–50% of the RCCB’s rated sensitivity — typically 9–15mA for a 30mA device. Each appliance with a filter (computers, VFDs, LED drivers) contributes 0.5–3mA of standing leakage, so limit the count of such loads per RCCB to prevent cumulative leakage causing nuisance tripping.

Q: Will the DHRYCTDF100040 trip on earth faults from variable frequency drives (VFDs)?

A: VFDs, LED drivers, and switched-mode power supplies generate high-frequency leakage currents that can cause nuisance tripping in standard Type AC RCCBs. If your installation includes VFDs, use a Type A (for pulsating DC components) or Type F/B RCCB. The DHRYCTDF100040 specification (AC or A type) determines suitability — check the product marking.

Q: What is the difference between an RCCB and a standard MCB — and why use the DHRYCTDF100040?

A: A standard MCB protects against overload and short-circuit only. An RCCB adds earth leakage (residual current) detection — it trips on faults as low as 30mA to ground, protecting against electric shock and fire from insulation faults, which a standard MCB cannot detect. Choose the DHRYCTDF100040 when the application specifically requires rccb characteristics.
