XALK178 | CONTROL STATION EMERGENCY STOP FUNCTION - Schneider Electric - Image 1
Click to enlarge

    XALK178 | CONTROL STATION EMERGENCY STOP FUNCTION – Schneider Electric

    SKU: XALK178

    Original price was: ₹4,734.00.Current price is: ₹2,982.42. Excl. GST

    Dispatch By : 3 Weeks

    Dispatch By : 3 Weeks

    20 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    ZBZ1605 | MUSHROOM PROTECTION GUARD – Schneider Electric

    Schneider Electric
    ₹3,373.00 Excl. GST
    Add to basket
    SKU: ZBZ1605

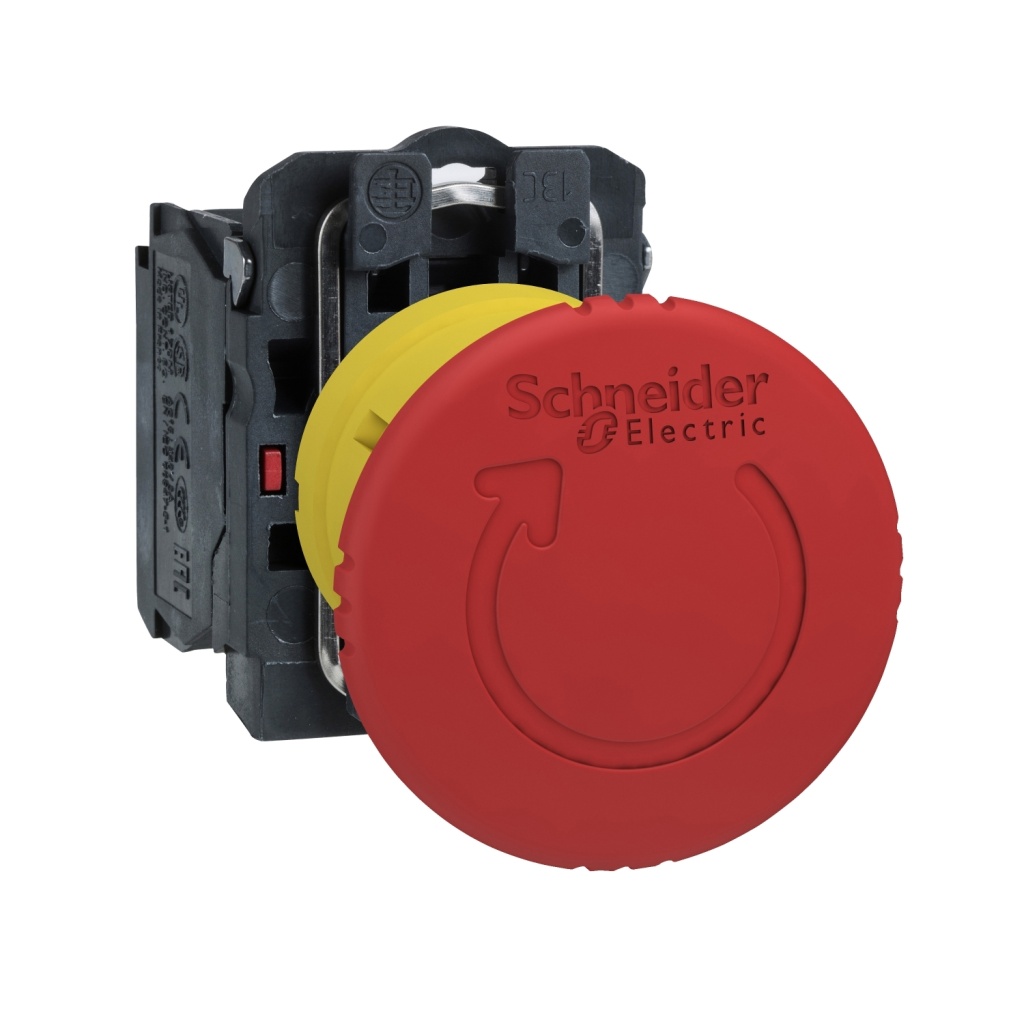

    XB5AS8445N Emergency stop push button, Harmony XB5N XB7N, plastic, red, 40mm, turn to release, trigger latching, 1 NO 1NC Sch
    -37%

    XB5AS8442 | red Ø40 Emergency stop, switching off pushbutton Ø22 latching turn release 1NC – Schneider Electric

    Schneider Electric
    Original price was: ₹4,507.00.Current price is: ₹2,839.41. Excl. GST
    Add to basket
    SKU: XB5AS8442
    -37%

    ZBY9W2B330 | Ill ring plast red LED mark stop UK 24V – Schneider Electric

    Schneider Electric
    Original price was: ₹2,397.00.Current price is: ₹1,510.11. Excl. GST
    Add to basket
    SKU: ZBY9W2B330

      Looking for the XALK178 | CONTROL STATION EMERGENCY STOP FUNCTION? This genuine Schneider Electric emergency stop button from the Harmony XALK range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, IP66. Order part number XALK178 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKUXALK178
      CategoryEmergency Stop Button
      Main
      Range of productHarmony XALK
      Product or component typeComplete control station
      Device short nameXALK
      Product destinationFor XB5 Ø 22 mm control and signalling units
      Control station applicationEmergency switching off function
      Emergency stop function
      Colour of base of enclosureLight grey (RAL 7035)
      Colour of coverYellow (RAL 1021)
      MaterialPolycarbonate
      Operator profile1 mushroom head push-button
      Operators descriptionRed unmarked 1 NC
      ResetTurn to release
      Control station composition1 mushroom head Ø 40 mm push-button, red 1 NC unmarked marking
      Contact operationSlow-break
      Complementary
      AC control voltage 50 HZ120…600 V
      Cable entry1 knock-out for cable entry 0…14 mm
      2 knock-outs for Pg 13 cable gland and ISO M20 0…12 mm
      AC control voltage 60 HZ120…600 V
      Product weight0.194 kg
      DC control voltage125…600 V
      Resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
      Number of command positions1
      Number of indicator lights0
      Number of push buttons0
      Positive openingWith conforming to IEC 60947-5-1 appendix K
      Operating travel1.5 mm (NC changing electrical state)
      2.6 mm (NO changing electrical state)
      4.3 mm (total travel)
      Operating force44 N NC + NO changing electrical state
      Number of selector switches0
      Mechanical durability300000 cycles
      Connections – terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
      Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
      Number of key switches0
      Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
      Shape of screw headCross compatible with Philips no 1 screwdriver
      Cross compatible with pozidriv No 1 screwdriver
      Slotted compatible with flat Ø 4 mm screwdriver
      Slotted compatible with flat Ø 5.5 mm screwdriver
      Contacts materialSilver alloy (Ag/Ni)
      Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
      [Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
      Number of mushroom-shaped push-buttons1
      [Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
      [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
      [Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
      6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
      0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
      0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
      0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
      1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
      Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
      1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
      1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
      1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
      1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
      Emergency power offNo
      Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4
      Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4
      Number of contacts as normally closed contact1
      Number of contacts as normally open contact0
      Number of contacts as change-over contact0
      Housing materialPlastic
      Housing colourYellow
      colour of coverYellow
      Environment
      Protective treatmentTH
      Ambient air temperature for storage-40…70 °C
      Ambient air temperature for operation-40…70 °C
      Overvoltage categoryClass II conforming to IEC 60536
      IP degree of protectionIP66 conforming to IEC 60529
      IP67
      IP69
      IP69K
      NEMA degree of protectionNEMA 13
      NEMA 4X
      IK degree of protectionIK03 conforming to IEC 62262
      StandardsIEC 60204-1
      IEC 60947-1
      IEC 60947-5-4
      ISO 13850
      JIS C 4520
      IEC 60364-5-53
      IEC 60947-5-5
      UL 508
      CSA C22.2 No 14
      IEC 60947-5-1
      Vibration resistance5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
      Shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
      50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
      IP degree of protectionIP66/IP67/IP69/IP69K
      NEMA degree of protectionNEMA 4X/13
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height9.700 cm
      Package 1 Width7.000 cm
      Package 1 Length7.000 cm
      Package 1 Weight161.000 g
      Unit Type of Package 2S03
      Number of Units in Package 240
      Package 2 Height30.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight6.786 kg
      Unit Type of Package 3P06
      Number of Units in Package 3320
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight62.788 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      ZBZ58ZBZ1605ZBY9W2B330ZBY9121XB5AS8442XALK01H7
