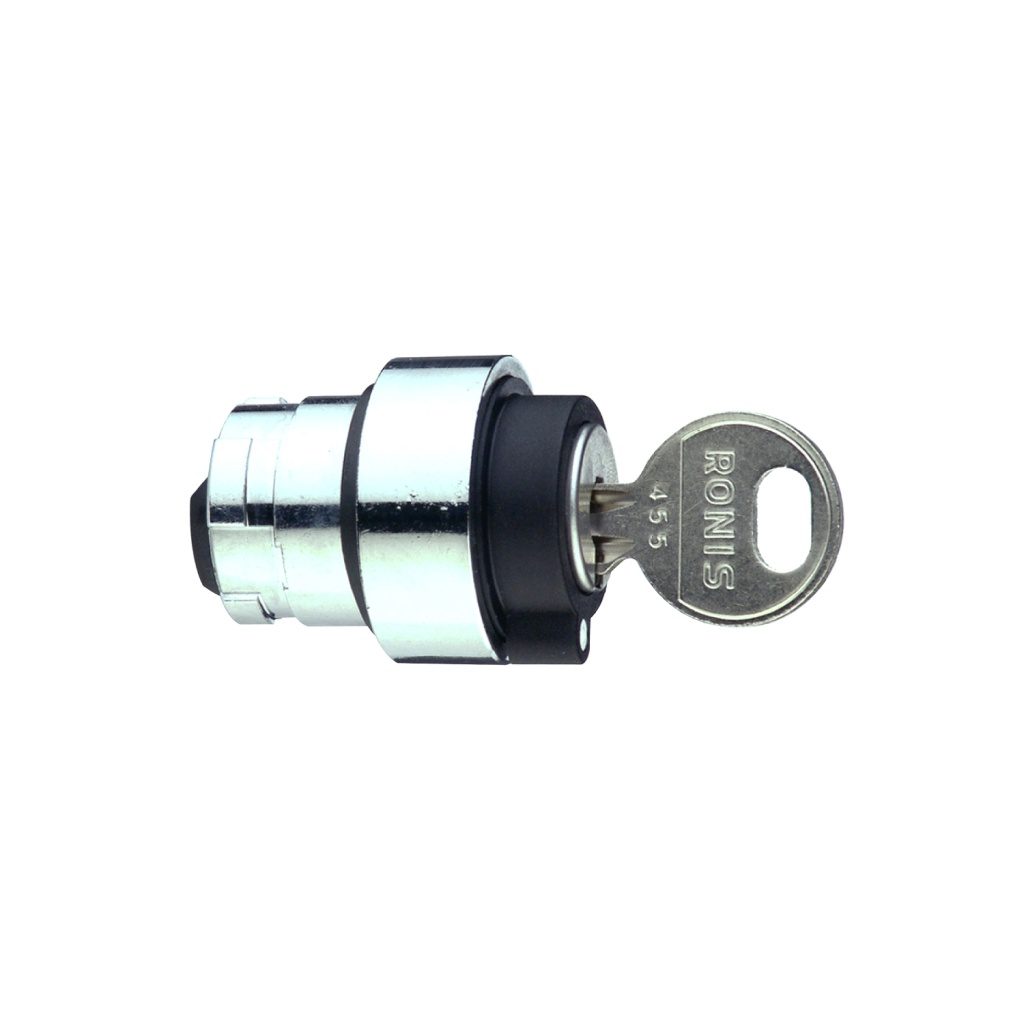

ZB2BG2C | key selector switch head – Ø22 mm – black – Schneider Electric
Original price was: ₹593.00.₹385.45Current price is: ₹385.45. Excl. GST
SKU:
ZB2BG2C

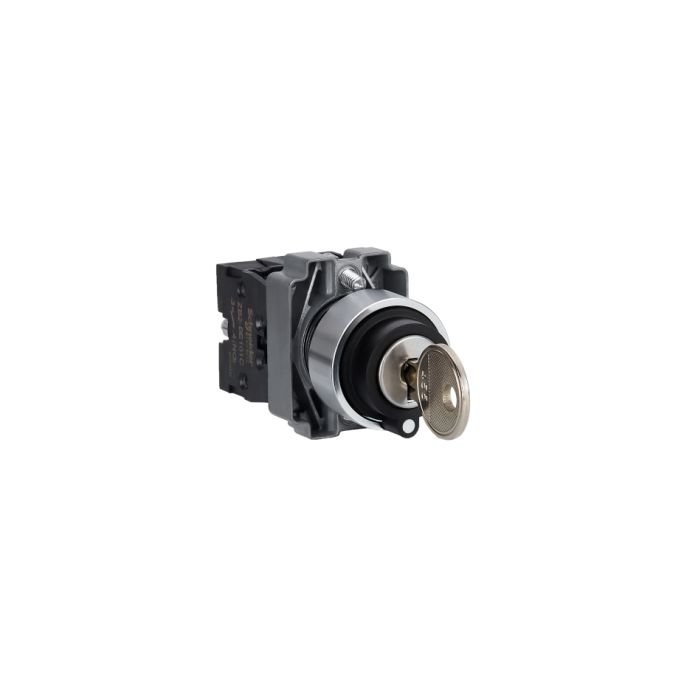

Sourced through authorised channels, the Schneider Electric XB2BG25C selector switch delivers dependable performance for everyday wiring and control. Key ratings include 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1, IP65. myelectric.in stocks the XB2BG25C | Selector switch 2 position 1 NO 1 NC left side pull out for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | XB2BG25C |
| Category | Selector Switch |
| Main | |
| Product or component type | Complete selector switch |
| Device presentation | Complete product |
| Device short name | XB2 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Operator position information | 2 positions |
| Complementary | |
| Fixing collar material | Zamak |
| CAD overall width | 30 mm |
| CAD overall height | 40 mm |
| CAD overall depth | 87 mm |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
| Product weight | 0.125 kg |
| Operating position | Any position |
| Device mounting | Fixing hole – diameter: 22.5 mm |
| Fixing center | >= 30 x 40 mm (panel) – thickness: 1…6 mm |
| Fixing mode | Fixing screw beneath head recommended torque: 0.8 N.m Fixing screw beneath head recommended torque: 1.0 N.m |
| Shape of signaling unit head | Round |
| Type of operator | stay put |
| Operator profile | Black key switch |
| Type of keylock | Key 455 |
| Key withdrawal position | Left |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Contacts usage | Standard contacts |
| Width | 40 mm |
| Height | 30 mm |
| Depth | 87 mm |
| Cap/operator or lens colour | Black |
| Product compatibility | ZB2..C |
| Mechanical durability | 1000000 cycles |
| Connections – terminals | Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.0 N.m |
| Shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material | Silver alloy (Ag/Ni) |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XB2 |
| Customizable | No |
| Operator profile | Key switch |
| Type of operator | Stay put |
| Environment | |
| Protective treatment | TC/TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| Standards | IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 GB/T 14048.1 GB/T 14048.5 |
| Product certifications | CCC CE |
| IP degree of protection | IP65 |
| IK degree of protection | IK06 |
| Positive opening | Without |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-circuit protection | 10 A gL fuse type gG conforming to IEC 60947-5-1 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 7 cm |
| Package 1 Weight | 133 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.305 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 600 |
| Package 3 Height | 90 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 94.6 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
ZB2BE101CZB2BG2CZB2BZ105C
