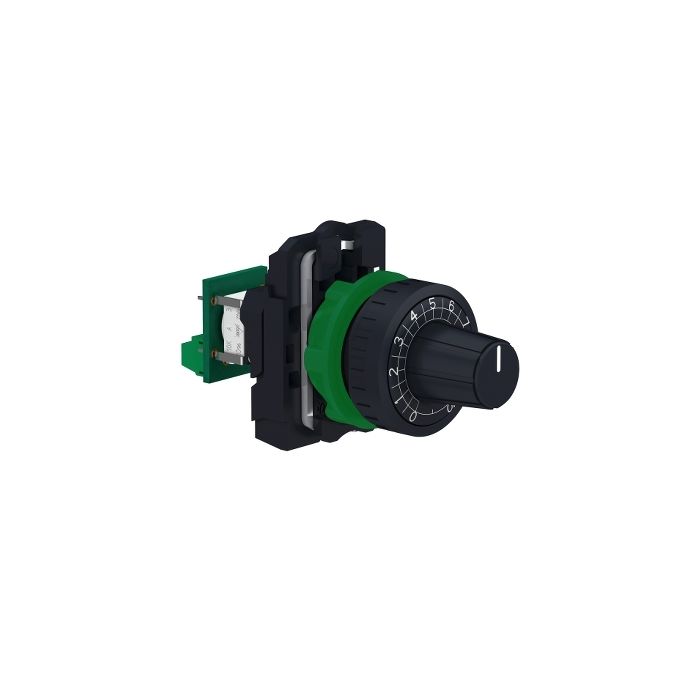

Sourced through authorised channels, the Schneider Electric XB5AD912R10K electrical component from the Harmony XB5 range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP66. myelectric.in stocks the XB5AD912R10K | Head and potentiometer R10K for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | XB5AD912R10K |
| Category | Electrical Component |
| Main | |
| Range of product | Harmony XB5 |
| Product or component type | Potentiometer |
| Device short name | XB5 |
| Head type | Standard |
| Device presentation | Complete product |
| Complementary | |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Product compatibility | Ø 6 mm shaft |
| Sale per indivisible quantity | 1 |
| CAD overall width | 30 mm |
| CAD overall height | 42 mm |
| CAD overall depth | 82 mm |
| Product weight | 0.048 kg |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14 UL 508 IEC 60947-1 |
| Product certifications | BV CSA UL listed |
| Shape of signaling unit head | Round |
| Operator profile | knurled knob, with (white) |
| [Us] rated supply voltage | <= 42 V DC <= 30 V AC |
| Rated power in W | 1 W at 70 °C |
| Precision of internal conversion resistor | +-10% |
| Potentiometer characteristic | Linear |
| Mechanical durability | 50000 cycles |
| Ohmic value | 10000 Ohm |
| Material | Cermet |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Main group | Potentiometer |
| Group of product | Potentiometer knurled knob |
| Colour of marking | White |
| Environment | |
| Enclosure Type | UL type 4X/13 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.200 cm |
| Package 1 Width | 5.600 cm |
| Package 1 Length | 8.400 cm |
| Package 1 Weight | 58.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.616 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
ZB5AZ905ZB5AD912ZB5AD922
