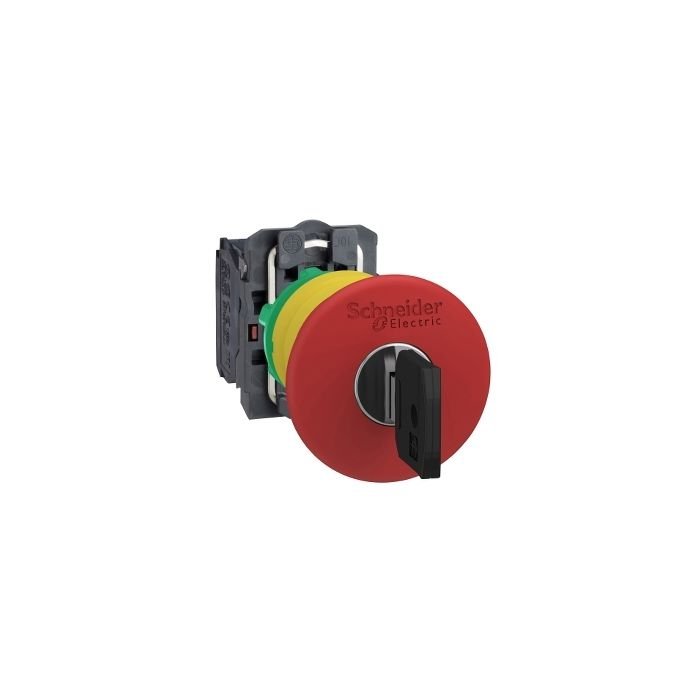

XB5AS9442 | D40 EMERGENCY STOP KR 455E – Schneider Electric
Product Description
The XB5AS9442 D40 Emergency Stop Push Button from Schneider Electric is a high-quality safety component designed for industrial applications.
This emergency stop device features a large, mushroom-head actuator for quick and reliable operation in critical situations.
Key Features:
- Type: Emergency stop push button with twist release mechanism
- Actuator: 40mm mushroom head (D40) in red with yellow background
- Contact Configuration: 1NO + 1NC (Normally Open + Normally Closed)
- Mounting: Panel mount with front mounting bezel
- Protection: IP65 rated for dust and water resistance
- Mechanical Life: 1,000,000 operations
- Electrical Rating: 10A at 250V AC / 5A at 30V DC
- Safety Compliance: Meets international safety standards including IEC 60947-5-1
Applications:
This emergency stop button is ideal for use in industrial control panels, machinery safety systems, conveyor controls,
and any application requiring an immediate shutdown capability for operator safety.
Package Includes:
- 1 x XB5AS9442 Emergency Stop Push Button
- Mounting hardware (as applicable)
Note: This safety component should be installed and maintained by qualified personnel only.
Technical Specifications
Model Number | XB5AS9442 |
---|---|
Brand | Schneider Electric |
Series | XB5 |
Product Type | Emergency Stop Push Button |
Actuator Type | Mushroom Head (40mm diameter) |
Color | Red with yellow background |
Contact Configuration | 1NO + 1NC |
IP Rating | IP65 |
Operating Voltage | Up to 250V AC / 30V DC |
