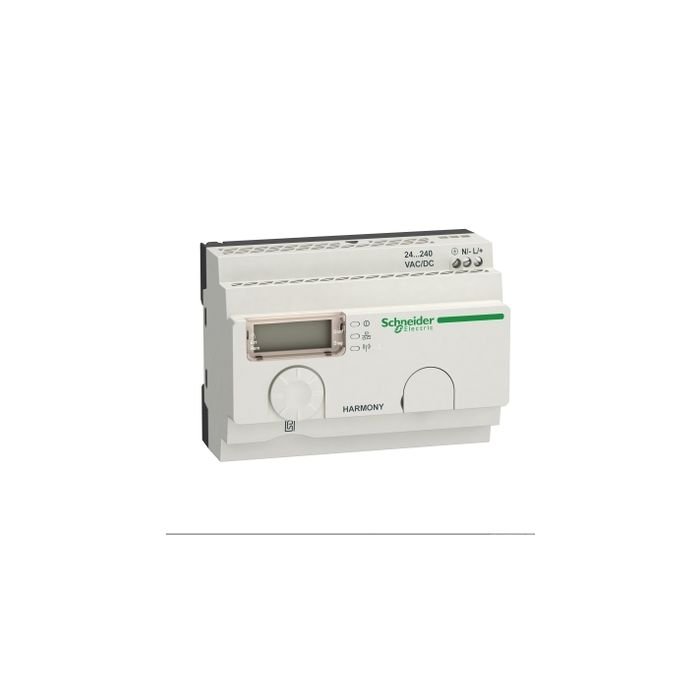

ZBRN32 | MODBUS SERIAL SPS TRANSCEIVER – Schneider Electric

Name: ZBRN32 | MODBUS SERIAL SPS TRANSCEIVER - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: ZBRN32
Price: 48574.52 INR
Availability: BackOrder

SKU: ZBRN32

Original price was: ₹56,482.00.Current price is: ₹48,574.52. Excl. GST

Dispatch By : 12 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric ZBRN32 electrical component from the Harmony range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP20 (casing). myelectric.in stocks the ZBRN32 | MODBUS SERIAL SPS TRANSCEIVER for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	ZBRN32
Category	Electrical Component
Main
Range of product	Harmony
Product or component type	Wireless access point
Device short name	ZBRN2
Product specific application	Interface to PLC
Function of module	Monostable
Complementary
Radio response time	< 30 ms after transmitter clicks
[Us] rated supply voltage	24…240 V AC/DC 50/60 Hz – 10…10 %
Immunity to microbreaks	10 ms
Maximum power consumption in W	4 W AC/DC
Breaking capacity	15 W
Breaking capacity	750 VA
Control circuit frequency	50…60 Hz +/- 10 %
Short-circuit protection	16 A GB2 circuit breaker
Rated short-duration power frequency withstand voltage	1.5 kV 50 Hz conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV
Surge withstand	1 kV differential mode conforming to IEC 61000-4-5 2 kV common mode conforming to IEC 61000-4-5
Width	122 mm
Height	90 mm
Depth	60 mm
Product weight	0.27 kg
Environment
Product certifications	GOST C-Tick UL CE CSA CCC
Directives	2006/95/EC – low voltage directive 1999/5/EC – R&TTE directive 2004/108/EC – electromagnetic compatibility
Standards	IEC 62311 IEC 60950-1 ETSI EN 300 328 CSA C22.2 No 14 ETSI EN 300 440-2 UL 508 IEC 61131-2
Marking	CE
Ambient air temperature for storage	-40…70 °C
Vibration resistance	+/- 3.5 mm (f = 5…14 Hz) conforming to IEC 60068-2-6 1 gn (f = 5…150 Hz) on panel mounting conforming to IEC 60068-2-6 2 gn (f = 8…150 Hz) on DIN rail conforming to IEC 60068-2-6
IP degree of protection	IP20 (casing) conforming to IEC 60529 IP20 (terminals)
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.500 cm
Package 1 Width	10.000 cm
Package 1 Length	13.500 cm
Package 1 Weight	315.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	10
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.635 kg
Unit Type of Package 3	P06
Number of Units in Package 3	160
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	63.108 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
