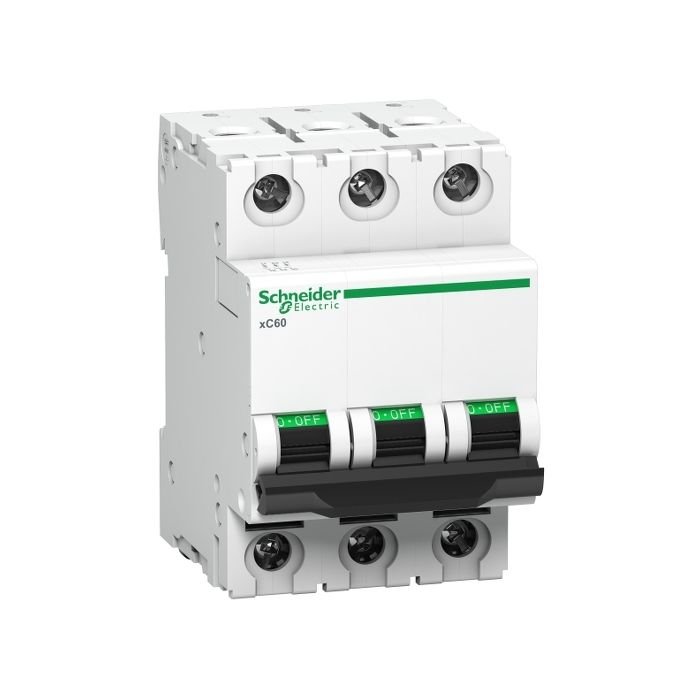

A9N3P50CIN | Acti9 xC60 3P C 50A MCB IS/IEC 60947-2 – Schneider Electric

Name: A9N3P50CIN | Acti9 xC60 3P C 50A MCB IS/IEC 60947-2 - Schneider Electric
Brand: Schneider Electric
SKU: A9N3P50CIN
Availability: BackOrder

SKU: A9N3P50CIN

Original price was: ₹5,251.00.Current price is: ₹1,837.85. Excl. GST

Dispatch By : 2 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-40%

A9N26960 | Voltage release MN 220-240Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26960

-39%

A9N26904 | Acti9 A9A iOF bottom wiring 0.1-6A aux – Schneider Electric

Excl. GST

SKU: A9N26904

A9N26907 | Acti9 A9N SD bottom wiring 0.1-6A aux – Schneider Electric

Excl. GST

SKU: A9N26907

A9N26923 | Acti 9 – auxiliary contact OFS 1 O/C for RCCB – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26923

-40%

A9N26946 | MX Shunt Trip MX plus 1 OF 220-415Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26946

-40%

A9N26948 | MX Shunt Trip MX plus 1 OF 24Vac dc – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26948

-27%

A9N26909 | Acti9 A9N OF/SD+OF top/bt wir 0.1-6A aux – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: A9N26909

The Schneider Electric A9N3P50CIN is a miniature circuit breaker (mcb) from the Acti9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 50 A, 415 V AC 50/60 Hz, 3P. Buy the A9N3P50CIN | Acti9 xC60 3P C 50A MCB IS/IEC 60947-2 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	A9N3P50CIN
Category	Miniature Circuit Breaker (MCB)
Main
Device application	Distribution
Range of product	Acti9
Range	Acti9
Product name	XC60
Product or component type	Miniature circuit-breaker
Device short name	xC60
Poles description	3P
Number of protected poles	3
[In] rated current	50 A
Network type	AC DC
Trip unit technology	Thermal-magnetic
Curve code	C
Utilisation category	Category A conforming to IS/IEC 60947-2
Suitability for isolation	Yes conforming to IS/IEC 60947-2
Complementary
Network frequency	50/60 Hz
[Ue] rated operational voltage	415 V AC 50/60 Hz 100…125 V DC
Magnetic tripping limit	8 x In +/- 20 %
Breaking capacity	10 kA Inc at 415 V AC 50/60 Hz conforming to IS/IEC 60947-2 15 kA Icu at 100…125 V DC conforming to IS/IEC 60947-2
[Ics] rated service breaking capacity	7.5 kA conforming to IS/IEC 60947-2 – 415 V AC 50/60 Hz 15 kA conforming to IS/IEC 60947-2 – 100…125 V DC
Limitation class	3 conforming to IS/IEC 60947-2
[Ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IS/IEC 60947-2
[Uimp] rated impulse withstand voltage	4 kV conforming to IS/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Local signalling	ON/OFF indication
Mounting mode	Clip-on
Mounting support	35 mm DIN rail
Comb busbar and distribution block compatibility	Top: YES
9 mm pitches	6
Height	85 mm
Width	54 mm
Depth	77.5 mm
Product weight	0.31 kg
Colour	White
Mechanical durability	20000 cycles
Electrical durability	10000 cycles
Connections – terminals	Biconnect (bottom) Tunnel type terminals (bottom) 25 mm² flexible Tunnel type terminals (bottom) 35 mm² rigid
Wire stripping length	13 mm for top or bottom connection
Tightening torque	3.5 N.m
Earth-leakage protection	Separate block
Product compatibility	C60 accessories C60 auxiliary
Overvoltage category	IV
Environment
Standards	IS/IEC 60947-2
IP degree of protection	IP20
Pollution degree	3
Tropicalisation	2 conforming to IEC 60068-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-30…70 °C
Ambient air temperature for storage	-40…85 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.1 cm
Package 1 Width	5.35 cm
Package 1 Length	7.4 cm
Package 1 Weight	390 g
Unit Type of Package 2	BB1
Number of Units in Package 2	4
Package 2 Height	8 cm
Package 2 Width	9 cm
Package 2 Length	23.8 cm
Package 2 Weight	1.622 kg
Unit Type of Package 3	CAR
Number of Units in Package 3	48
Package 3 Height	27 cm
Package 3 Width	30 cm
Package 3 Length	35 cm
Package 3 Weight	20.064 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

50 A rated current — provides overload and short-circuit protection for the connected circuit.
3 Poles — protects a three-phase circuit without neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Visi-Trip indicator — handle snaps to a clearly visible mid-position on trip, allowing instant fault identification without opening the panel door.
Compatible with Acti9 comb busbar (1P, 2P, 3P, 3P+N) — parallel wiring of multiple MCBs without individual cables, cutting panel wiring time significantly.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the A9N3P50CIN protect at its rated 50 A?

A: The A9N3P50CIN is rated to carry and protect circuits up to 50 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 50 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: Is the A9N3P50CIN suitable for both single-phase and three-phase systems?

A: The A9N3P50CIN with 3 Poles can protect three-phase circuits. Each pole simultaneously interrupts one phase — ensuring all phases are de-energised on a fault.

Q: Can the A9N3P50CIN be DIN rail mounted in any standard distribution board?

A: Yes. This Schneider Electric MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.

Q: What happens when the A9N3P50CIN trips — how do I identify and reset it?

A: When the A9N3P50CIN trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.

Q: Which Schneider Electric accessories are compatible with the A9N3P50CIN?

A: The Schneider Electric Acti9 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the A9N3P50CIN.
