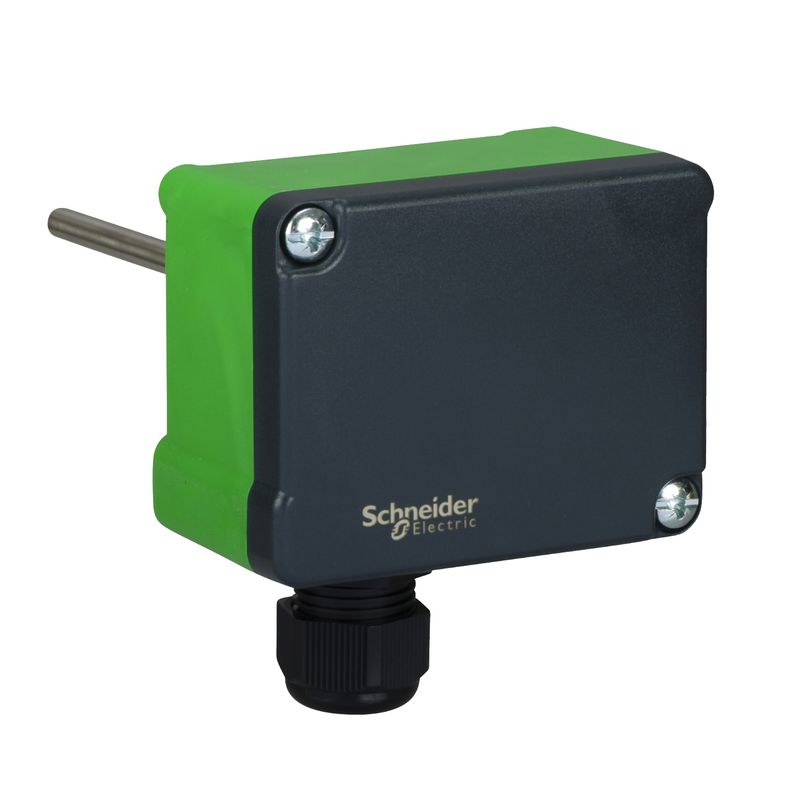

006920241 | SensTempPipe STP300-100 0/100 – Schneider Electric
Original price was: ₹20,296.00.₹11,771.68Current price is: ₹11,771.68. Excl. GST
Dispatch By : 10 Weeks
Dispatch By : 10 Weeks
10
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Specifications
| Main | |
|---|---|
| Range of product | STP300 |
| Product or component type | Temperature sensor |
| Type of measurement | Temperature |
| Device application | Pipe immersion |
| Analogue output type | 4…20 mA |
| IP degree of protection | IP65 |
| location | Plant room |
| Mounting support | Pipe |
| Depth | 45 mm |
| Height | 85 mm |
| Net weight | 0.107 kg |
| Width | 65 mm |
| Output type | Analog output |
| Standards | EN 50082-1 EN 50081-1 |
| Colour | Black and green |
| Ambient air temperature for operation | -10…150 °C |
| Sensor type | Temperature transmitter temperature |
| Targeted region | Asia Pacific. Europe |
| Complementary | |
| Type of installation | Immersion |
| Material | PA (polyamide): connection box Stainless steel: immersion tube |
| Time constant | 19000 ms brass PN 16 with contact paste 20000 ms stainless steel PN 25 with contact paste 23000 ms brass PN 16 without contact paste 24000 ms stainless steel PN 25 without contact paste |
| [Us] rated supply voltage | 15…36 V AC |
| Connections – terminals | Wire (24 AWG…18 AWG) |
| Length | 100 mm |
| Diameter | 6 mm probe: |
| Number of cables | 1 <1 m |
| Measurement accuracy | 0…25 °C +/- 0.3 °C |
| Environment | |
| Product certifications | CE |
| Measurement range | 0…100 °C |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.6 cm |
| Package 1 Width | 9.4 cm |
| Package 1 Length | 7.2 cm |
| Package 1 Weight | 187.99 g |
| Contractual warranty | |
| Warranty (in months) | 24 |
