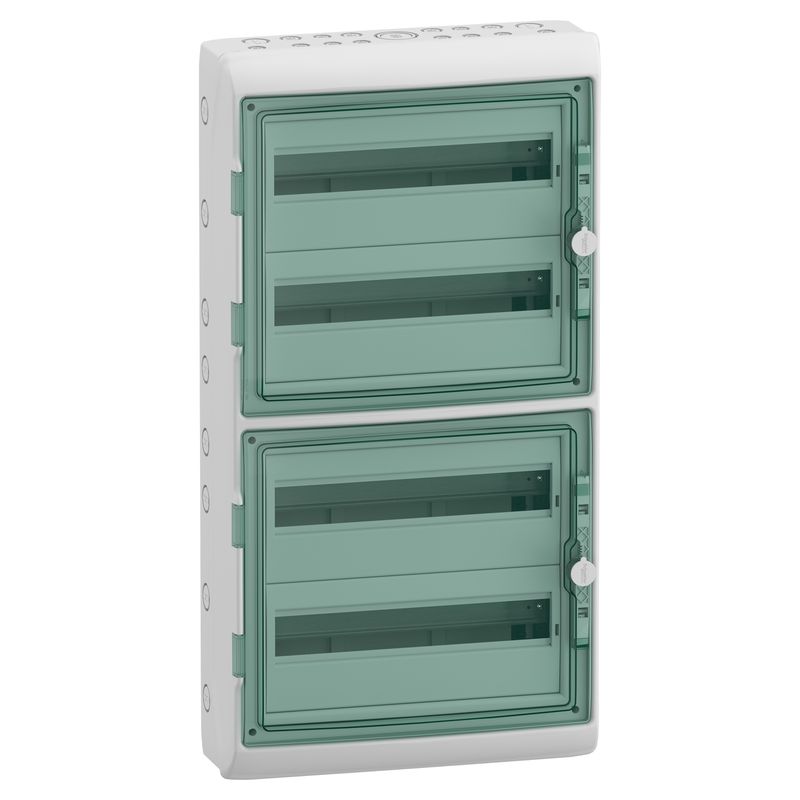

13437 | Mureva Enclosure IP65 4x18M E/N TB – Schneider Electric

Name: 13437 - Kaedra - for modular device - 4 x 18 modules - 4 terminal blocks | Schneider Electric
Brand: Schneider Electric
SKU: 13437
Price: 25322.76 INR
Availability: BackOrder

SKU: 13437

Original price was: ₹46,894.00.Current price is: ₹25,322.76. Excl. GST

Dispatch By : 14 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	Mureva
Product name	Mureva Enclosure
Product or component type	Weatherproof enclosure
enclosure type	Enclosure for modular device
Mounting plate description	Without mounting plate
Complementary
Enclosure mounting	Surface
9 mm pitches	36
Number of 18 mm modules per row	18
Total number of 18 mm modules	72
Number of horizontal rows	4
Electrical insulation class	Class II Double insulation
Provided equipment	4 marking kit 4 wiring strap 2 terminal block support 4 terminal block 32 holes
Type of front cover	Reversible Transparent
Power dissipation in W	89 W
[In] rated current	160 A
Type of rail	DIN
Number of pre-cutouts PG ISO	17
Number of terminal blocks	4 earth / neutral (screw connection) with 32 outgoers
Distribution block outgoers	64 x 10 mm² 64 x 16 mm²
Locking options description	Optional keylock
Enclosure material	Self-extinguishing polymer
Width	448 mm
Height	842 mm
Depth	160 mm
Internal depth	88 mm
Colour	Door: transparent green Enclosure: light grey (RAL 7035)
Environment
Standards	IEC 60670-1 IEC 60670-24 EN 50262 IEC 60695-2-1
Fire resistance	650 °C conforming to IEC 60695-2-1
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK09 conforming to EN 50102
Environmental characteristics (UV)	UV resistant: class 3 conforming to ISO 4582:2010 Ultraviolet degradation test conforming to ISO 4892-2:2013
Overvoltage category	II
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.000 cm
Package 1 Width	47.000 cm
Package 1 Length	85.000 cm
Package 1 Weight	8.010 kg
Unit Type of Package 2	P12
Number of Units in Package 2	11
Package 2 Height	80.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	100.110 kg
Contractual warranty
Warranty (in months)	18
